2YThe Series Double Cylinder Automatic Static Penetration Tester is an in-situ testing tool for the foundation soil in construction, hydraulic engineering, electricity, transportation, port construction, and scientific research and design in colleges and universities. The machine uses a hydraulic transmission mechanism to uniformly press the electrical probe into the ground at a constant speed, thereby recording the penetration resistance of the soil layers below the probe. It is suitable for engineering surveys, line exploration, mountainous areas, terraced fields, and marshlands. It is appropriate for testing in soil layers such as soft soil, old clay, loess, and sandy soil.

The machine features compact size, sturdy structure, high power, stable transmission, and easy operation. 1. Structural Forms: Bulk, hand-pulled towable, combined trailer, four-wheel self-propelled, and tracked self-propelled. 2. Working Modes: intermittent automatic insertion or extraction. 3. Pincer Types: top-pressure, and pincer.

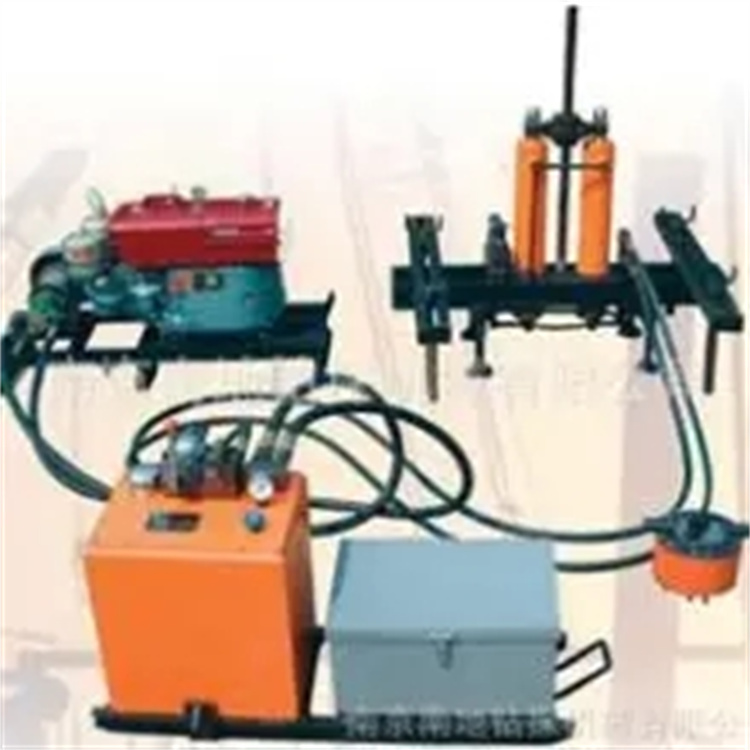

The static probe machine is a device used for in-situ testing in engineering geological surveys. It is primarily composed of a pump station, penetration machine, anchoring machine, anchoring mechanism, probe, probe rod, and recording instruments. It employs hydraulic transmission with plate-type connections for hydraulic components. It boasts advantages such as a small size, minimal external leakage, and a low failure rate. The penetration machine features a dual-cylinder structure with low working intensity. It is equipped with a differential oil circuit, which significantly improves work efficiency during unloaded rise and light load extraction. The chuck is manual, using clamping jaws for reliable clamping and easy operation. The power source is an electric motor, with its electrical control centrally located in a distribution box on the pump station. It is integrated, featuring functions such as reversing, power indication, and overload and short-circuit protection. The machine can be optionally equipped with a diesel engine for power, suitable for construction sites without power supply. The machine is easily disassembled, with individual components being lightweight, and it comes with a handcart for short-distance transportation at the construction site, providing flexible and mobile handling, and easy installation.

· Key Technical Parameters
