Product Introduction:

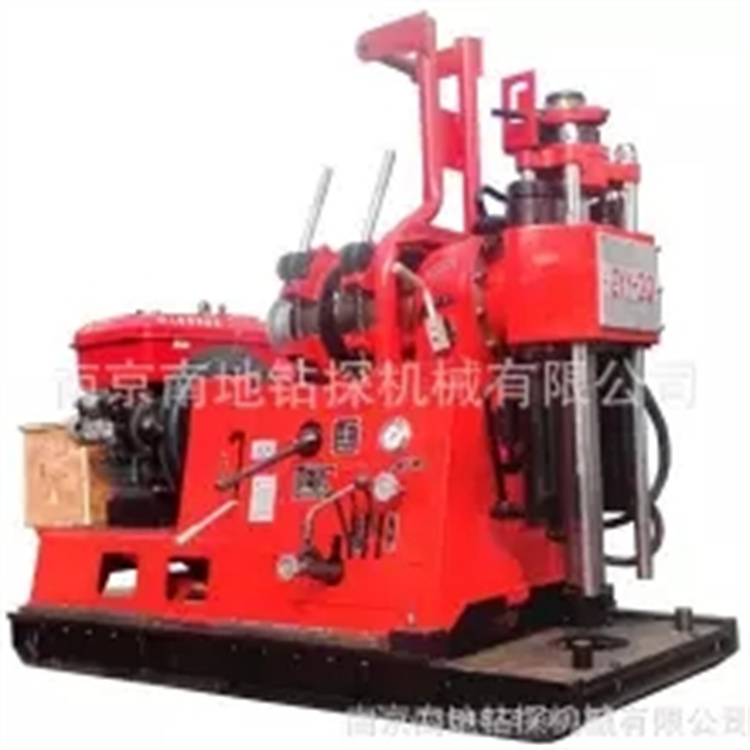

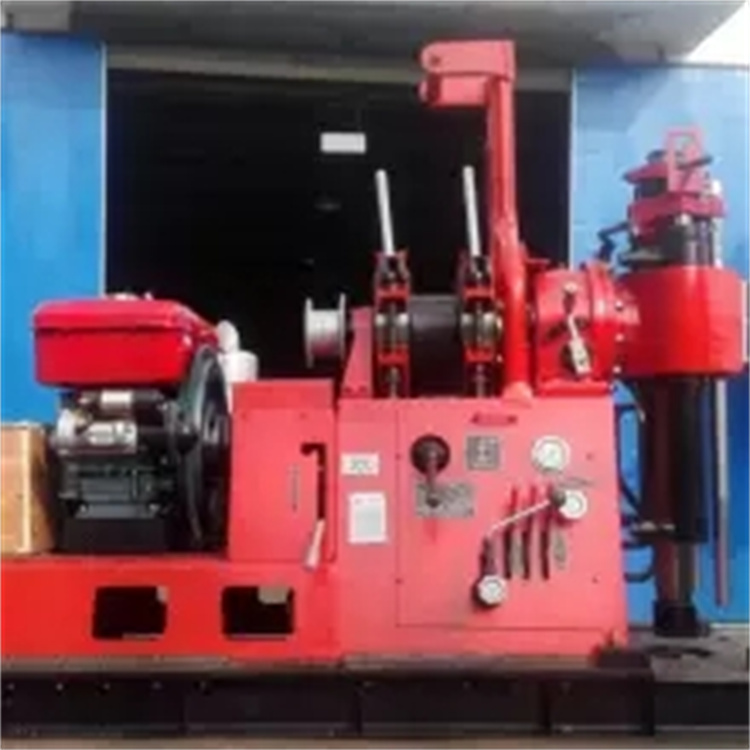

GXY-2QDrilling rigs are suitable for geological survey work in industrial and civil construction, as well as for projects such as highways, railways, bridge foundations, dam sites, water conservancy, wells, prospecting, etc. They are also used for shallow oil and gas extraction, ventilation and drainage in mine tunnels, and construction of large-diameter pile holes. They are ideal for general exploration of solid mineral deposits and for inspection holes in various concrete structures for blast holes. Depending on the strata, composite blades, diamonds, hard alloys, and helical bits can be chosen for drilling. They offer advantages such as compact structure, light weight, small size, and good disassembly, making them one of the rare ideal equipment that meets market demand.
Key Features:
1Selected a reasonably suitable speed range with eight speed levels, centralized variable speed, interlocked for safety, high low-speed torque, suitable for both engineering geological surveying and diamond core drilling.
2. Drilling rigs have high input power, with even greater torque at low RPMs, offering strong drilling capabilities. They are suitable for large-diameter construction tasks such as drilling rig sampling, well drilling, and pile foundation work.
3. The drilling machine features two reverse speed gears for safe troubleshooting.
4. The indexer chuck utilizes a manual ball chuck, offering reliable clamping without damaging the active drill rod, allowing for continuous operation without stopping to change rods.
5Hydraulic feed, easy operation, drilling, low labor intensity.
6. Equipped with sufficient instruments for monitoring the bore condition, with fewer handles to operate and a more reasonable layout. The operation is flexible and reliable.
7. Equipped with dual-disc normally closed friction clutch, offering smooth engagement and disengagement, and easy operation and adjustment.
8. The upright through-hole is large, with a matching active drill rod of 53*Φ59mm, allowing for rod reversal without stopping the machine.
9. Equipped with front and rear moving hydraulic cylinders, the swivel moves backward by 465mm, greatly facilitating the operation of raising and lowering drilling tools.
10Compact structure, small size, light weight, easy to disassemble and transport, suitable for drilling work in hilly or mountainous areas.
Key Technical Parameters (Technical Specifications):
Basic Parameters | Drilling Depth: 250m; Drill Rod Diameter: Φ42mm, Φ50mm, Φ60mm; Borehole Inclination Angle: 0～360° Drilling machine dimensions: 1860×780×1480mm; Drilling machine weight (excluding power): 800kg | |
Reverser | Active Drill Rod: Six-sided grooved 53*Φ59*4500mm, main shaft holder type: manual ball stopper The vertical shaft is matched with a Y160L-15-4 motor, 15kW power, 1460r/min speed. Forward low speed: 43; 74; 117; 162 rpm; Forward high speed: 203; 352; 556; 768 rpm Reverse Speed: 33; 159 rpm Mounted with a 2100 RPM shaft, the diesel engine features a power of 17.6 kW and a speed of 1800 rpm. Forward low speed: 53; 92; 145; 200 rpm; Forward high speed: 250; 435; 668; 947 rpm Reversing Speed: 41; 196 r/min Spindle Stroke: 500mm; Spindle Torque: 2500 N·m; Spindle Pull-Out Force: 49 KN; Spindle Pressing Force: 36 KN | |
Winch | Lifting Capacity (Low-speed Single Rope): 25 kN; Drum Speed: 34; 59; 94; 129 r/min Wire Rope Hoisting Speed (Single Rope, Single Layer): 0.38; 0.66; 1.05; 1.44 m/s Wire Rope Specifications: Φ12.5mm, Spool Capacity: 30m | |
Portable Device | Travel of mobile cylinder: 465mm, Distance from drill machine to hole opening: 330mm | |
Power Configuration | Y160L-15-4Electric Motor | 15Kw power, 1460r/min speed |
2100Diesel Engine | 17.6KW power, 1800rpm speed | |
1115Diesel Engine | 16.2KW power, 2200 rpm speed | |
Oil Pump Specifications | CB-FC16-FLType, Speed: 500-2500 rpm, Displacement: 16 ml/r | |
Drilling rig base and drilling tower：You can choose from our company's four-wheel trailer-mounted base and H-shaped drilling derrick, crawler base and H-shaped drilling derrick, crawler base and hydraulic lifting drilling derrick, or custom-made according to customer requirements.
Note:.This drilling rig is powered by a standard diesel engine.Also available with an electric motor.To be specified by the customer at the time of order.
