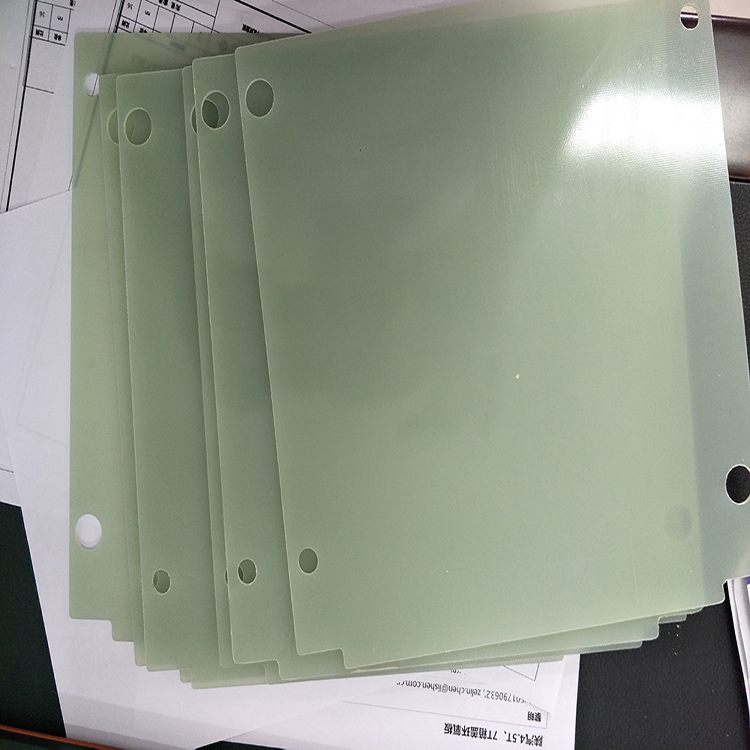

FR4Epoxy board machined parts
Material:FR4
Color: Teal Yellow
Material Source: Self-manufactured Sheets Self-carving machineCNCProcessed
Insulation/Thermal Resistance Rating:FGrade155Degree Short-term Temperature Resistance180Degree
Flame Retardant Rating:94-V0
Processing Method: As Per Drawing Rapid response and shipping support
Insulation Treatment: ImpregnationFGrade/HGrade Insulating Paint, dried for film protection
Standard Thickness:0.3，0.5，1, 1.5，2, 2.5， 3, 5, 6, 8, 10, 15, 20, 25mm( customizable )
Performance Parameters: Refer to Test Report
Primary Application Fields: Insulation, temperature resistance, support, and flame-retardant requirements for electrical equipment such as switch cabinets, transformers, motors, variable frequency devices, power electronics, printing, and water and electricity.
