Key Product Features
This product is equipped with a quick-drying desiccant core. It has fast dehumidification, no noise, no dripping, energy-saving, and fully automatic operation.
2. The equipment features an RS485 communication interface and includes an RS485 to USB converter. It can be directly connected to a PC for real-time reading, saving, and printing of temperature and humidity data. The interface is intuitive and easy to use.If multiple units are connected, and multiple cabinets are串联ed together with a PC computer, the relevant data of the cabinets in the network can be read.
3. Cabinet Material: 1.0mm cold-rolled steel plate, cabinet made with laser cutting, automatic punch press, and CNC sheet metal equipment, high manufacturing precision, and good cabinet airtightness. Cabinet surface treated with foreign resin, anti-static powder coating. Fully automatic powder coating line application. Good appearance quality.
4. Utilizing a high-precision Honeywell humidity sensor with ±2%RH accuracy. Module design, with high precision and stability.
5. The humidity controller features an internal module design to prevent contact with terminals.Hazardous, safe and reliable.
6. Temperature and Humidity Control & Display: High-precision LED full-screen digital display. Temperature display: 0℃～99℃, accuracy ±1℃. Humidity display: 0%～99%RH, accuracy ±3%RH. Stable display, long service life.
7. Microcomputer fully automatic operation, no need for human supervision. No drainage.
8. The door is made of 5mm explosion-proof reinforced tempered glass.
9. The entire product features modular design and error-proofing, making it easy to troubleshoot. Customers can easily resolve issues over the phone without affecting the normal operation of the equipment.
10. Network Functionality:
1) Humidity-proof boxes and cabinets connected via RS485 networking.
2) The moisture-proof box is connected to the PC via RS485 to USB on the PC side.
3) One computer can connect to 20 moisture-proof boxes.
4) Collect and record the temperature and humidity data of each terminal within the set frequency (starting from 20 seconds) during the specified sampling period.
5) Settable: Department of equipment, equipment number, humidity alarm value, sampling frequency.
6) Display the current temperature and humidity values of the equipment. Over-limit alarms include desktop software alerts and audio-visual alarm devices.
7) View the historical temperature and humidity data, curves, and data beyond the limits.
Software interface diagram display
Selection Configuration:
1. LED lighting inside the box
Over-temperature and over-humidity alarm
3. Smart Storage and Retrieval Product Features
4. Fast Dehumidification and Nitrogen Filling Function
5. Optional stainless steel for the case and shelves
6. Accept Size Customization
Please provide the Chinese content to be translated. Numbers | Product Name | Moisture-proof box with communication interface | |
| Model | NMR161 | NMR161B | |
| Content Volume | 160L | ||
| Dehumidification Range (tested under no-load conditions) | 20％～60％RH | 1％～20％RH | |
| External Dimensions: W*D*H | W450*D450*H1010 | ||
| Internal Dimensions: W*D*H | W405*D420*H840 | ||
| Communication Interface | RS485 | ||
| Control Panel | LED Digital Control, Genuine U.S. Brand Honeywell Sensors | ||
| Door | 5mm explosion-proof reinforced tempered glass | ||
| Shelf panel | Standard steel adjustable shelf panels, 3 pieces included (shelves can be positioned and quantity can be added), each capable of supporting 50kg. | ||
| Overall antistatic | Static Dissipation Factor: 106-108Grounding chain | ||
| caster wheel | 4" casters, 2 with brakes and swivel. | ||
| Power Supply | 220V/AC/50Hz, Average Power: 15W | ||
| Product Safety and Maintainability | The entire product is designed with modular construction and error-proofing features, making it easy to troubleshoot. Customers can easily resolve issues over the phone without affecting the normal operation of the equipment. | ||
NargonNaguang Communication InterfaceMoisture-Proof Box Specifications Sheet:
| Volume L | Medium humidity typeNumber 20%-60%RH Can be set | Low Humidity Model 1%-20%RH Fully Automatic | Dimensions: mm W*D*H Dimensions: (Width x Depth x Height) | Internal dimensions mm W*D*H (Width x Depth x Height) | Shelf Panel Pieces | Door structure |
160L | NMR161 | NMR161B | W450*D450*H1010 | W405*D420*H840 | 3 | A single door |
240L | NMR242 | NMR242B | W600*D450*H1250 | W555*D420*H1080 | 3 | Two-panel up-and-down swinging doors |
320L | NMR322 | NMR322B | W900*D450*H1010 | W855*D420*H840 | 3 | Two swinging doors, left and right opening |
450L | NMR452 | NMR452B | W900*D600*H1010 | W855*D570*H840 | 3 | Two-panel swing doors facing left and right |
540L | NMR542 | NMR542B | W600*D700*H1485 | W555*D650*H1315 | 3 | Two-panel up-and-down swinging doors |
730L | NMR732 | NMR732B | W600*D700*H1830 | W555*D650*H1660 | 5 | Two-panel swing doors for order |
730L | NMR733 | NMR733B | W600*D700*H1830 | W555*D650*H1660 | 5 | Three double swinging doors |
880L | NMR884 | NMR884B | W900*D600*H1860 | W855*D550*H1680 | 5 | Four swing doors opening in all directions (up, down, left, right) |
1430L | NMR1434 | NMR1434B | W1200*D700*H1830 | W1155*D650*H1660 | 5 | Four-panel swing doors opening in all directions (up, down, left, right) |
1430L | NMR1436 | NMR1436B | W1200*D700*H1830 | W1155*D650*H1660 | 5 | 6 swinging doors, opening up and down, left and right |

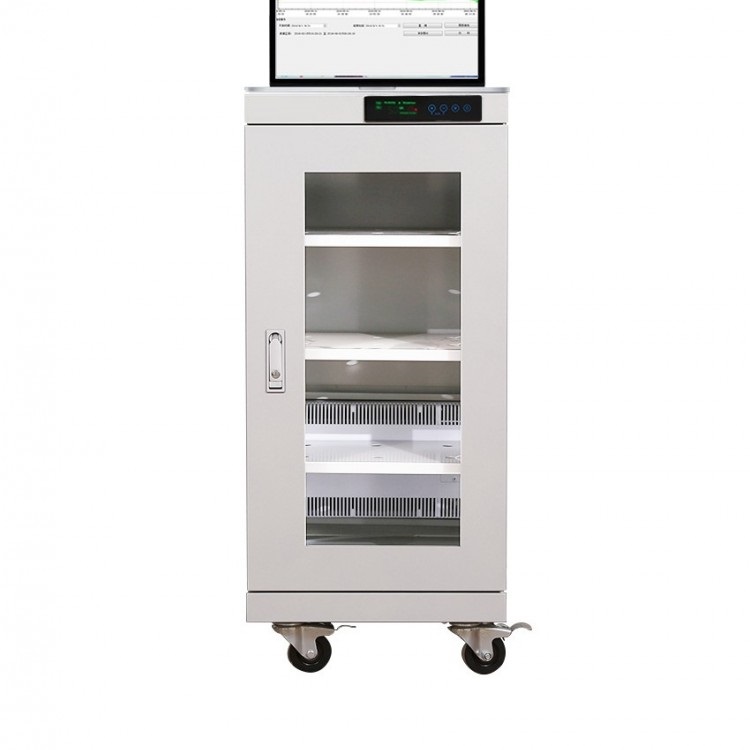

NMR161ProductPhysical GoodsImage
