I. Product Technical Features:

Product Name: Fully Automatic Self-Made Nitrogen Generator Cabinet

Model: NCA884

Color: Grayish white

Dimensions: W1100 * D600 * H1860

Internal Dimensions: W855*D550*H1680

Standard steel adjustable shelves: 5 pieces included (shelf position can be adjusted, quantity can be added) each holding up to 50kg.

Volume: 880L

Ambient Temperature: 25～50℃

Air intake temperature, pressure ≤ 20°C

Inlet Pressure: Greater than 0.7 MPa

Discharge Volume: 0.48 cubic meters/hour

Nitrogen Purity: 95~99.5%

Humidity Control Range: 1%-60%RH

Temperature: Inside Box Temperature

Accuracy: Humidity: ±3%RH, Temperature: ±1℃

Power: 110V/220V, 50Hz/60Hz auto-adaptive

Average Power: 50W

Humidity and Temperature Control: Equipped with a 4.3-inch computer touch screen for control. Offers control over humidity settings, capable of regulating air compressors and water removal filtration systems. Features dual flow control to save nitrogen and high precision.

Static Dissipation Factor: 10⁶-10⁹

High purity nitrogen, compact design, using foreign components. Reliable product quality.An internally installed high-purity nitrogen generator, utilizing commonly available compressed air in the enterprise to produce high-purity and clean nitrogen.Incorporating the latest nitrogen production technology and components, the design is simple with minimal parts, featuring low operating costs and a long service life. It operates automatically and requires no maintenance, eliminating the need for external nitrogen supply. Achieves nitrogen conservation objectives.No longer need to rely on expensive, dangerous, and inconvenient nitrogen cylinders. The compact design features excellent cabinet sealing, ensuring safety, free of phthalates, and free of organic vapors. The fully automatic self-made nitrogen gas cabinet, with its self-made nitrogen system, has minimal nitrogen pressure loss, low energy consumption, simple operation, and can operate continuously and stably. It allows for adjustable nitrogen concentration and flow rate as needed, offering convenience, speed, energy saving, environmental protection, and cost reduction in operation. It caters to users without a nitrogen source, making it easy to utilize nitrogen. (The NCA self-made nitrogen gas cabinet requires an air compressor for use.)

TwoOther technical features

1. Cabinet Material: 1.0mm thick cold-rolled steel plate, the cabinet is cut using laser technology, and produced with automatic punch presses and CNC sheet metal equipment, ensuring high manufacturing precision and excellent cabinet sealing. The cabinet surface is coated with foreign resin, electrostatic-proof powder coating. The cabinet is powder coated on an automatic powder coating line, resulting in good appearance quality.

2. UtilizeUSAOriginal brand Honeywell humidity sensor with error less than ±2%RH, high precision and stability, modular design.

3. The humidity controller features an internal module design to prevent contact terminal hazards, ensuring safety and reliability.

4. Temperature and Humidity Control & Display: High-precision microcomputer screen display. Temperature display: -9℃～99℃, accuracy ±1℃. Humidity display: 0%～99%RH, accuracy ±3%RH. Stable display, long service life.

5. Microcomputer full automatic operation, no need for human supervision.

6. The door is made of 5mm explosion-proof strengthened tempered glass.

7. The entire product features modular design and error-proofing, making troubleshooting easy. Customers can self-resolve issues over the phone without affecting normal equipment operation.

Section 3: Optional Accessories

Stainless Steel Enclosure

Data Recorder

Nitrogen Purity Tester

4. Overlimit Humidity Audio-Visual Alarm

Self-manufactured Nitrogen Gas Cylinder Model and Specification Sheet:

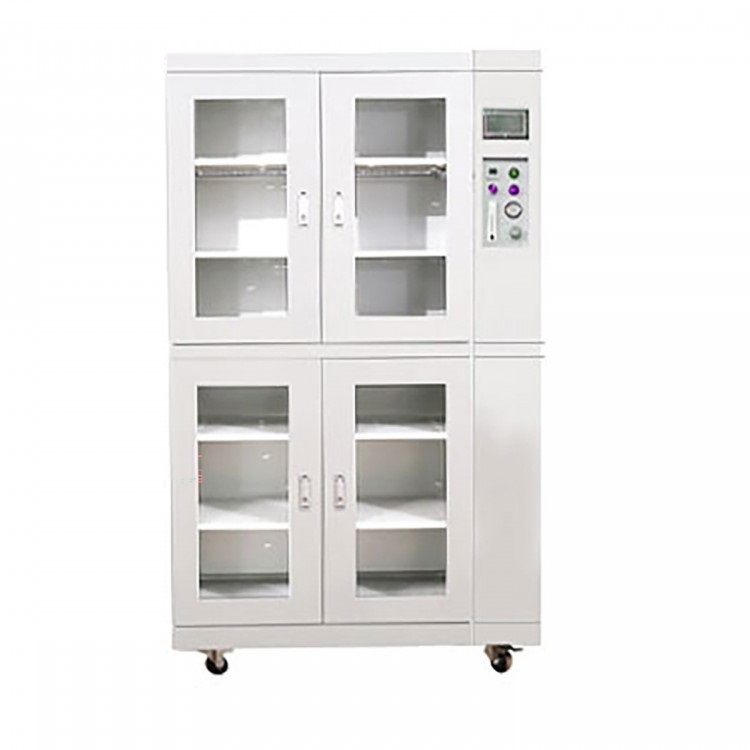

NCA884ProductPhysical ProductImage
