Explosion-proof analytical booth
Analysis cabins are designed for continuous automatic on-site measurement, analysis, and control of material composition and content in the production process. They meet the special environmental requirements of on-line analytical instrument systems, such as temperature, humidity, dust-proof, and explosion-proof, and are suitable for hazardous sites with flammable gases in industries like oil, refining, metallurgy, light industry, medicine, and biochemical.
Product Advantages
1.Ding Tai Kang Factory offersCustom-made according to customer requirements, the housing is made of steel plate or stainless steel welding, internally fitted with variousPower distributionItem or combination<Explosion-proof power(Lighting) Distribution boxes, explosion-proof electromagnetic starters, explosion-proof power maintenance boxes, explosion-proof maintenance power outlet boxes, etc., explosion-proof electrical appliances>。
2. Analysis of the cabinThe operating method can be customized for direct panel operation or door-open operation as per requirement.
3. Analysis CabinMeasurable and monitorable for various physical quantities in the circuit, such as parameters, pressure, and temperature, achieved through the incorporation of various explosion-proof electrical meters or secondary instruments.
4. Explosion-proof (electromagnetic starting) distribution units capable of handling high currents, with voltage reduction.
5. Allows for automatic or manual switching between dual or multi-way power inputs for circuit operation.
6. Select the appropriate explosion-proof electrical equipment combination based on the customer-provided electrical schematic and key technical parameters, determine the外形 dimensions of the distribution cabinet to meet the customer's on-site requirements.
Material Specifications for Analytical Cottage:

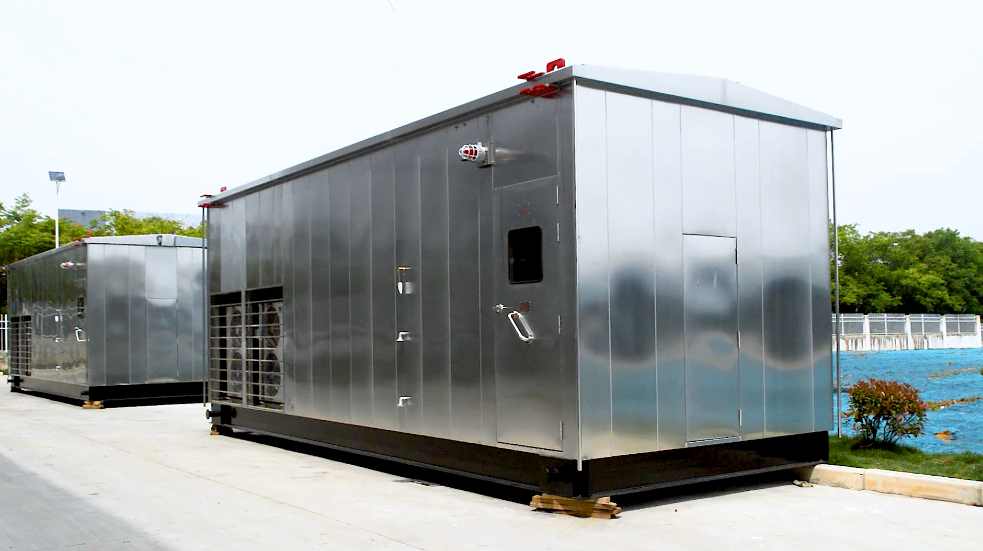

The frame, base, and roof of the analysis cabin are composed of metal components, constructed through welding of H-shaped steel, ensuring adequate strength and rigidity. This guarantees the stability of the analysis cabin during loading, lifting, shifting, and transportation.Product plate assembly structure，Exterior panels are made of stainless steel sheets.304SS, utilizing brushed stainless steel foil-coated sheet.OrGalvanized steel sheet, when using galvanized steel sheet, surface coating treatment is mandatory. The coating color should be white or international gray. Interior wall panels and ceilings are recommended to use1.5mm to 2.0mm stainless steel roof panels require waterproof design, which can be achieved through either a clip-type modular waterproof design or a flat welding waterproof design. Fire-retardant insulation materials (such as mineral wool) should be filled between the interior and exterior walls, as well as between the interior and exterior ceilings, with an insulation layer thickness of 70 to 75mm (3in). In extremely cold or hot climates, the thickness should be increased to 80 to 85mm. The floor is made of anti-slip metal plates, 4 to 6mm steel plate thickness, and materials can be patterned stainless steel plate, patterned galvanized steel plate, or hot-rolled steel plate. Surface coating treatment is required when using galvanized steel plate or hot-rolled plate.
