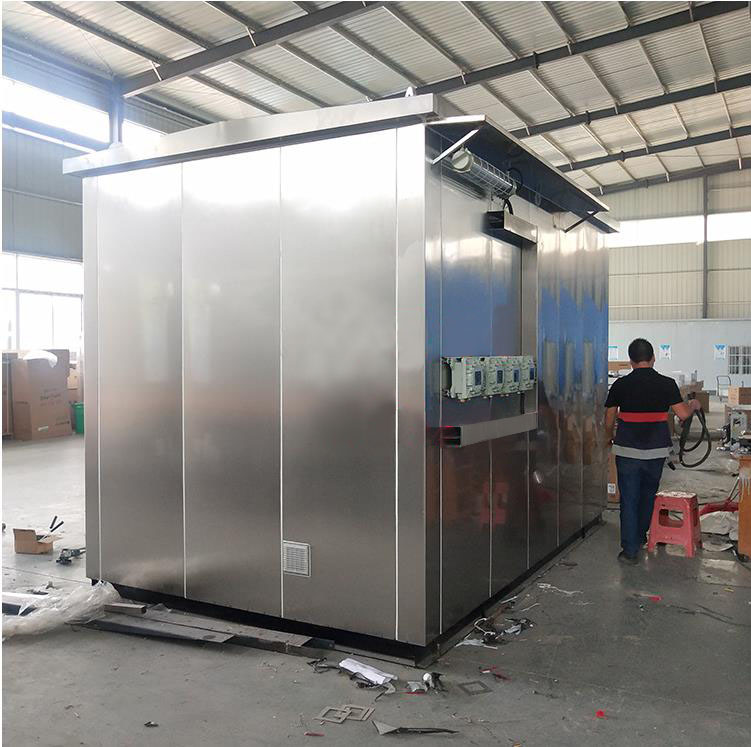

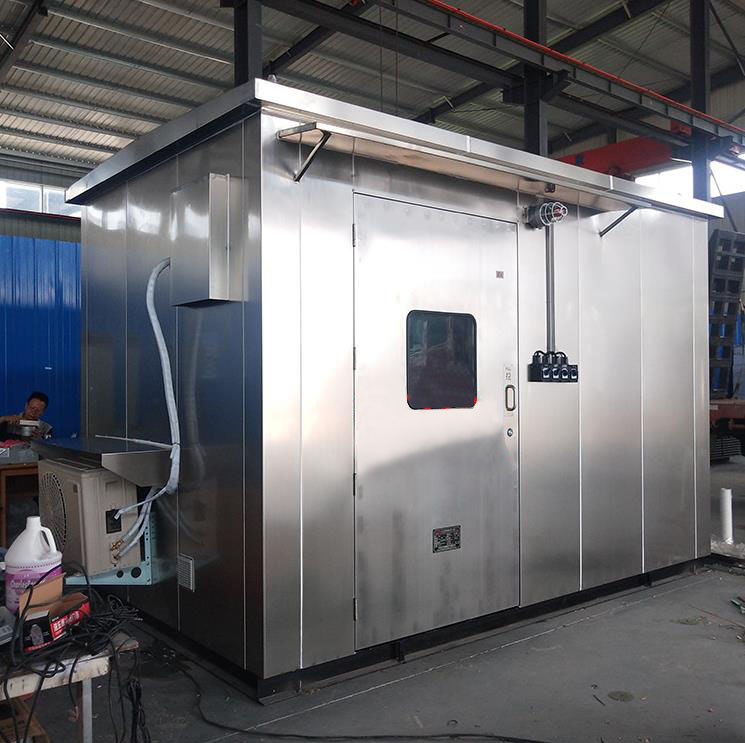

Explosion-proof analytical booth
Analytical cabins are designed for continuous, automatic on-site measurement, analysis, and control of material composition and content in the production process. They meet the special environmental requirements of on-line analytical instrument systems, such as temperature, humidity, dust-proof, and explosion-proof. They are suitable for hazardous areas with flammable gases in industries such as oil, refining, metallurgy, light industry, medicine, and biochemical.
Product Advantages
1.Ding Tai Kang Manufacturer offersCustomized according to customer requirements, the housing is made of steel plate or stainless steel welding, internally fitted with variousPower distributionArticles or Assemblies<Explosion-proof Power(Lighting) Distribution boxes, explosion-proof electromagnetic starters, explosion-proof maintenance boxes, explosion-proof power supply outlets, etc., explosion-proof electrical appliances>。
2. Analysis of the cabinOperation methods can be customized for direct panel operation or after door opening operation, as required.
3. Analysis CottageCapable of measuring and monitoring various physical quantities in the circuit, such as parameters, pressure, and temperature, through the use of various explosion-proof electrical meters or secondary instruments.
4. Explosion-proof (electromagnetic starting) distribution equipment capable of handling high currents, with voltage reduction.
5. Allows for automatic or manual switching between two or more power input lines for circuit operation.
6. Select the appropriate explosion-proof electrical assembly based on the customer-provided electrical schematic and main technical parameters, determine the外形 dimensions of the distribution cabinet, to meet the customer's on-site requirements.
Material Specifications for Analysis Cabin:
The analysis cabin's frame, base, and roof are made of metal components, welded from shaped steel, providing ample strength and rigidity. This ensures the cabin's stability during loading, lifting, shifting, and transportation.Product series modular assembly structure，Exterior panels are made of stainless steel sheets.304SS, stainless steel brushed film-coated sheetOrGalvanized Steel Sheet, when using galvanized steel sheet, surface painting treatment is mandatory; the paint color should be white or international gray, and interior wall panels and ceilings are recommended to use1.5mm to 2.0mm stainless steel roof panels must be rainproof designed, with options including interlocking assembly or flat welding rainproof designs. Between the interior and exterior walls, as well as between the interior and exterior ceilings, fire-retardant insulation materials (such as mineral wool) should be filled, with an insulation layer thickness of 70 to 75mm (3in). In extremely cold or hot regions, the thickness should be increased to 80 to 85mm. Floors are made of anti-slip metal plates from 4 to 6mm steel sheets. Materials can be patterned stainless steel plates, patterned galvanized steel plates, or hot-rolled steel plates, with surface coating required for galvanized or hot-rolled plates.
