Application

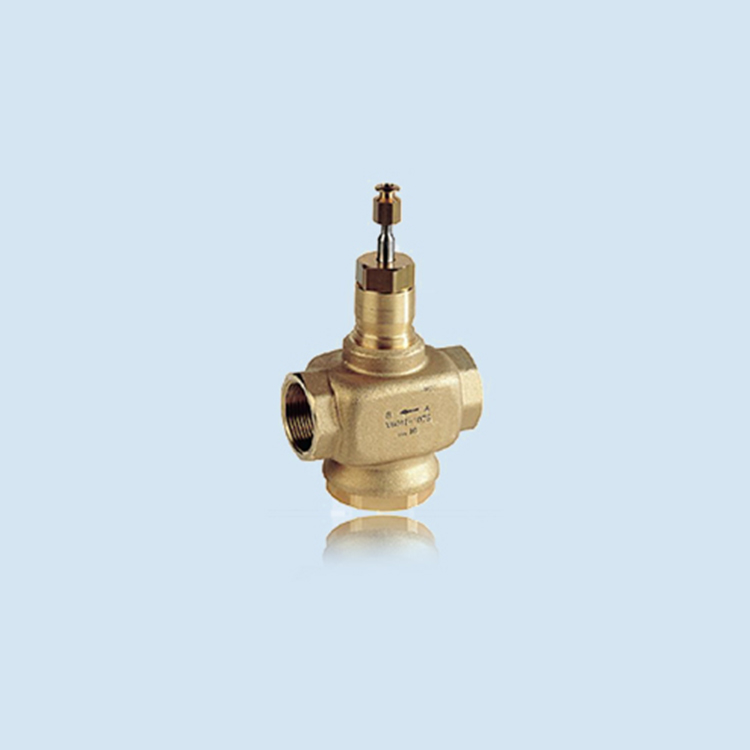

V5013P series three-way valve is compatible with Honeywell
ML74 series valve actuators, connected for HVAC use
Hot and cold water control for air conditioning systems.
Features
Low leakage rate
● Precise targeting, ensuring temperature control
● Hard-sealed valve seat extends service life
No accessories required, quick connection to the actuator.
Maintain a constant total flow throughout the entire journey.
Technical Specifications
Actuator Direction: Valve stem up to close passage A-AB
Nominal Pressure PN20
Valve Type: Three-Way Mixture
Fluid Properties - By Percentage (A-AB)
Linear (B-AB)
Leakage rate ≤ 0.05% of Kvs
Adjustable Ratio 50:1
Rated Stroke 20 mm
Connection Type: BSPT Male Thread
Valve Body Material: Bronze
Valve Stem Material: Stainless Steel
Valve Core Material: Brass
Medium Temperature: 2 ~ 120℃ (Max Pressure: 20bar)
120 ~ 170°C (max pressure 12.8 bar)
