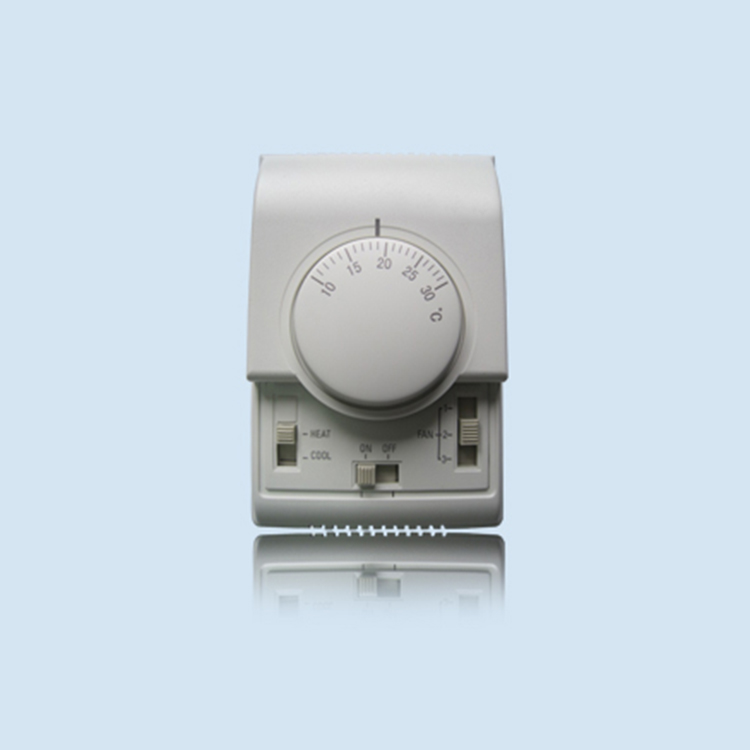

T6373 Mechanical Temperature Controller

Applied

The T6373 thermostat can be used to control valves, as well as the valves and dampers in pipe fans.
The thermostat can control the fan and valve switches to achieve the desired temperature, and the fan can also be controlled by the thermostat. In some cases, it can rotate continuously or cycle as per the thermostat.

The temperature controller is equipped with a manual three-speed fan switch and a system master switch. Some models of the temperature controller have a function to switch between cold and hot.

The function of switching between cold and hot is achieved by operating the cold/hot switch on the temperature controller panel. For some models, this feature is realized automatically through the temperature controller on the water pipe of the fan coil unit.

Features

● The bimetallic foil sensor box ensures accurate temperature control as required.

Elegant and unique design, perfectly blends the temperature controller into indoor environments, particularly suitable for office spaces in office buildings and guest rooms in hotels and restaurants.

● All models of thermostats are equipped with a heat sensor, which further improves the control of hot and cold temperatures

● Thermostat can be directly mounted on the wall or junction box.

● Toggle switches for manual control of system operation and fan speed

● Automatic switching between hot and cold can be controlled by a pipeline temperature controller (referring to certain models of controllers)

● Special Features:

A Overlimit Stop

B Safety Guard

C for wall mounting in special installation requirements

Technical Specifications

Set point range10 ~ 30°C, set by the rotary switch on the panel.

Power Voltage 220 ~ 240V，50 ~ 60HZ

Thermostat switch S.P.D.T

PerformanceSensor error is 1℃ at 20°C and 50% load.

Current Load
4(2)A，220 ~ 240V

Standard Load Fans, Hot and Cold Water Valves, and Relays.

Operation lifespan100,000 times

InstallDirectly mounted on the wall or junction box (installation screws provided)

Wiring8 terminal screws allow for a maximum wire cross-sectional area of 1.5mm². Backside wiring is possible through pre-drilled holes, or frontside wiring can be done through "un-drilled" holes.

Shell2 plastic shells

Protection Grade IP30

Environment
Operating Temperature Range: 0 ~ 40℃

Transport and Storage Temperature: -20 ~ 50℃

Humidity Storage: 0 ~ 90% Dust-Free Environment
