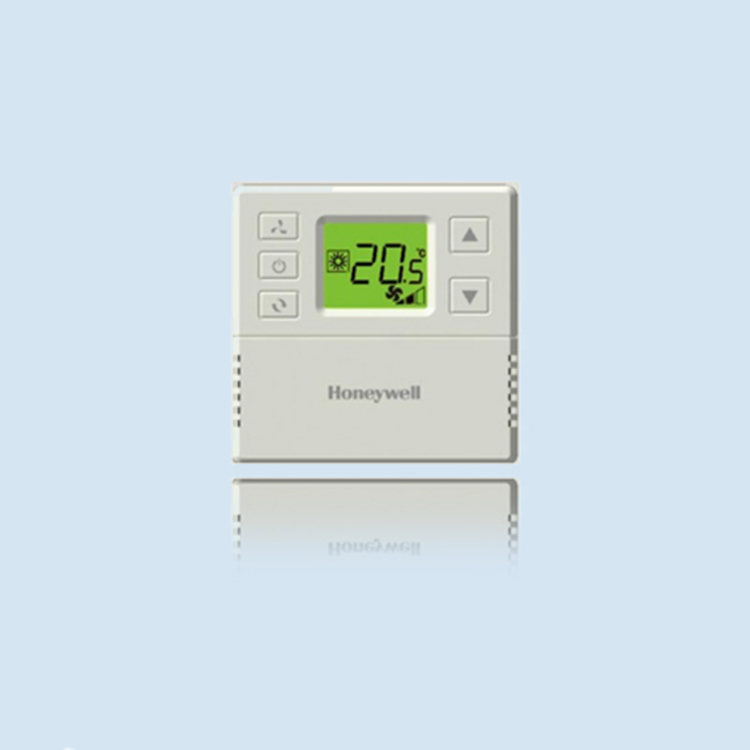

T6818 86 Standard Type LCD Temperature Controller
Application
The digital LCD temperature controller is designed for manual/automatic three-speed fan control and fan coil valve control applications, capable of continuous operation. Basic models include:
Two-pipe cold/ single heat/ heat and cold
Manual Switch
Ventilation feature
Manual/Automatic Three-Speed Fan Control
Features
Compact and sleek white design, suitable for offices, hotels, and homes
● Digital LCD screen with yellow-green backlight, displaying English text and icons
● Standalone temperature controller,可直接安装于86盒
● Easy installation and debugging
● Temperature display value can be adjusted appropriately
● Temperature unit displayed in Celsius (℃) or Fahrenheit (℉)
● Three-speed operation: high, medium, low, or fan auto-run
Lock (unlock) keys via installation settings
● User-set data can be retained for an extended period after power failure
Technical Specifications
Operating Voltage: 220Vac (±10%), 50Hz
Control Methods: PI Control Algorithm, On/Off Control
Control Accuracy: ±1℃ at 21℃
Load Capacity: Fan output 4(2)A, Valve output 2(1)A
Operating Life: 100,000 cycles
Temperature Setting Range: 10 ~ 32℃
Installation Method: Directly mounted on an 86×86mm wall-mounted junction box
Protection Level: IP20
Environment
Operating Temperature -18 ~ 49℃
Transportation Temperature -35 ~ 65℃
Relative humidity 5 ~ 95%
