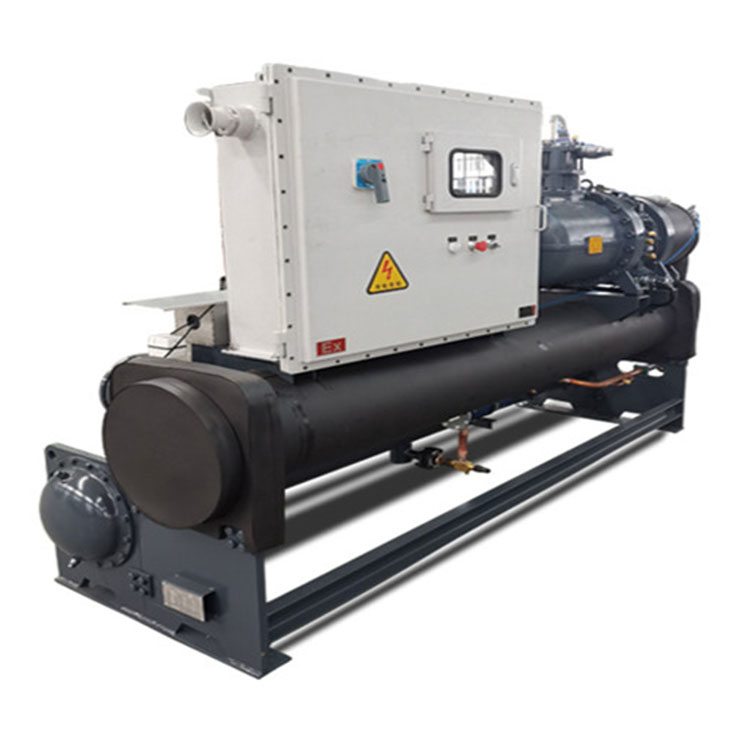

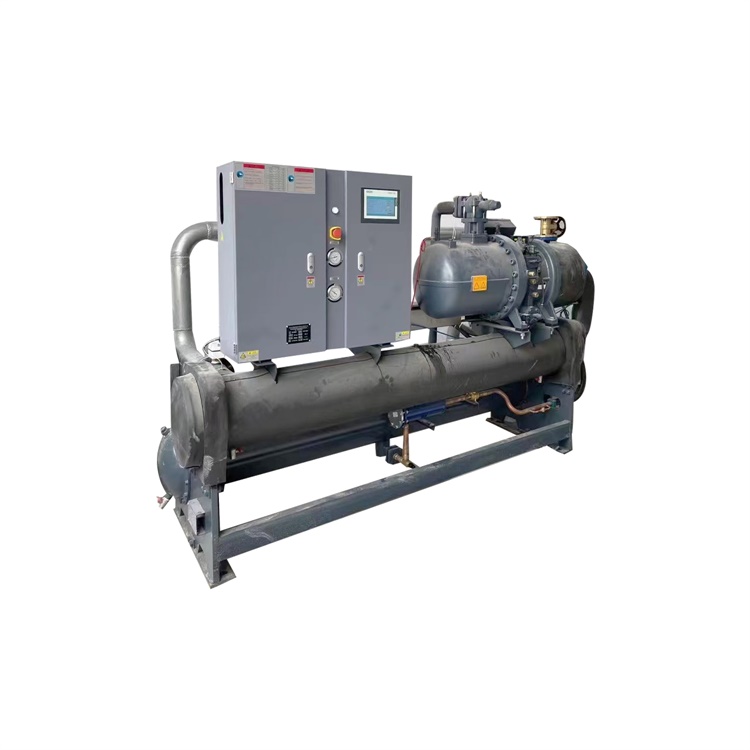

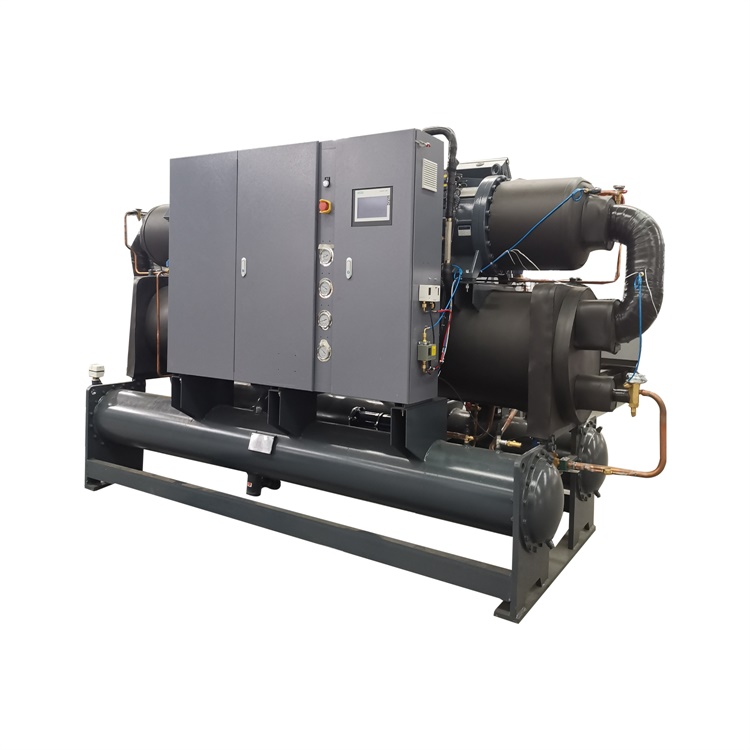

Water-cooled screw chiller, screw water chiller unit, screw chiller, twin screw chiller, high energy efficiency ratio screw chiller

1. The compressor utilizes an international brand, featuring a new type of screw rotor design, which offers 20%-30% higher efficiency than conventional compressors.

2, 5:6 Asymmetric Rotor Tooth Profile.

3. Capacity control can be achieved using a four-step system (100% - 75% - 50% - 25%) or a three-step system (100% - 66% - 33%), as well as a stepless control system.

4. Utilizing a combination design with 11 bearings and an A-type axial thrust balancing drum, the bearing life is significantly increased by 2.5 to 3.5 times.

5. Utilizing a special slot design of silicon steel sheets and equipped with full-featured cooling channels for both internal and external directions, ensuring the compressor motor operates with high efficiency under any load.

6. Unique built-in hydraulic system ensures ideal lubrication for the compressor without an oil pump. The oil separator features a double-layer filtration method for excellent oil filtration, and the heat exchanger performs with great capability.

High efficiency, low noise, low vibration.

8. A variety of refrigerants are available for selection, including environmentally friendly options such as R134a and R407c, in addition to the R22 refrigerant.

9. Compression volume ratios available for selection: VI=2.2/2.6/3.0/3.5. Effectively prevents additional energy consumption caused by over-compression or under-compression.

Water-cooled screw chillers, screw-type water chillers, screw chillers, twin screw chillers, high energy efficiency ratio screw chillers, main application industries

Plastic Industry: Precisely control the mold temperature for various plastic processing, shorten the injection molding cycle, and ensure stable product quality.

Electronics Industry: Stabilizes the molecular structure of electronic components during the production line, enhancing the pass rate of electronic components. Applied in the ultrasonic cleaning industry, it effectively prevents the evaporation of expensive cleaning agents and the harm caused by their fumes.

Electroplating Industry: Control plating temperature, enhance the density and smoothness of plated parts, shorten the plating cycle, improve production efficiency, and enhance product quality.

Mechanical Industry: Controls the oil temperature of hydraulic systems, stabilizes oil temperature and pressure, extends the lifespan of the oil, enhances the efficiency of mechanical lubrication, and reduces wear.

Construction Industry: Supplies chilled water for concrete, ensuring the molecular structure of concrete meets the requirements for construction use, effectively enhancing its hardness and toughness.

Vacuum Coating: Control the temperature of the vacuum coating machine to ensure high-quality coating.

Food Industry: High-speed cooling after food processing to meet packaging requirements. Also includes temperature control for fermented food products.

Textile Industry: Cryogenic air drying to ensure product quality
