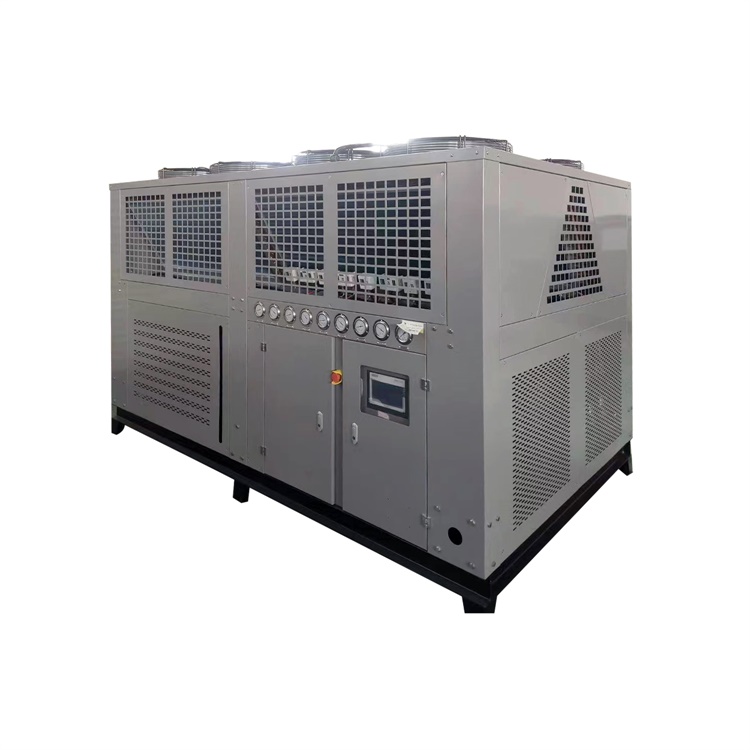

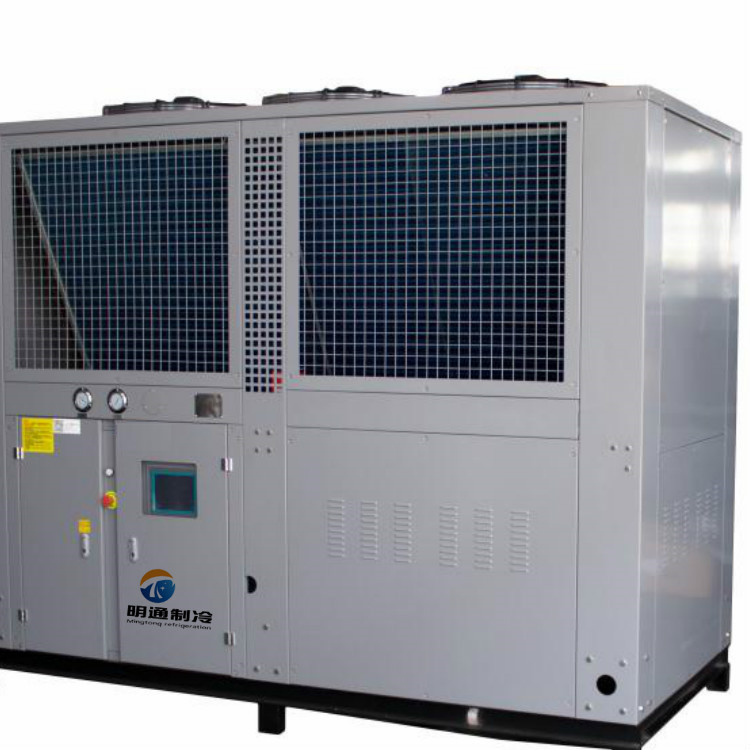

Air-cooled screw chillers, screw chillers with air-cooled, air-cooled screw chiller units, screw chillers with air-cooled units, price and features of air-cooled screw chillers:

1. The compressor uses an international brand, a new high-efficiency ratio screw rotor compressor, which is 20%-30% more efficient than conventional compressors.

2. High energy efficiency ratio, 5:6 asymmetric rotor tooth profile.

3. Capacity control can be achieved through a four-stage system (100% - 75% - 50% - 25%) or a three-stage system (100% - 66% - 33%), as well as a stepless control system.

4. Utilizes a combination design of 11 bearings and an A-type axial thrust balancing drum, significantly increasing bearing lifespan by 2.5 to 3.5 times.

5. Utilizes high-efficiency silicon steel sheet with a special slot design, equipped with all-directional cooling flow channels inside and out, ensuring the compressor motor operates at high efficiency under any load.

6. Integrated hydraulic system ensures ideal lubrication for the compressor without an oil pump. The oil separator features double-layer filtration for excellent oil filtering, and the heat exchanger performs with great capacity.

High efficiency, low noise, and low vibration.

8. A variety of refrigerants are available for selection, including R22 refrigerant, as well as environmentally friendly options like R134a, R407c, etc.

9. Compressor displacement ratios (VI=2.2/2.6/3.0/3.5) available for selection. Effectively prevents additional energy consumption caused by over-compression or under-compression.

Air-cooled screw chiller, Air-cooled screw chiller unit, Price of air-cooled screw chiller mainly used in industries

Plastic Industry: Accurately control the mold temperature for various plastic processing, shorten the injection molding cycle, and ensure the stability of product quality.

Electronics Industry: Stabilizes the molecular structure of electronic components during the production line, enhancing the pass rate of electronic components. Applied in the ultrasonic cleaning industry, it effectively prevents the evaporation of expensive cleaning agents and the associated harm to individuals.

Plating Industry: Control plating temperature, enhance the density and smoothness of plated parts, shorten the plating cycle, increase production efficiency, and improve product quality.

Mechanical Industry: Controls the oil temperature of the hydraulic system, stabilizes oil temperature and pressure, extends the service life of the oil, enhances the efficiency of mechanical lubrication, and reduces wear.

Construction Industry: Supplies chilled water for concrete, adjusting the molecular structure of concrete to meet construction requirements, effectively enhancing the hardness and toughness of concrete.

Vacuum Coating: Control the temperature of the vacuum coating machine to ensure high-quality coating on the workpiece.

Food Industry: Used for high-speed cooling after food processing to meet packaging requirements. Also includes controlling the temperature of fermented foods.

Textile Industry: Cryogenic air drying to ensure product quality

Air-cooled screw chillers, screw chillers with air-cooled, air-cooled screw chiller units, screw chillers with air-cooled units, technical specifications and price of air-cooled screw chillers:
