Cast Iron Weighing Scale Categories:
Cast iron scales are categorized by structure into ribbed plate and box styles; by application, into inspection scales, marking scales, and sand pressing scales; and by accuracy level into 00, 0, 1, 2, and 3 grades, with grades 2 and above being inspection scales, and grade 3 being marking scales.
Cast Iron Weighing Scale Specifications:

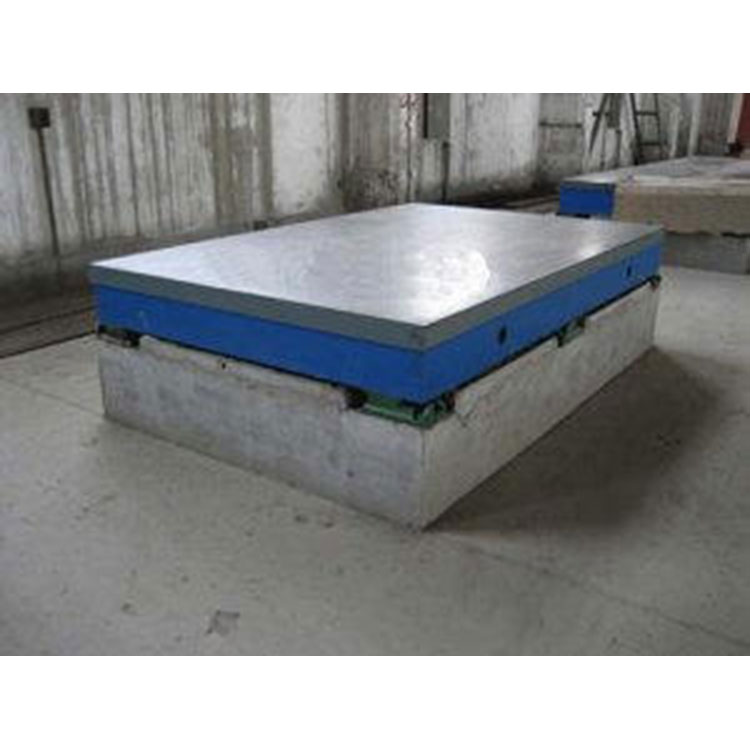

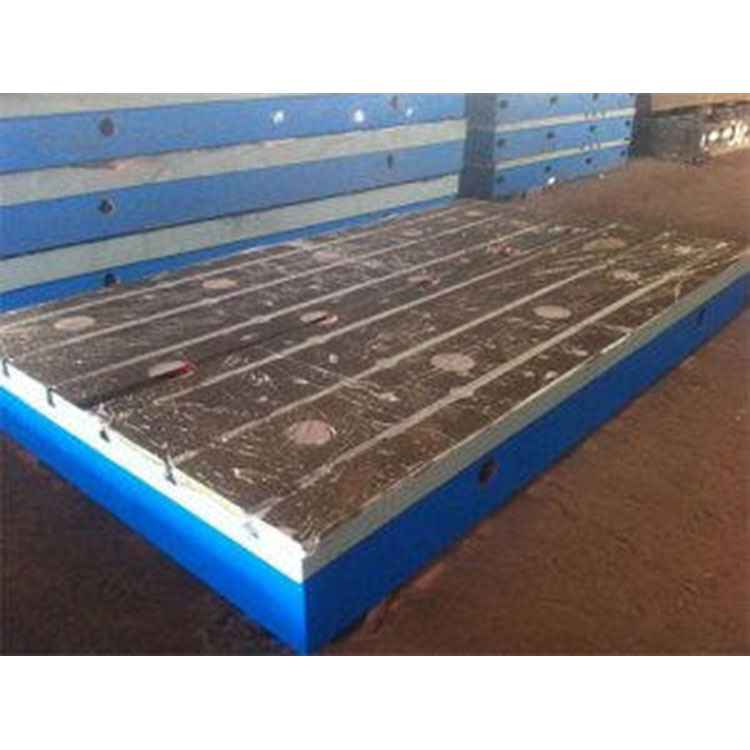

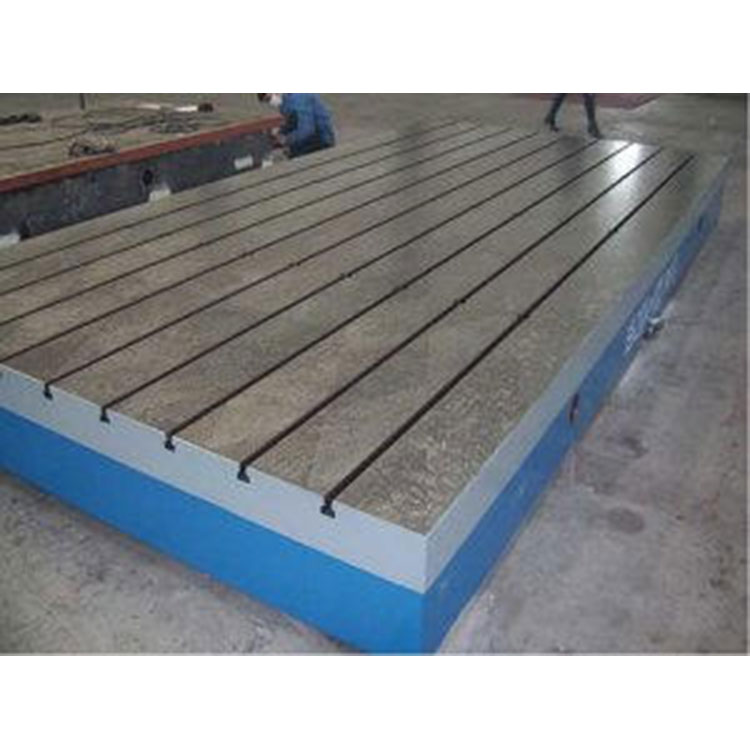

Overall specification of the cast iron level plate: 4 meters x 8 meters. Larger sizes can be assembled in multiple pieces. After wear, it can be resurfaced to restore accuracy. The flatness of the component can be inspected using the coloring method, offering the advantages of accuracy, intuitiveness, and convenience.
100mm x 200mm to 400mm x 400mm (This specification is suitable for grinding sanding steady plates) Precision levels: 0, 1, 2.
② 400mm x 600mm to 1500mm x 2500mm (This specification is suitable for manual scraping and dressing) with precision levels of 1st, 2nd, and 3rd grades.
③ 1,500mm x 3,000mm to 2,000mm x 3,000mm (This specification is suitable for manual scraping and setting) Precision levels: 2nd, 3rd, and fine planing.
④ 2000mm x 4000mm to 3000mm x 10000mm/4000mm x 8000mm, 3rd grade accuracy and planing.
Cast Iron Weighing Scale Instructions:
Before use, clean the anti-rust oil from the work surface with non-corrosive gasoline and wipe it clean with degreased cotton yarn. Then, it is ready for use.
2. Temperature fluctuations can cause measurement errors; it should be used within the range of 20±5℃.
3. Adjust the level to be level during use, ensuring the fulcrum is evenly distributed across all fulcrum points.
Use with caution, prevent collisions.
5. Clean after use, apply a rust-inhibiting oil with no water acidity, cover with moisture-proof paper, and store in a clean and dry place.
6. Inspection Period: Extended inspection period of one year.
Cast Iron Weighing Scales Applicable:
The movement of the table and workpiece on the ground and polished cast iron base is smooth without any sticking sensation, facilitating measurement and ensuring accuracy. Suitable for various inspection tasks, it serves as a precision measurement reference plane for machine tools, checking part dimensions and positional deviations, and performing precise marking. It is an indispensable basic tool in mechanical manufacturing.
Jin Chang Machinery & Equipment Co., Ltd. in Botou City offers a range of other gauges: cast iron plates, marking plates, base plates, inspection plates, riveting and welding plates, heat treatment plates, fitter's plates, grinding plates, lapping plates, sand-blasting plates, testing plates, machine tool workbenches (e.g., floor boring machine workbench), three-coordinate plates, mold shims, assembly plates (also known as assembly tables).
