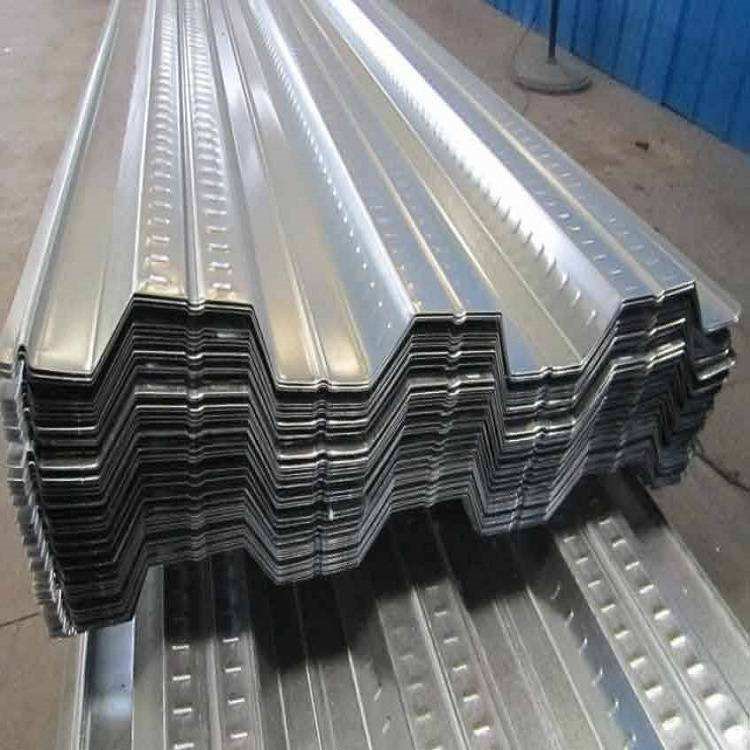

Main characteristics of roof deck

1: Adaptable to the rapid construction requirements of main steel structures, it can provide a solid working platform in a short time and allows for the laying of corrugated steel plates on multiple floors, with a continuous construction process for layering concrete slabs.

2: During use, the floor deck acts as the tension reinforcement for the concrete floor, enhancing the floor's rigidity while also saving on steel and concrete usage.

3: The embossed surface of the shaped plate creates a strong bond between the floor deck and concrete, integrating them as a single unit. With the addition of reinforcing ribs, the floor deck system achieves high-strength bearing capacity.

4: Under cantilever conditions, the floor deck serves only as a special formwork. The cantilever length can be determined based on the cross-sectional characteristics of the floor deck. To prevent cracking of the cantilever plate, negative reinforcement should be installed at the support according to the design of the structural engineer.
