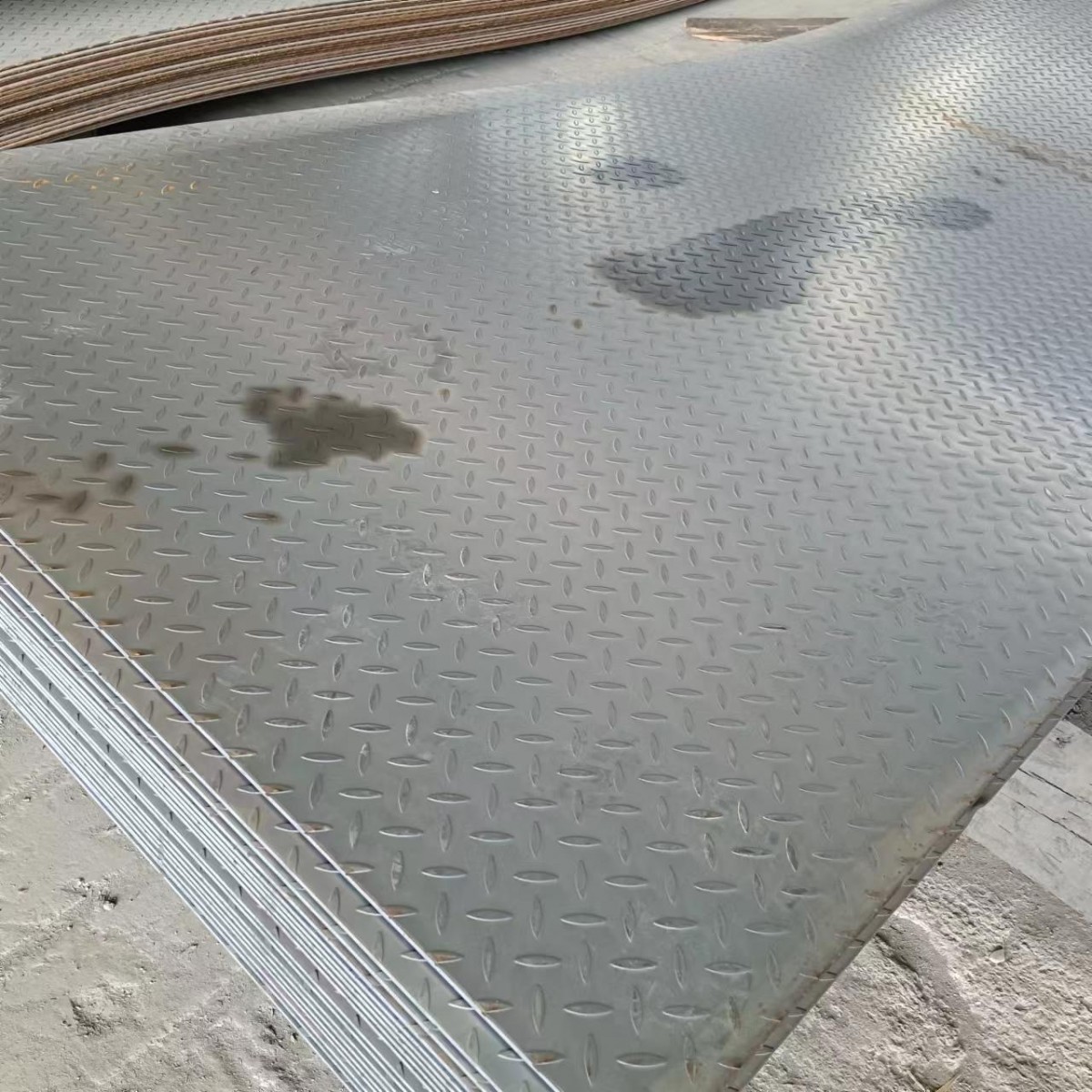

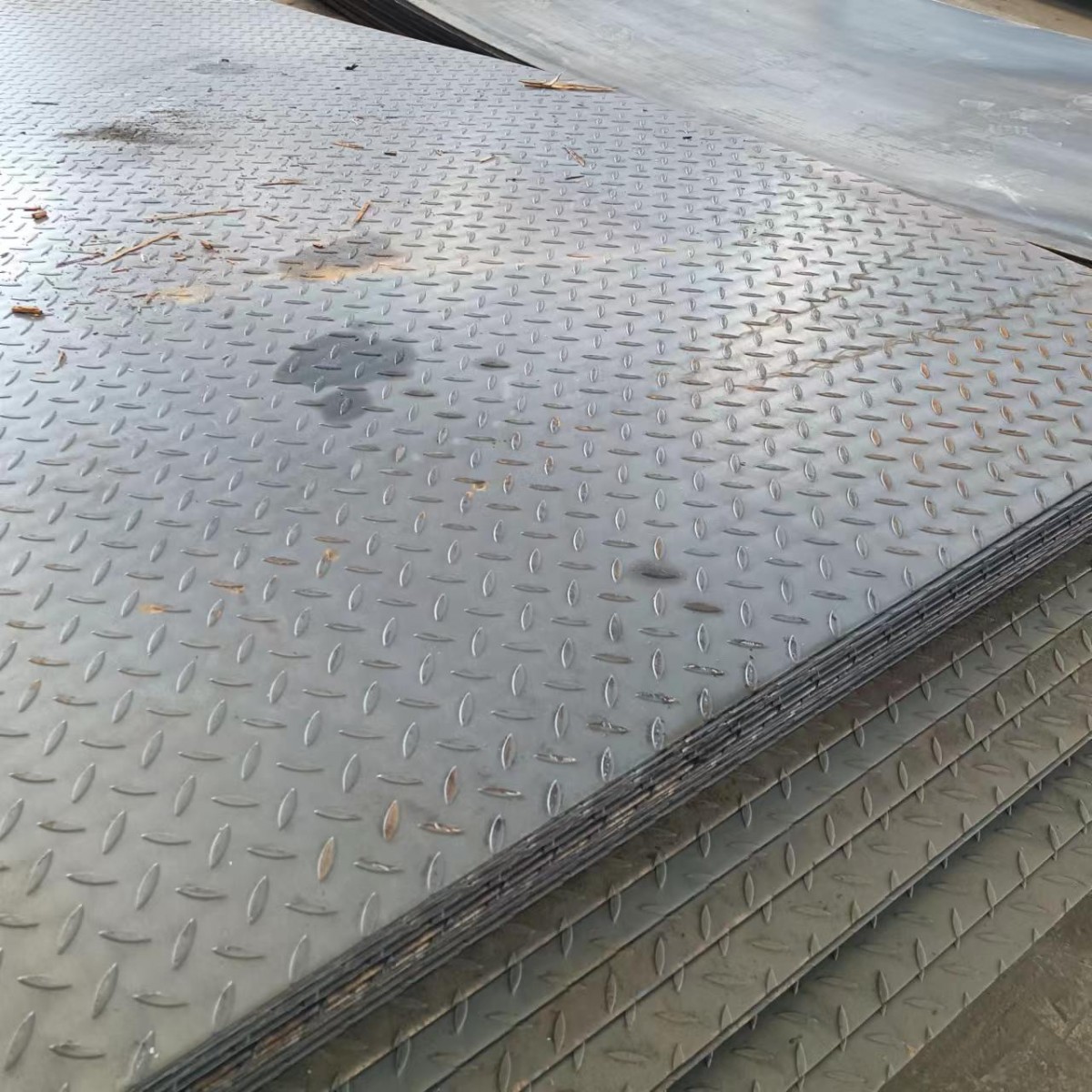

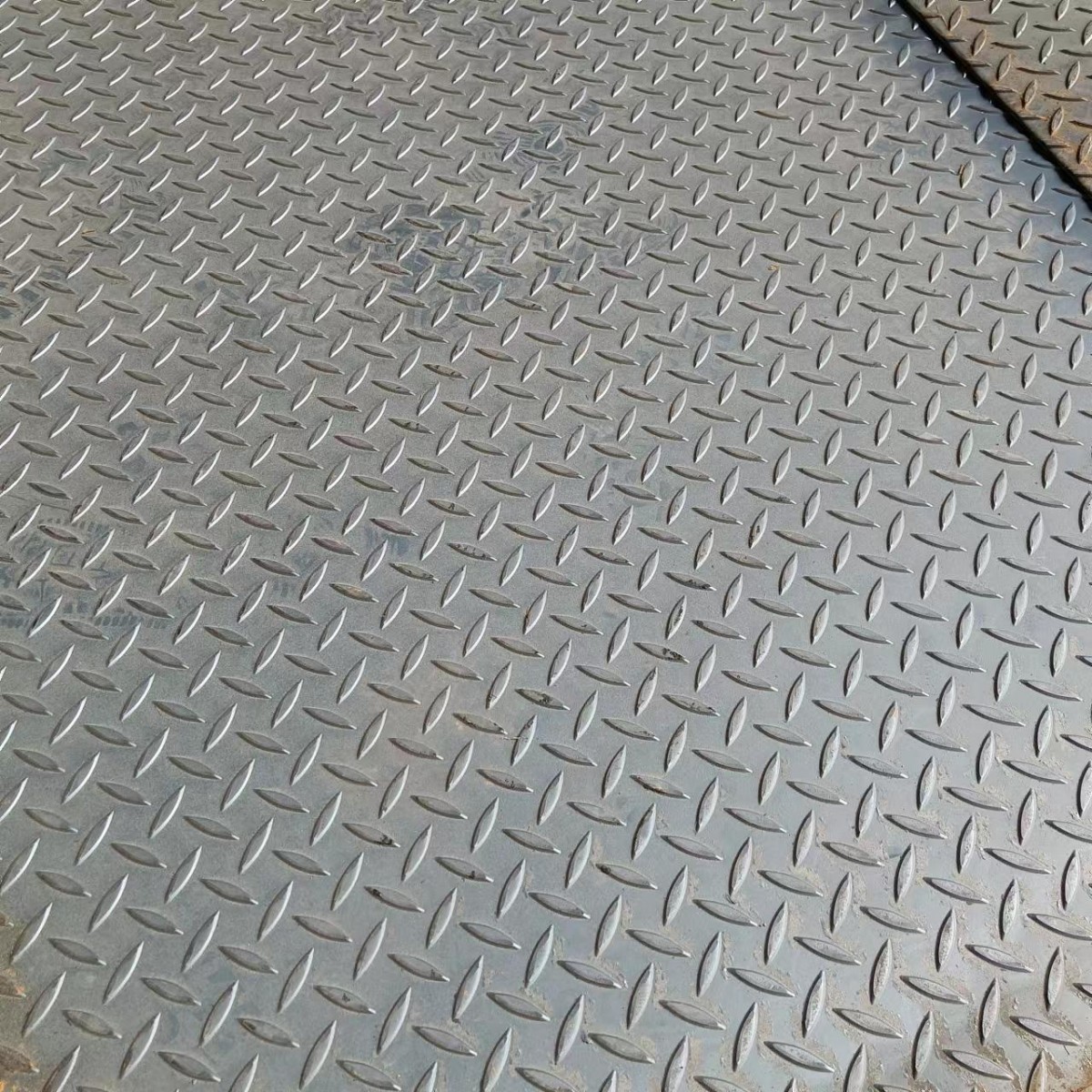

Patterned steel plate, also known as ribbed steel plate, features a diamond or ridged surface.

The pattern can be a single diamond, flat bean, or round bean design, or it can be appropriately combined into a composite pattern board featuring two or more patterns.

The patterns primarily serve as anti-slip and decorative functions. The comprehensive effects of the composite patterned plates, including their anti-slip performance, bending resistance, metal savings, and appearance, are significantly superior to those of single patterned plates.

Patterned steel plates are widely used in shipbuilding, boilers, automobiles, tractors, railway wagons, and construction industries.

Patterned steel plates, with their raised ridges for anti-slip properties, are suitable for use as flooring, factory staircases, workbench steps, ship decks, and automotive undercarriages.

Patterned steel plates, used for workshop floors, large equipment, or ship decks and stair treads, are steel sheets with diamond or flat bean-shaped patterns embossed on the surface.

The steel plate is produced from Grade 1-3 carbon steel, with thickness ranging from 2.5 to 8mm, width from 600 to 1800mm, and length from 2000 to 12000mm.

Patterned steel plate specifications are indicated by the basic thickness (not including the thickness of the protrusions), available in 10 sizes ranging from 2.5 to 8 millimeters. Patterned steel plates are used in grades 1-3.
