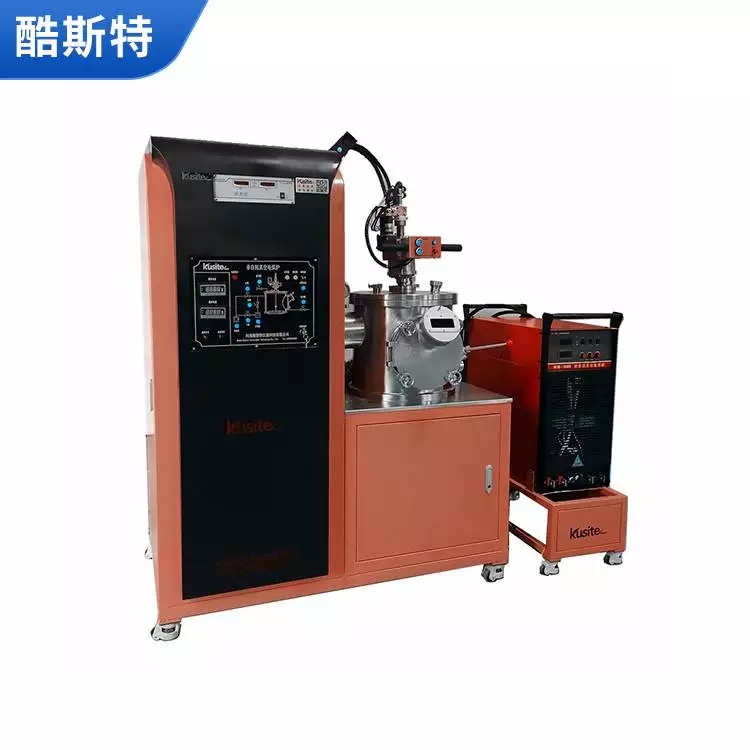

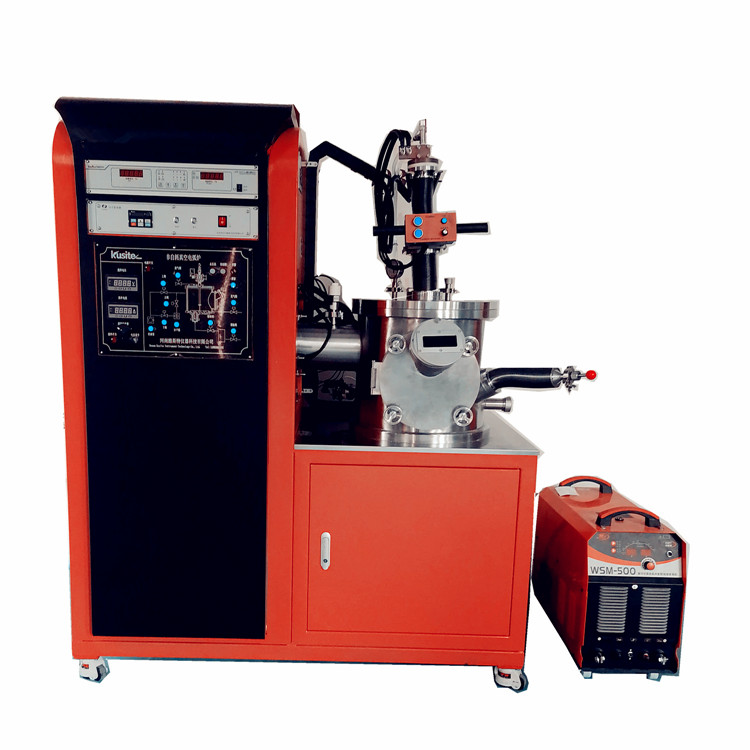

KDH-500 Non-Consumable Vacuum Arc Melting Furnace, Button Furnace Equipment Usage:
1. For melting high melting point metals/alloys, master alloy preparation
2. For high melting point refractory metals, metal alloys, etc.
3·X-ray Fluorescence Sample Preparation
Titanium and Titanium Alloys, Smelting of Alloys of Congenial Active Metals
Research and development of new materials
KDH-500 Non-Consuming Vacuum Arc Melting Furnace, Button Furnace - Equipment Features:
1. Full stainless steel body design, aesthetically pleasing and rust-free.
2. Vertical cylindrical vacuum chamber used
3. Equipped with a large-diameter observation window for real-time monitoring of the smelting process within the furnace.
High melting temperature, up to 3500 degrees Celsius.
Arc melting power supply used.
5. Features a desk-top design for easy operation
Equipped with an operation simulation screen, control data is displayed intuitively, with straightforward and simple operation.
7. High vacuum design, achieving a vacuum level of 5×10E-4 Pa and above
8. Equipped with a built-in cold water unit, ready for use upon arrival.
9. Utilize over-temperature protection and add filter glass to protect eyes
10. Water-cooled copper electrodes with 360-degree rotation for flexible operation. The compact water-cooled crucibles are replaceable and customizable.
11. Equipped with a flipper device to overcome the uneven melting of materials on one side
12. Vacuum Suction Casting Station
13·Varying specifications available for non-standard customization:
Samples can be in powder, filamentous, granular, drillings, strip-like, ring-shaped, and muddy-sandy forms, etc.
High equipment efficiency: Most metal materials can be reheated and remelted in one minute or less
Three: Kuster Non-Consumable Vacuum Arc Furnace Melting Furnace, Button Furnace Configuration Instructions:
1. Vacuum Configuration: Mechanical pump plus molecular pump system, 5.0*10^-4 Pa
2. Power Configuration: 20KW, based on melting capacity
Capacity Configuration: 30-100g
4·Temperature: Standard room temperature - 3500℃
5·Crucible Workstations: 3~7 stations, available for non-standard customization
6. Configurable Vacuum Casting; Optional electromagnetic stirring function
