1. Equipment Usage

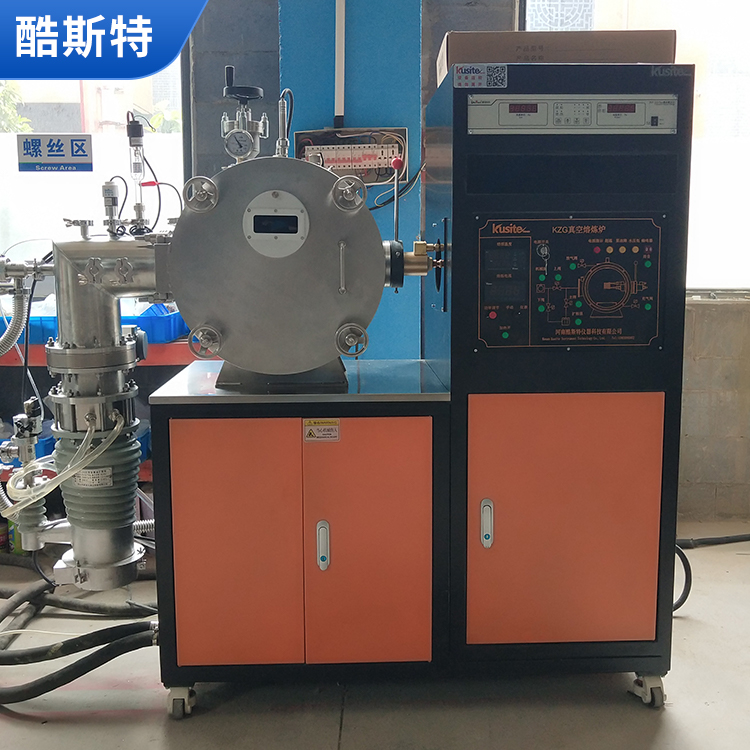

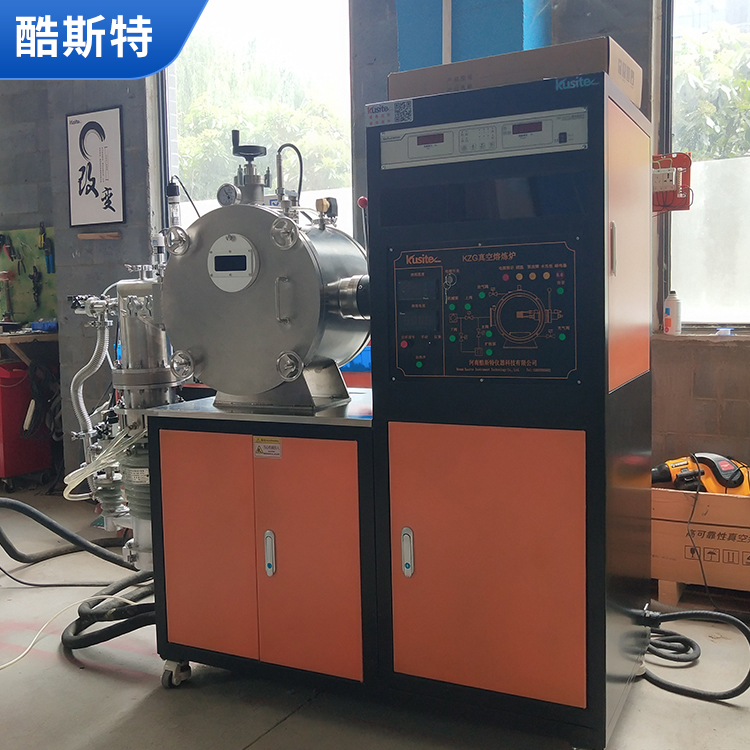

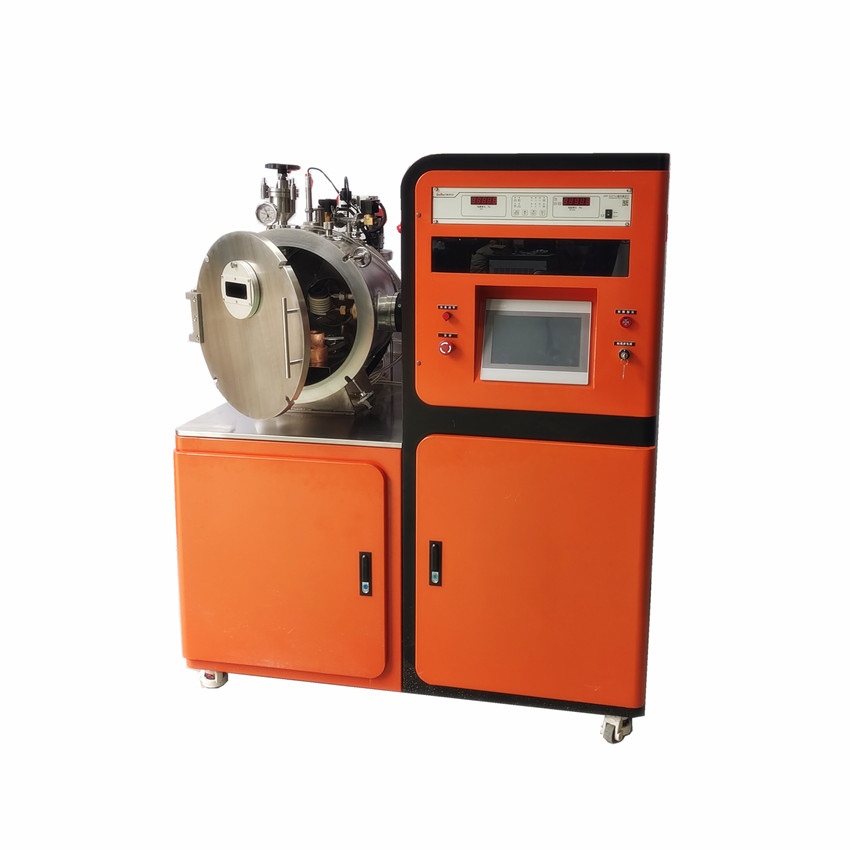

This product features a horizontal front-opening structure, which is innovative in design and aesthetically pleasing. It is primarily used for melting vanadium-titanium alloy materials under vacuum or protective atmosphere conditions in colleges and universities, research institutions, and production enterprises. It is also suitable for the melting and processing of metal materials such as stainless steel, nickel-based alloys, copper, alloy steel, nickel-cobalt alloys, and rare earth neodymium iron boride, etc. It can be applied in the preparation of metal alloys, remelting cast iron, smelting and sintering of non-metallic materials, graphitization sintering of high-temperature materials, and more.
2. Product Features
Fast melt rate, sample testing can be completed in 10 minutes.
Wide temperature range: 500-1700, 800-2000, 1000-2400℃
3. Equipped with a tilting device, the molten sample can be poured into a pre-prepared ingot mold, casting the shape of the sample you desire.
4. Melting available under various atmospheric conditions: vacuum, vacuum + atmosphere, and protective atmosphere.
5. Equipped with an operation simulation screen, allowing for a direct observation of the operational process of each component, as well as the intuitive display of their operational status.
Equipped with infrared temperature measurement. Temperature can be displayed in real-time:
7. Full stainless steel structure with water cooling, ensuring the shell temperature remains below 35°C, for your personal safety protection.
Wide Application Range: Suitable for the preparation of metal alloys, remelting of cast iron, smelting and sintering of non-metallic materials, graphitization and sintering of high-temperature materials, etc.
3. Key Technical Parameters
3.1 Equipment Sensing Power Supply: 25KVA, 30-80Hz
3.2 Power Voltage: 380V, 3-phase, 50Hz
3.3 Design Temperature: 2000℃ Infrared Temperature Measurement
3.4 The configuration program features temperature measurement and control, with manual real-time power adjustment capabilities and the option to switch usage.
3.5 crucible capacity: 50-1000g (with iron density of 7.8g/cm³). The coil and crucible crucible sleeve can be freely interchanged, and disassembly is convenient.
3.6 Coil Configuration: 3 coils - 50-200g, 1 piece; 200-500g, 1 piece; 500-1000g, 1 piece.
3.7 Configuration Crucibles: Graphite Crucibles, Ceramic Crucibles, Yttria Crucibles (as required)
3.8 Ultimate Vacuum Degree: 6.67×10E-3 Pa, upgradeable to high vacuum system
3.9 Protection Atmosphere: Nitrogen, Argon ≤ 0.05 MPa
3.10 Dimensions: 1250×1150×1500mm (L×W×H)
3.11 Total Equipment Weight: Approximately 500 Kg
3.12 Available for custom orders with features such as mechanical stirring, ultrasonic stirring, mold heating, and more.
