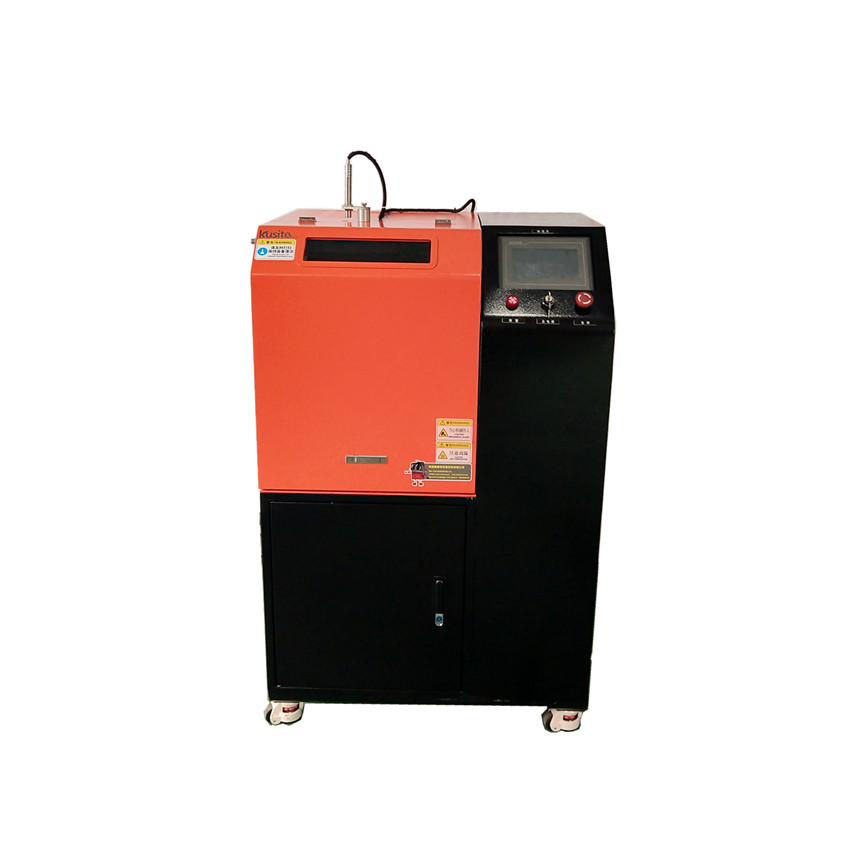

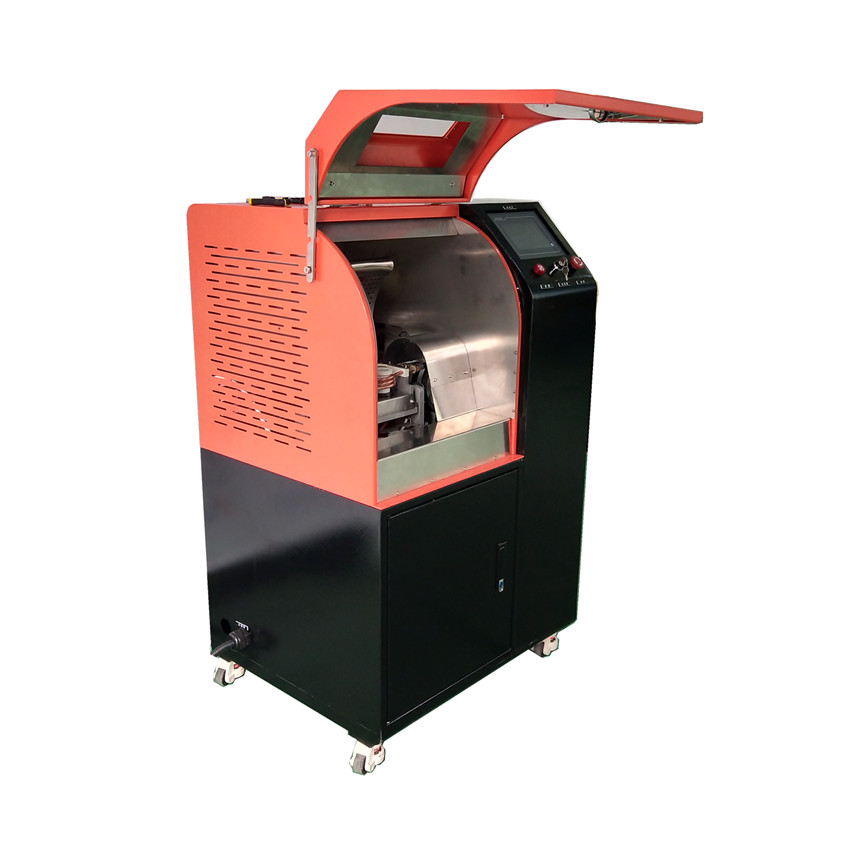

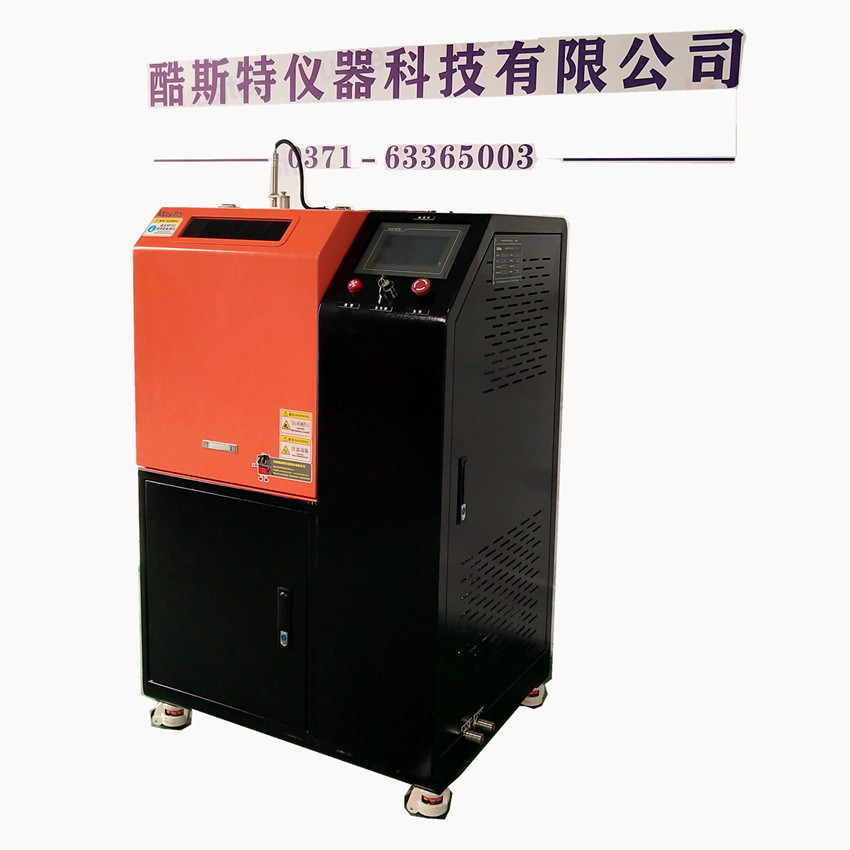

High-frequency Melting Sample Machine Equipment Usage:

Steel, metallurgy, chemical industry, geology, cement, ceramic refractory materials, etc., XRF analysis of samples such as ore, rock, soil, refractory materials, and metallurgical raw materials – glass melt pellet preparation

II. Features of High-Frequency Melting Sample Machine Equipment:

1. The operation utilizes a touchscreen and PLC controller, enabling full automatic control of heating current, heating time, swing angle/speed, and inclusion, along with infrared monitoring of sample temperature; thereby achieving one-button control of the entire melting process of the sample.

2. Fast melting speed, completing a pattern test in 5-12 minutes. The platinum crucible with a self-rotating and swinging device ensures uniformity in the molten samples, reducing the segregation phenomenon in the samples.

3. Programmable step-wise temperature rise (power control) with infrared temperature measurement for easy parameter setting of melting conditions for different materials. Simply set the heating or cooling process curve according to your process requirements, and the equipment will automatically perform a series of actions such as heating, temperature rise, swinging, rotation, and cooling, with one-touch start and stop.

4. Samples can be melted under varying temperatures as per different sample requirements.

The product is designed with an integrated structural layout. High-frequency induction current and operating status readings are displayed, recorded directly on the analog screen via communication methods, allowing data to be saved and exported for easy analysis. An insulating device is used inside the furnace to ensure the surface temperature of the furnace is below 35℃, enabling continuous sample production without waiting for the furnace to cool down, thus improving work efficiency.

6. crucible quantity: 2 crucibles (crucibles can be made of platinum)

Equipment Safety Protection: The equipment's heating power supply features over-voltage, over-current, over-temperature, and low-water alerts to ensure safe operation.

III. Equipment Specifications:

1. Crucible swing angle: 0~40 degrees (adjustable), crucible swing speed: 0~30 rotations/min (adjustable)

2. Crucible spinning speed: 0~20 RPM

Total Equipment Power: 10Kw; Power Voltage: AC220V/Single Phase 50Hz

Equipment operating temperature: 0-1300℃

5. Heating Control Method: Utilizes power automatic control with infrared-assisted temperature monitoring. The PLC automatically adjusts the output power to the high-frequency power supply based on the set process, achieving automatic power regulation of the process. Infrared monitoring of the sample's melting temperature provides a relative data reference for customer testing data.

6. Crucible Workstation: 2 stations (capable of melting 2 samples at once)

Touchscreen + PLC control, with工艺 storage function, 工艺 storage ≥ 5 lines

Plug Current: 2P, 25A

9. Dimensions: approximately 1100×550×1250mm (L×W×H)
