5-kilogram Vacuum Melting Furnace, Vacuum Induction Melting Furnace, Custom-Made Vacuum Melting Furnace

Equipment Usage

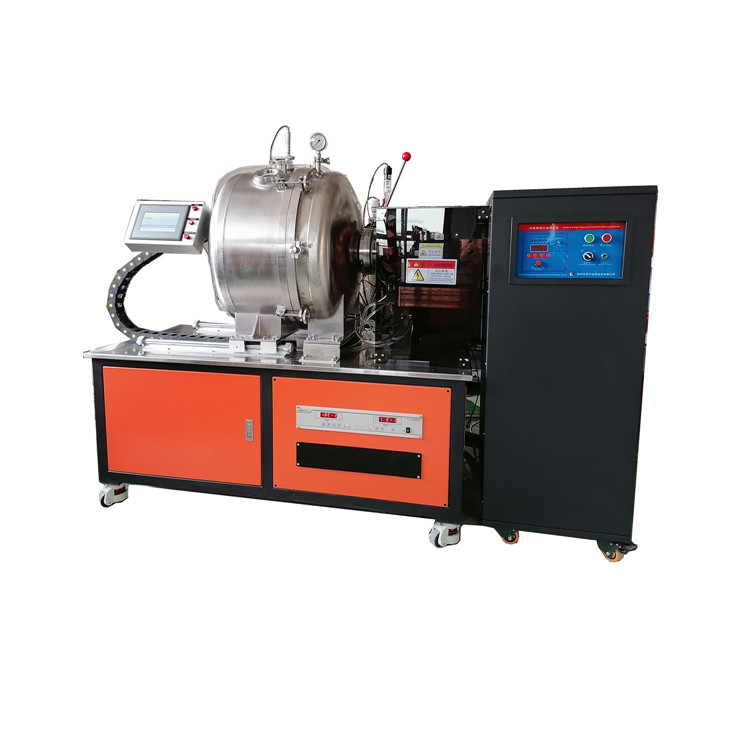

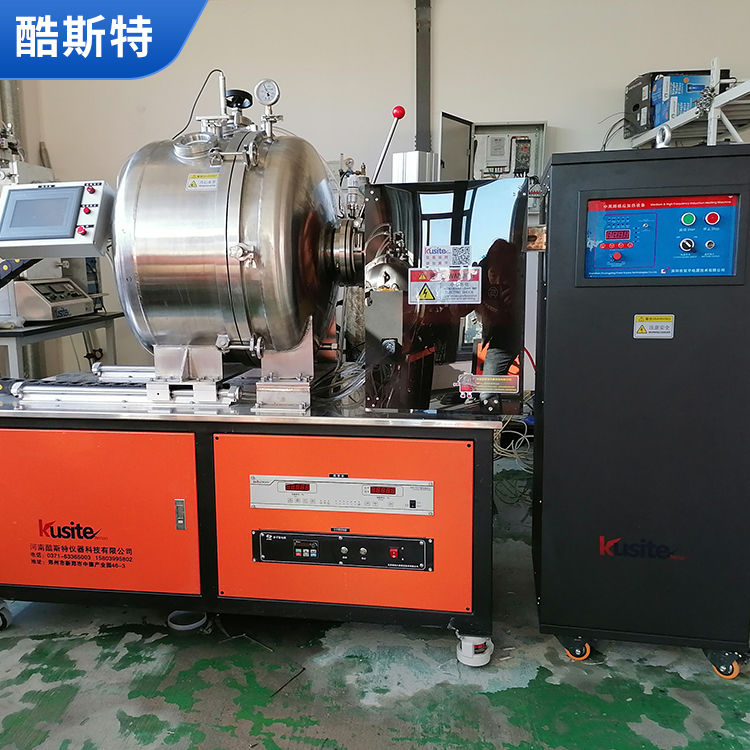

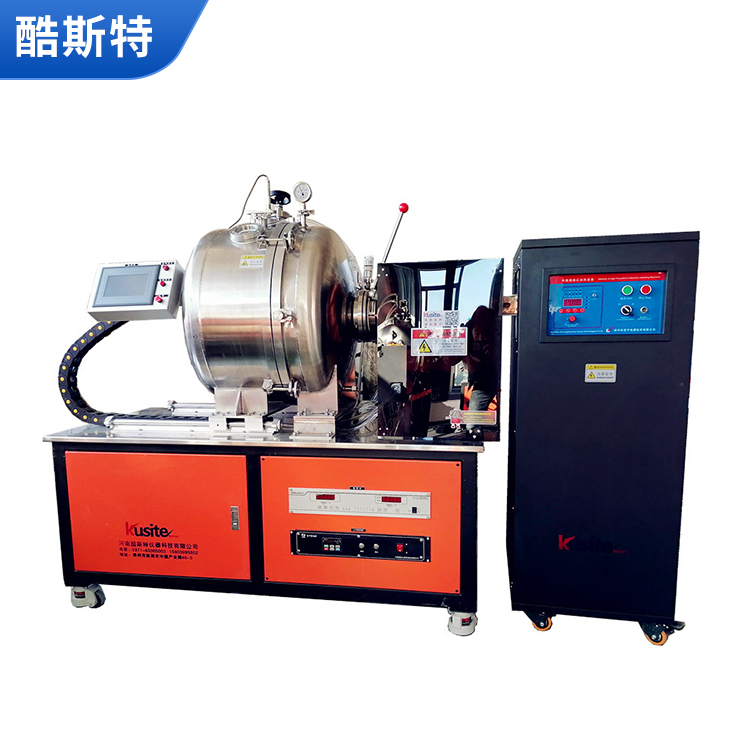

This product features a horizontal, split-structure design, which is innovative and aesthetically pleasing. It employs a touch screen + PLC control mode, with multi-interface design for easy operation, intuitive display, and powerful functions. It is primarily used for melting vanadium-titanium alloys under vacuum or protective atmosphere conditions in colleges and universities, research institutions, and production enterprises. It can also be used for melting and processing of metal materials such as stainless steel, nickel-based alloys, copper, alloy steel, nickel-cobalt alloys, rare earth neodymium iron boride, and others. It is applicable in the preparation of metal alloys, re-melting cast iron, smelting and sintering of non-metallic materials, graphitization sintering of high-temperature materials, etc.

II. Product Features

1. Fast melting speed, sample testing can be completed in 10-20 minutes

2. Wide temperature range: 500-1700, 800-2000, 1000-2400℃

3. Equipped with a tilting device, molten samples can be poured into pre-prepared ingot molds to cast the desired sample shape.

4. Melting is possible under various atmosphere conditions: vacuum, vacuum + atmosphere, and protective atmosphere.

5. Equipped with an operation simulation screen, allowing for a direct observation of the operation process of each component and the direct display of their operating status.

6. Equipped with infrared temperature measurement. Temperature can be displayed in real-time:

7. The furnace features a full stainless steel structure with water cooling, ensuring the shell temperature remains below 35°C, safeguarding your personal safety.

Wide Application Range: Suitable for the preparation of metal alloys, remelting of cast iron, smelting and sintering of non-metallic materials, graphitization and sintering of high-temperature materials, etc.

III. Main Technical Parameters

3.1 Power Rating: 60KW

3.2 Power Voltage: 380V, 3-phase, 50Hz

3.3 Medium Frequency Power Supply: 45 kW

3.4 Temperature: 1750℃ (with infrared temperature measurement or thermocouple measurement)

3.5 Crucible Capacity: 5Kg (as per molten metal density)

3.6 Ultimate vacuum degree: 5.0×10E-3 Pa, upgradeable vacuum system

3.8 Protective Atmosphere: Nitrogen, Argon ≤ 0.05 MPa

3.9 Control Method: PLC + Touch Screen

3.10 Overall Dimensions: 2100×1100×1600mm (L×W×H)

3.11 Total Equipment Weight: ≦ 600 Kg

3.12 Available for custom sizes, featuring mechanical stirring, ultrasonic stirring, water-cooled copper molds, mold heating, and various other functions.
