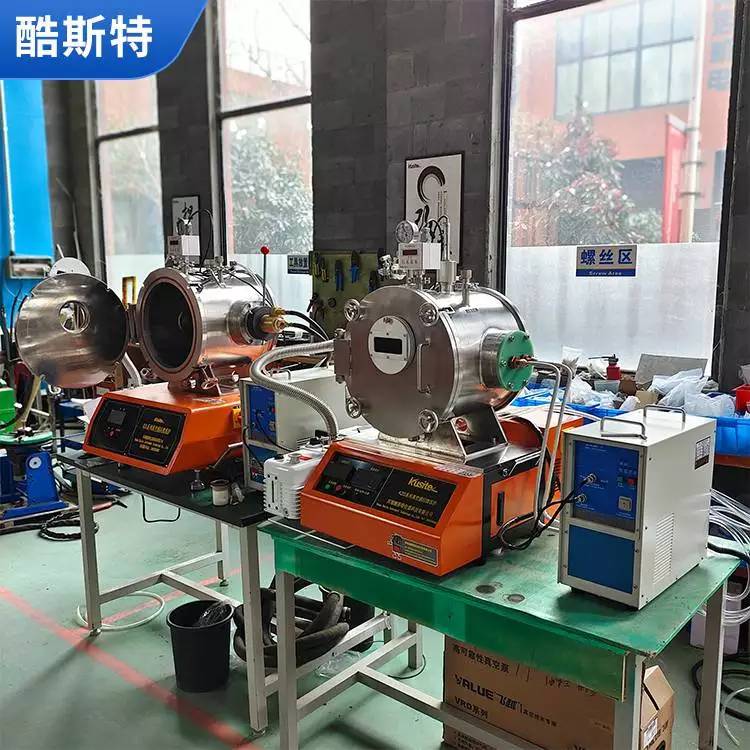

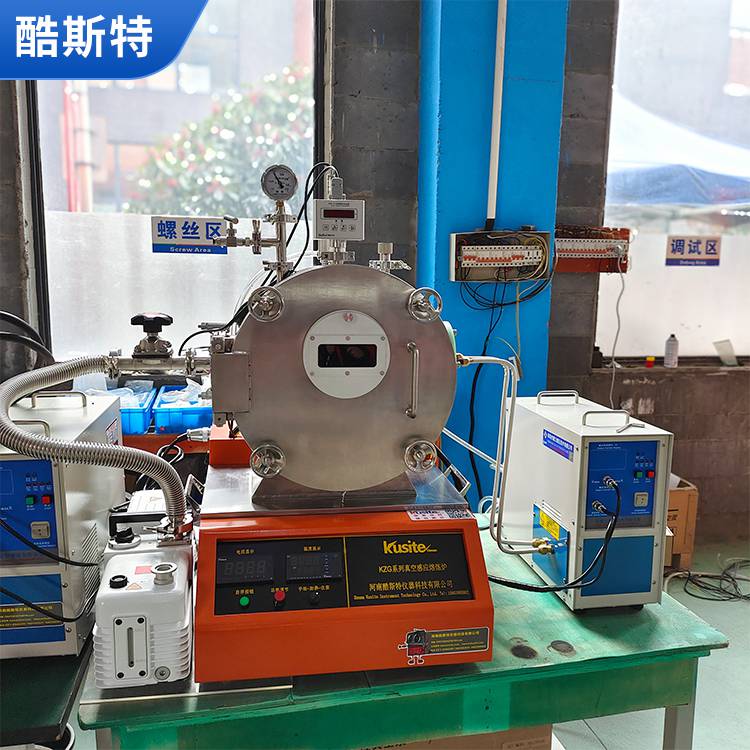

One,Mini Vacuum Melting Furnace, Sintering FurnaceEquipment Usage

1. Melting and treatment of metal materials such as stainless steel, nickel-based alloys, copper, alloy steel, nickel-cobalt alloys, and rare earth neodymium iron boron, under vacuum or protective atmosphere conditions

2. Vacuum Refining Treatment for Alloy Steel

3. High-temperature sintering of non-metallic materials

4. Welding of ceramic materials and metal materials

5. Sintering and graphitization of carbon materials, PI film graphitization, thermal conductivity material graphitization, sintering of carbon fiber rope, and graphitization of carbon fiber filament by sintering.

6. Directional solidification casting of materials, zone refining, crystal growth, etc.

II. Product Features

1. Fast melt rate, sample test completed within 10 minutes

Wide temperature range: 500-1700, 800-2000, 1000-2400℃

3. Equipped with a pouring device, melted specimens can be poured into pre-prepared ingot molds, casting the desired sample shape.

4. Melting is possible under various atmospheric conditions: vacuum, vacuum + atmosphere, protective atmosphere.

5. Equipped with an operational simulation screen, allowing for a direct observation of the operation procedures of each component and the intuitive display of their operating status.

Infrared temperature measurement configured. Temperature can be displayed in real-time:

7. Full stainless steel body structure with water cooling, ensuring the shell temperature remains below 35°C, for your personal safety protection.

Wide Application Range: Suitable for the preparation of metal alloys, remelting of cast iron, smelting and sintering of non-metallic materials, graphitization and sintering of high-temperature materials, etc.

Section 3: Main Technical Parameters

3.1 Equipment Power Rating: 7.5KW

3.2 Power Voltage: 220V, Single Phase, 50Hz

3.3 Design Temperature: 500-1800℃ (upgradable to 2400°C)

3.4 Real-time Manual Power Adjustment

3.5 crucible capacity: 50-200g (as measured by molten steel)

3.6 Coil Configuration: 50-200g, 1 pc

3.7 Vacuum Chamber Size: 300*350mm

3.8 Ultimate vacuum degree: ≤10 Pa, upgradeable vacuum system available

3.9 Protective Atmosphere: Hydrogen, Argon ≤ 0.05 MPa

3.10 Dimensions: 1250×1150×1500mm (L×W×H)

3.11 Equipment Host Weight: Approximately 120 Kg
