1. Equipment Usage

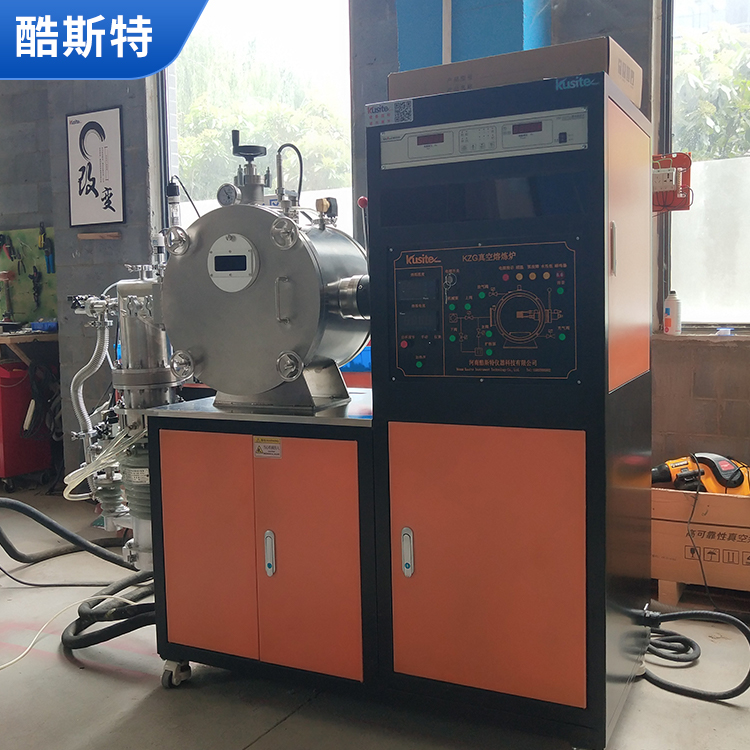

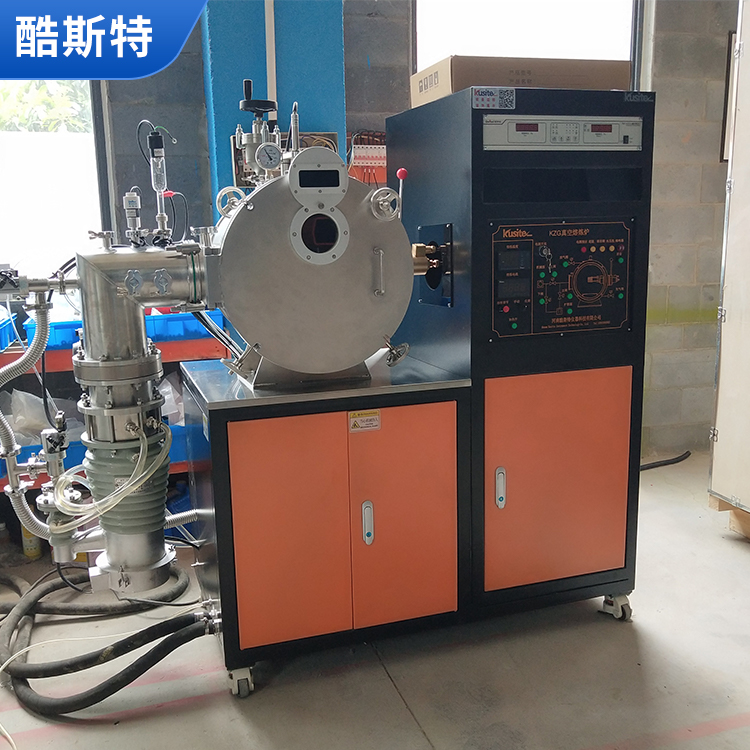

This product features a horizontal front-opening design with a novel structure and attractive appearance. It is primarily used for melting vanadium-titanium alloy materials under vacuum or protective atmosphere conditions in colleges and universities, scientific research institutions, and production enterprises. It is also suitable for the melting and treatment of metal materials such as stainless steel, nickel-based alloys, copper, alloy steel, nickel-cobalt alloys, and rare earth neodymium iron boride, etc. It can be applied in the preparation of metal alloys, remelting cast iron, smelting and sintering of non-metallic materials, graphitization sintering of high-temperature materials, and more.
2. Product Features
1. Fast melting speed, sample testing can be completed within 10 minutes
Wide temperature range: 500-1700, 800-2000, 1000-2400℃
3. Equipped with a tilting device, the molten sample can be poured into a pre-prepared ingot mold, casting the shape of sample you desire.
4. Melting available under various atmosphere conditions: vacuum, vacuum + atmosphere, protective atmosphere.
5. Equipped with an operational simulation screen, allowing for a direct observation of the operational procedures of each component, and providing a clear display of their operational status.
Infrared temperature measurement configured. Real-time temperature display available.
7. Full stainless steel structure with water cooling, ensuring the shell temperature remains below 35°C, for your personal safety protection.
Wide Application Range: Suitable for the preparation of metal alloys, remelting of cast iron, smelting and sintering of non-metallic materials, graphitization and sintering of high-temperature materials, etc.
3. Main Technical Parameters
3.1 Equipment Sensing Power Supply: 25KVA, 30-80Hz
3.2 Power Voltage: 380V, 3-phase, 50Hz
3.3 Design Temperature: 2000°C Infrared Temperature Measurement
3.4 Equipped with programmable instrument for temperature control, featuring manual real-time power adjustment and the ability to switch between modes.
3.5 crucible capacity: 50-1000g (with iron density of 7.8g/cm³); crucible and crucible sleeve can be freely interchanged, easy to disassemble.
3.6 Coil Configuration: 3 coils - 50-200g, 1 piece; 200-500g, 1 piece; 500-1000g, 1 piece.
3.7 Configuration Crucibles: Graphite crucibles, Ceramic crucibles, Yttria crucibles (as required)
3.8 Ultimate Vacuum: 6.67×10E-3 Pa, upgradeable to high vacuum system
3.9 Protection Atmosphere: Nitrogen, Argon ≤ 0.05 MPa
3.10 Dimensions: 1250×1150×1500mm (L×W×H)
3.11 Total Equipment Weight: Approx. 500 Kg
3.12 Available for custom orders with features such as mechanical stirring, ultrasonic stirring, mold heating, and more.
