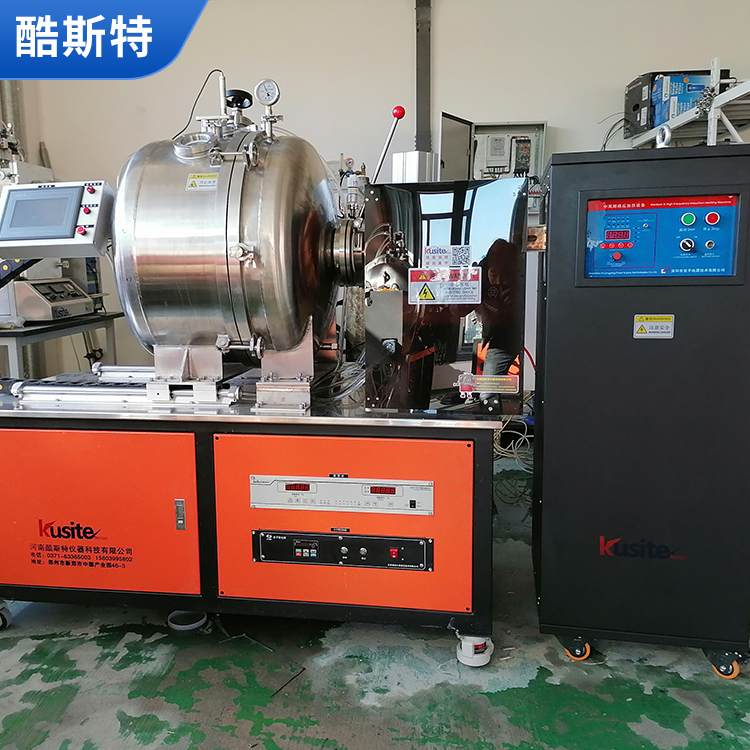

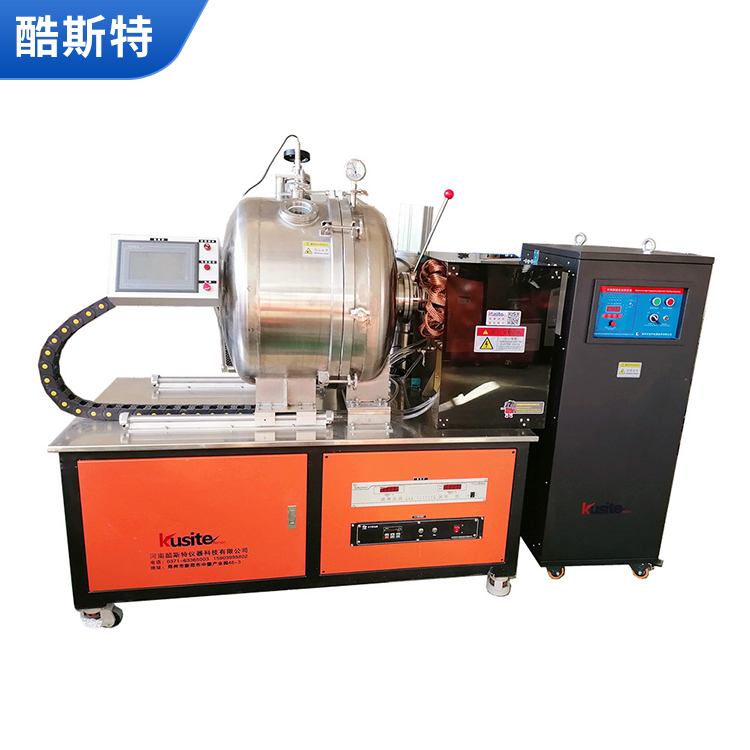

5-Kilogram Vacuum Melting Furnace, Vacuum Induction Melting Furnace, Custom-Made Vacuum Melting Furnace

I. Equipment Usage

This product features a horizontal split structure design, which is both innovative and aesthetically pleasing. It employs a touch screen + PLC control mode, with multi-interface design for easy operation, intuitive display, and powerful functions. It is primarily used for smelting vanadium-titanium alloys under vacuum or protective atmosphere conditions in colleges and universities, research institutions, and production enterprises. It can also be used for the smelting and processing of metal materials such as stainless steel, nickel-based alloys, copper, alloy steel, nickel-cobalt alloys, rare earth neodymium iron boride, and others. It is applicable in the preparation of metal alloys, remelting of cast iron, smelting and sintering of non-metallic materials, graphitization sintering of high-temperature materials, and more.

II. Product Features

Fast melting speed, sample testing can be completed within 10-20 minutes.

2. Wide temperature range: 500-1700, 800-2000, 1000-2400℃

3. Equipped with a tilting device, molten samples can be poured into pre-prepared ingot molds, casting the desired sample shape.

4. Melting available under various atmosphere conditions: vacuum, vacuum + atmosphere, protective atmosphere.

5. Equipped with an operation simulation screen, allowing for a direct observation of the operation process of each component, and providing a clear display of the operational status of each part.

6. Equipped with infrared temperature measurement. Temperature can be displayed in real-time:

7. Full stainless steel structure with water cooling, ensuring the shell temperature remains below 35°C, safeguarding your personal safety.

Wide Application Range: Suitable for the preparation of metal alloys, remelting of cast iron, smelting and sintering of non-metallic materials, graphitization and sintering of high-temperature materials, etc.

III. Main Technical Parameters

3.1 Power Rating: 60KW

3.2 Power Voltage: 380V, 3-phase, 50Hz

3.3 Intermediate Frequency Power Supply: 45 Kw

3.4 Temperature: 1750℃ (with infrared temperature measurement or thermocouple measurement)

3.5 Crucible Capacity: 5Kg (as liquid steel specific gravity)

3.6 Ultimate vacuum degree: 5.0×10E-3 Pa, upgradeable vacuum system

3.8 Protection Atmosphere: Nitrogen, Argon ≤ 0.05 MPa

3.9 Control Method: PLC + Touch Screen

3.10 Overall Dimensions: 2100×1100×1600mm (L×W×H)

3.11 Total Equipment Weight: ≦ 600 Kg

3.12 Available for custom orders with features such as mechanical stirring, ultrasonic stirring, water-cooled copper molds, mold heating, and more.
