One·Equipment Purpose:

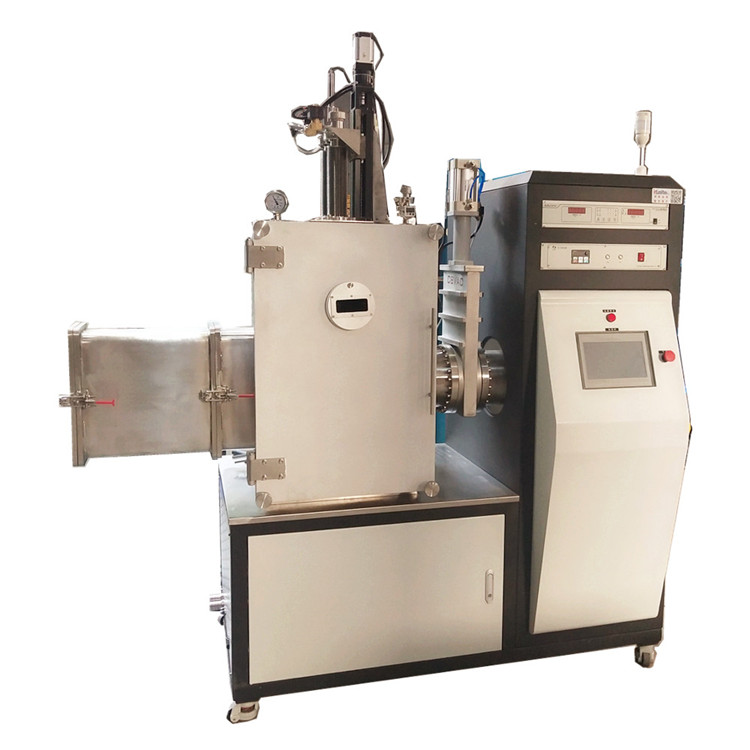

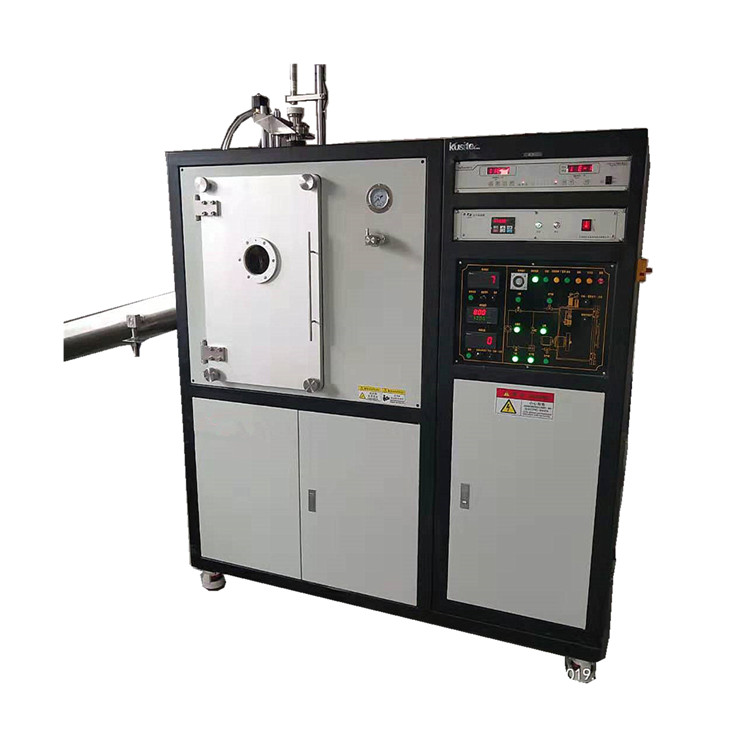

Vacuum Winding FurnaceConveyor belt unloaderUsed for the preparation and development of metastable materials.(Amorphous material)Our experimental equipment, which boasts all the features of an induction furnace, is also capable of preparing bulk metallic glasses and metallic ribbons.,Suitable for research and experimental work with various amorphous and microcrystalline materials.,Widely used in the development and research of new rare earth permanent magnet materials, amorphous soft magnetic materials, and nanomaterial sciences.

Two· Equipment Features:

1· Full stainless steel body design, with an elegant and generous appearance, rust-free.

2· UtilizeLateral sliding doorStructure, innovative design, easy loading and unloading, intuitive operation.

3 .Equipped with a large-diameter observation window for real-time monitoring of the smelting process inside the furnace.

3· High smelting temperature, temperature can1700DegreeAbove.

4· UtilizeIGBTHighFrequency power supply, quiet operation, excellent melting performance.

5· Employing a two-level control system, vacuum pressure is high, up to5.0*10-3pa

6·Equipped with an operational simulation screen, operation is intuitive and straightforward.

The 7-link belt system is controlled by a servo motor, overcoming the difficulties of common variable-frequency motor tremors and unstable motor speed.

Highly expandable, capable of adding spray casting pouring function

III. Configuration Instructions:

1·Vacuum Configuration:Mechanical Pump System5Pa Mechanical Pump+Diffusion Pump System5×10E-3PaMechanical Pump+Molecular Pump System5.0*10-4pa

2· Power Configuration:7kw 15kw  25kw  According to melting capacity

3· Belt configuration:5g-1000g

4·Temperature Range: Standard0-1700℃

5· Optional induction melting furnace, melting capacity200g-2000g

6· Configurable Vacuum Spray Casting | Spray Casting Capacity20-1000g

7· Optional infrared temperature measurement and thermocouple temperature measurement devices for automatic programmed temperature control

8· Sprocket roller size:¢200*40Without Water Cooling  ¢220*40 No Water Cooling    ¢220*40 Water-cooled ）  ¢300*150 With Water Cooling  ）

9· Belt Tension Control: Servo Electric Control

10· Belt speed:0-3000Please provide the Chinese content to be translated./Please provide the Chinese content to be translated.

11· Crucible Configuration: Quartz, GraphiteBNCeramics; other materials available for custom orders
