Section 1:Equipment Usage:

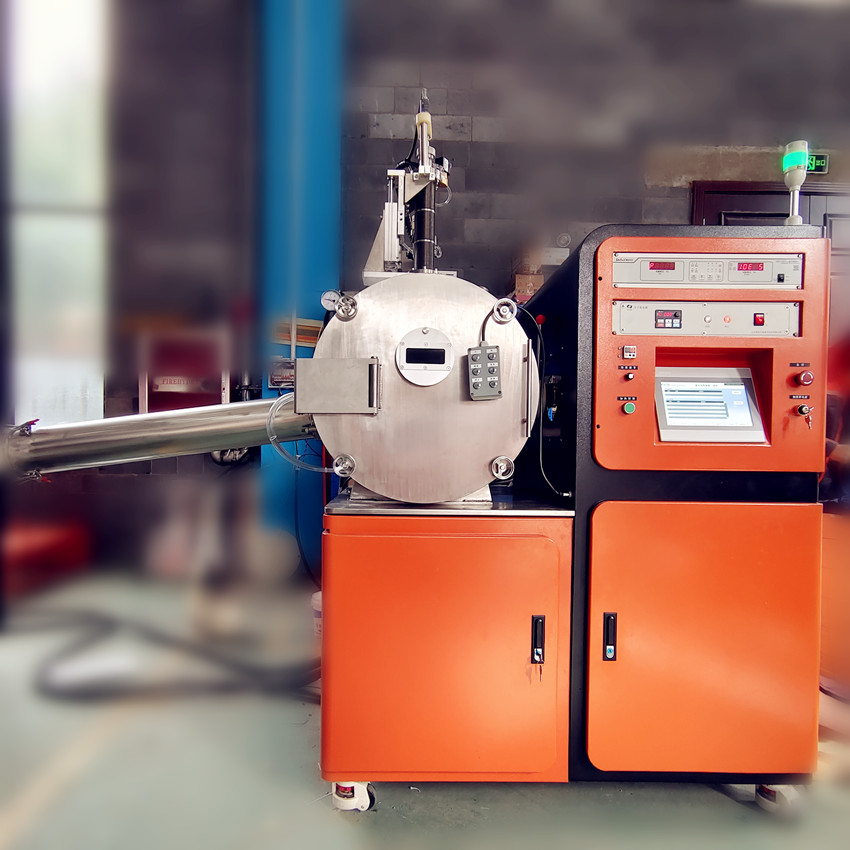

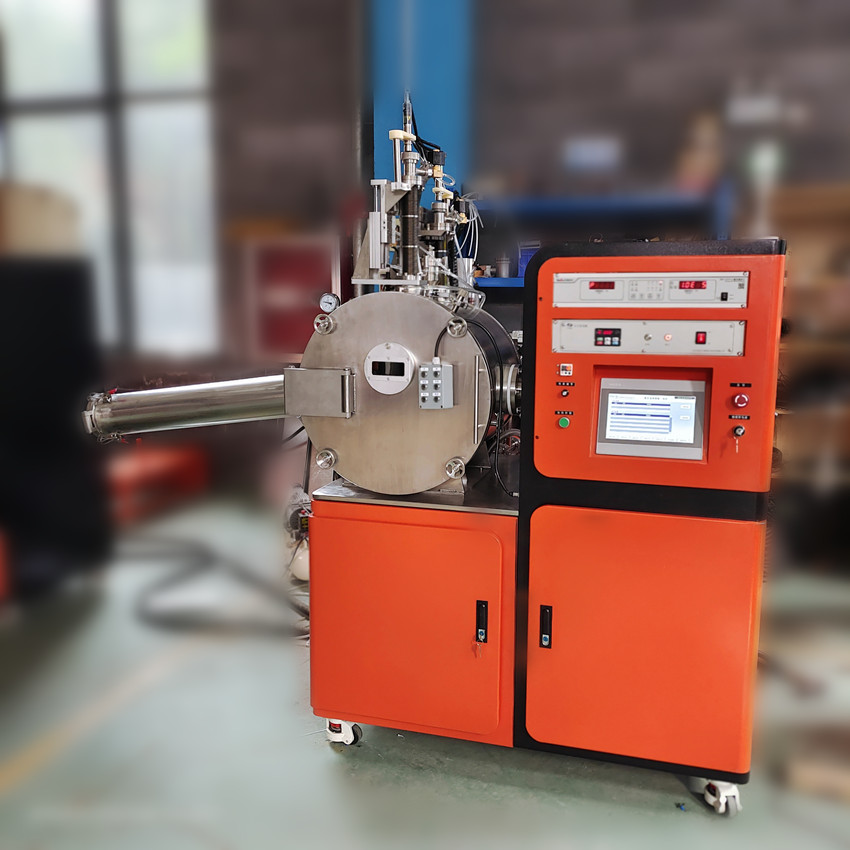

VacuumMeltingTie-down strapIntegrated furnaceUsed for the preparation and development of metastable materials.Experimental equipment (such as for amorphous materials), featuring all the characteristics of an induction furnace, also has the capability to produce bulk metallic glasses and metal ribbons. It is suitable for research and experimentation with various amorphous and microcrystalline materials, and is widely used in the development and research of new rare-earth permanent magnet materials, amorphous soft magnetic materials, and nanomaterial sciences.。

II. Equipment Configuration:

   The equipment consists of a high vacuum chamber, high vacuum system, belt scraper collection device, pressure stabilizing gas storage unit, servo belt scraper, crucible lifting mechanism, induction heating unit, water cooling unit, etc..

III.KSDG-0.05VacuumMeltingTie-down strapMonoblock furnaceKey Technical Specifications

3.1.Power Supply：Three-phase five-wire AC380V 50HZ 15KW

3.2. DrawstringSample Melting Quantity:10-50g;

3.3.Roller Dimensions:  φ200mmx40mm  φ240mmx40mm

3.4. Single Stick Rotating Device (Whip)Copper Rod Speed:1-3000r/min;

3.5 Overband Hoist: Overband hoist utilizesServo ElectricLifting, adjustablePreciseAdjust crucible and copperRollerLocation.

3.6 Shot Casting Capacity: 10-50g

3.7 Spray Casting Lifting: Cylinder-driven liftingElectricLifting, manual operationPreciseAdjust crucible and copperMolds betweenThe location.

3.8 Inductive Melting Capacity:20-200g

3.9.Vacuum Degree:6.7x10^-4Pa;Direct-Connected Pump+ Molecular Pump + Baffle Valve + Compound Vacuum Pump

3.10. Tie-down strapMelting Power Supply:15KVA 30-80KHz 380V

3.11.Melting Temperature:500℃-1700℃With infrared temperature measurement（Infrared Range700-1700℃）

3.12.Melting Crucible:QuartzBN Configured with different materials as required

3.13.Strap Width:1-10mm WideThickness ≥20μm
