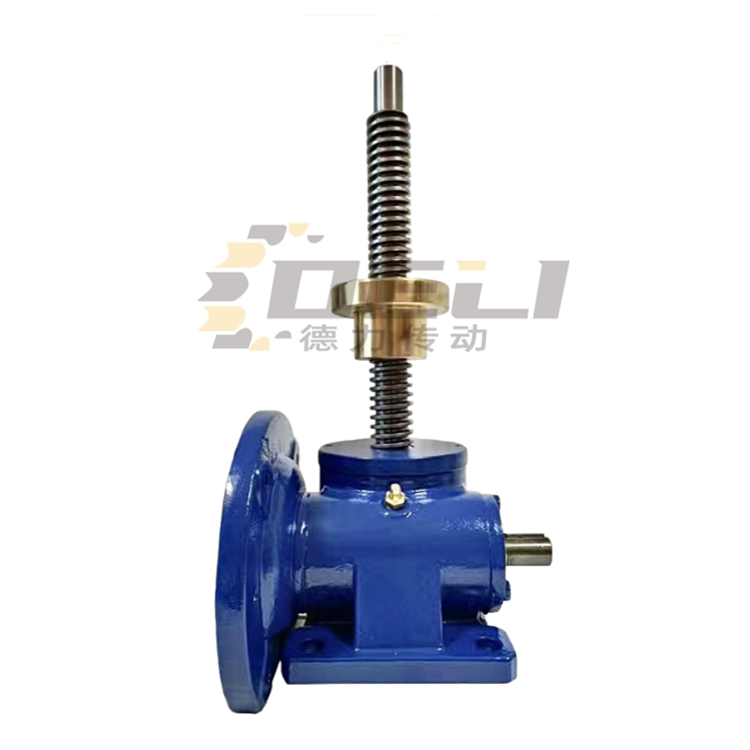

ZA (Trapezoidal screw thread type)Screw jack with worm gear It is a fundamental lifting component featuring a compact structure, small size, light weight, broad power sources, noiseless operation, easy installation, flexible usage, diverse functions, various matching forms, high reliability, and long service life.，Widely used in industries such as machinery, metallurgy, construction, and hydraulic equipment, featuring multiple functions including lifting, lowering, advancing with accessories, flipping, and various height adjustments.Can be used individually or in combination, capable of accurately controlling and adjusting the lifting or propulsion height according to a certain program, and can be powered by an electric motor or other power source.。It comes in various structural and assembly configurations, with lifting heights customizable to meet customer requirements.。

ZAType (trapezoidal screw type) is suitable for low-speed, low-frequency applications., Primary components include: precision trapezoidal screw and high-precision worm gear sets.Economic:Compact structure, easy operation, convenient maintenance；Low speed, low frequency: mainly used for high load, low speed, and infrequent operation environments.；Maintain Load Capacity: The trapezoidal screw features an automatic locking function, allowing it to maintain load capacity even without a braking device. Note:In the event of significant vibration or impact loads, the self-locking function may fail. Please add an external braking device.

ZAScrew JackFeatures:

◆Unique modular design;

◆ Eco-friendly appearance structure design with independent intellectual property rights.

◆ German-imported worm gear cutting tools are used to process worm gears.

Thread surface hardening treatment, surface hardness reaches500-550HV；

Low friction, long service life.

◆ Widely powered, can be driven directly by a motor or other power source, or manually.

◆Diverse output types;

ZBSeries ball screw lifters are suitable for high-speed, high-frequency, and high-performance equipment.ZBSeries ball screw lifting machines are mainly composed of precision ball screw units and high-precision worm gear units, offering high efficiency. Utilizing ball friction, they enhance the overall machine efficiency and require only a minimal driving source.Can generate a significant driving force.

Ball screw is the ideal product for converting rotary motion into linear motion, or vice versa. The structure of the ball screw lifting machine:

The structure of ball screw units is traditionally divided into internal recirculation structures (represented by circular and elliptical reversers).Two types of structures are available: the internal circulation structure (represented by pipe insertion) and the external circulation structure. Both of these structures are commonly used. There is no essential difference in their performance; the only distinction is that the internal circulation structure has smaller installation and connection dimensions, while the external circulation structure has larger dimensions for ball screw lifting machines. Currently, there are over 10 different structures for ball screw assemblies, but the most commonly used ones are: internal circulation structure; external circulation structure; end cover structure; and cover plate structure.

Ball screw principle:

1. Ball screw actuators, in accordance with the national standard GB/T17587.3-1998 and application examples, are used to convert rotational motion into linear motion; or linear motion into rotational motion, featuring high transmission efficiency and precise positioning.

2. When the ball screw jack acts as the actuator, the nut will convert the rotational angle of the screw into linear motion according to the corresponding pitch specifications. The passive workpiece can be connected to the nut via the nut seat, thereby achieving the corresponding linear motion.

Ball screw features:

1、Ball screw has a driving torque compared to sliding screw.1/3

2、Ball screw with high precision_

3、Ball screw micro feed

4、Ball screw, zero side clearance, high rigidity

5、Ball screw high-speed feed possible.
