Product Introduction

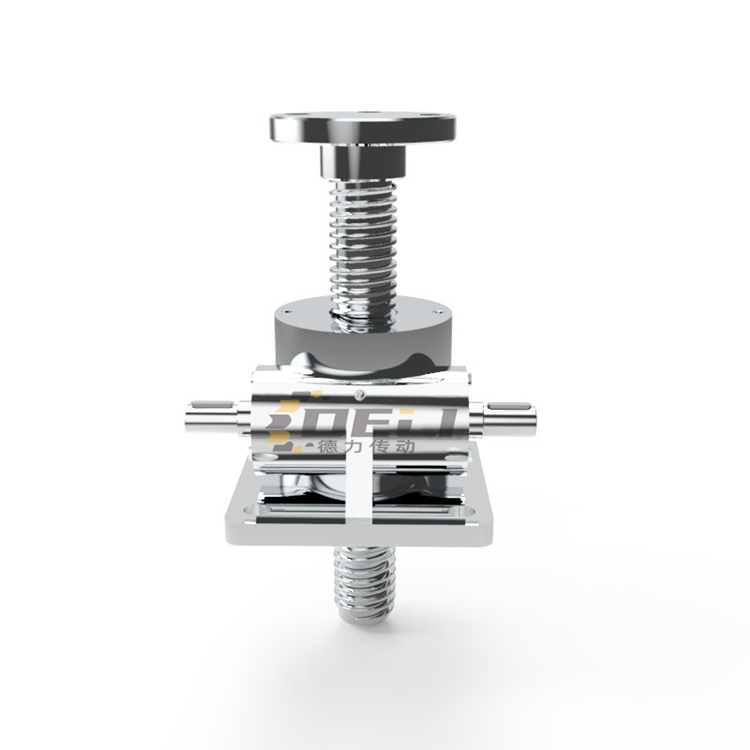

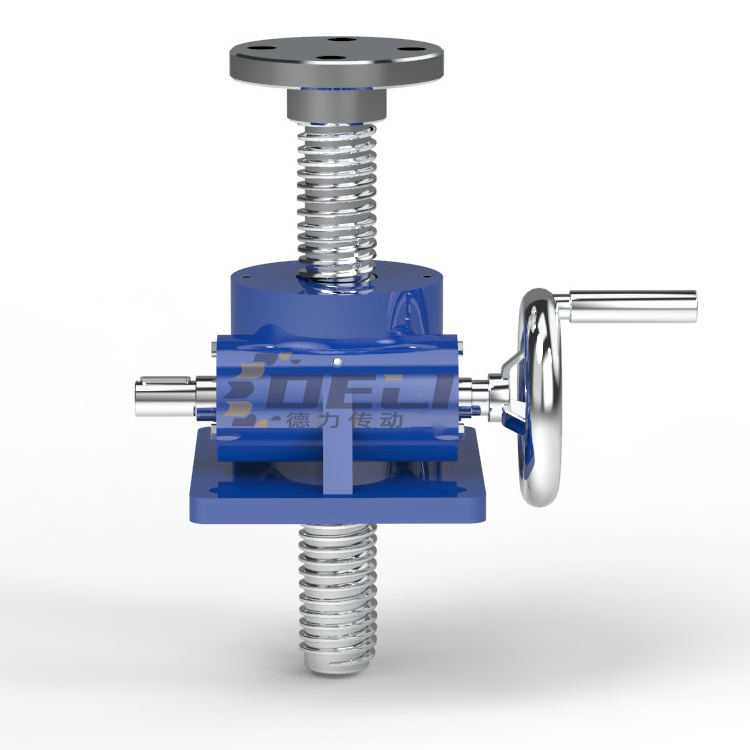

SMSeries Worm Gear Screw Lifts (Spiral Lifts))An electromechanical motion execution unit ingeniously combines motors, deceleration systems, screw drives, and other components. It can be used individually or in a modular configuration, akin to building blocks, connecting through right-angle turners, couplings, and connecting rods. It can accurately control the lifting, reciprocating, and flipping movements of mechanisms. This unit, primarily featuring worm gear and screw lifts, can replace traditional hydraulic and pneumatic transmissions in various applications, offering engineers vast design space for developing products in today's digital era. This series...ScrewThe rotating lifting machine features an automatic locking function.Utilizing a unique square groove shell design, enhancing the shell's heat dissipation capabilities, and extending the service life of lubricating grease. The choice of nodular cast iron for the shell material significantly boosts the shell's strength and performance, as well as its resistance to high temperatures./Widely applicable under low temperatures. Square tail cover design to prevent the lead screw from rotating independently. Advanced processing equipment and assembly techniques ensure high product quality. The innovative design concept creates products with strong impact resistance, high strength, low noise, long lifespan, and compact size.Widely applied in various industries such as solar energy, metallurgy, food, and water conservancy.Safety nut design for monitoring product wear, eliminating potential hazards. Combinable with reducers and various accessory modules to meet any customer requirements.
Product Advantages
1. Rigidity,Capable of localization,Generally, it can self-lock even after a power outage.
2. The system structure is simple and compact, requiring no complex pumps, valves, oil tanks, gas sources, or piping systems.
3. Low noise, no fluid leakage, and minimal environmental impact. It is an ideal green and environmentally friendly product.
4. Due to the presence of a deceleration mechanism, the system can achieve the effect of a small horse drawing a big cart, i.e., transmit a large torque with a smaller motor.
5. Can form a closed-loop server control system, achieving automated control.
6. The worm gear screw jack features precision mechanics, compact design, durability, minimal maintenance time, and a long service life. Additionally, it operates without the need for other mechanical devices, relying on a clutch,
Axles and electric motors, a relatively simple drive solution can achieve certain linear or rotational movements.
7. Use standard original parts,Simple assembly,Save you time.
8. InstallationEasier to use, with extended operational runtime; due to heat dissipation, the lubrication cycle is improved.
Application Scope
1. Enhancements, displacement, clamping in the production line.TranslateTransfer-to-Execution Device
2. Metallurgical equipment including mounting and clamping, lifting, and flipping devices
3. Hoisting machines for vehicle manufacturing, flexible jigs, and welding lift tables.
4. PhotovoltaicIndustry single crystal silicon, multi-crystal silicon ingot furnace lifting mechanism, and solar power generation tracking device
5. Aerospace,Defense military, remote-controlled execution devices for telescopes, etc.
6. Lifting Stage Hoist Equipment
7. Shipbuilding, water conservancy, food and storage, foundry industries, equipment, woodworking machinery, and various food machinery actuators
8. Lifting devices for lathe and gantry-type machine tools
Selection Considerations
◆Work schedulePercentage of work time within 10 minutes，30℃ Temperature Coefficient = 0.85，The SJA series standard tooth screw jack operates at 30%.，Ball screw lift mechanism operates in a working mode of50%，When the actual load is less than the rated load
