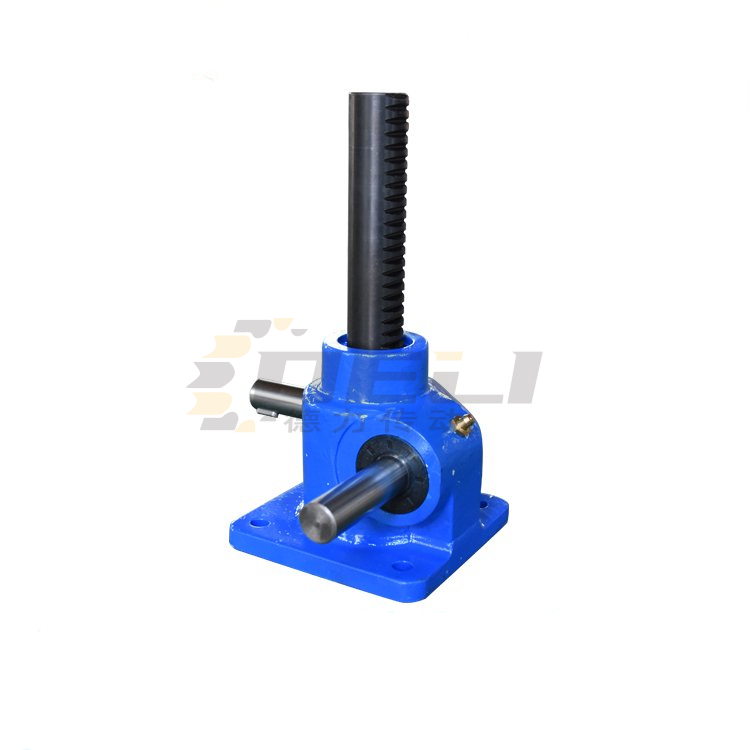

RNSeries J gear rack lifting machine:1. It is a basic split-type model; specifications include RNJ10-RNJ50, available in 3 specifications depending on the direction of the output shaft. 2, driven by a cylinder, without a reduction, capable of movement.
RJ-4S Series Gear Rack Elevator:1. It's the basic combo model, with specifications including RNJ10-4S to RNJ50-4S, adjustable in size and stroke to meet specifications. 2, capable of bearing heavy loads.
1. RJ-4SB series rack and pinion lift 1, equipped with a gearbox on the drive shaft of the RJ-4S series, can be directly connected to the motor. 2, suitable for cleanroom environments when not using gears or sprockets.
RJ4SH Series Gear Rack Lifter 1: Equipped with a turbine reducer on the drive shaft of the RJ-4S series, it can be directly connected to the motor. 2: The turbine reducer features a reduction ratio, making it compatible with standard motors or servo motors.

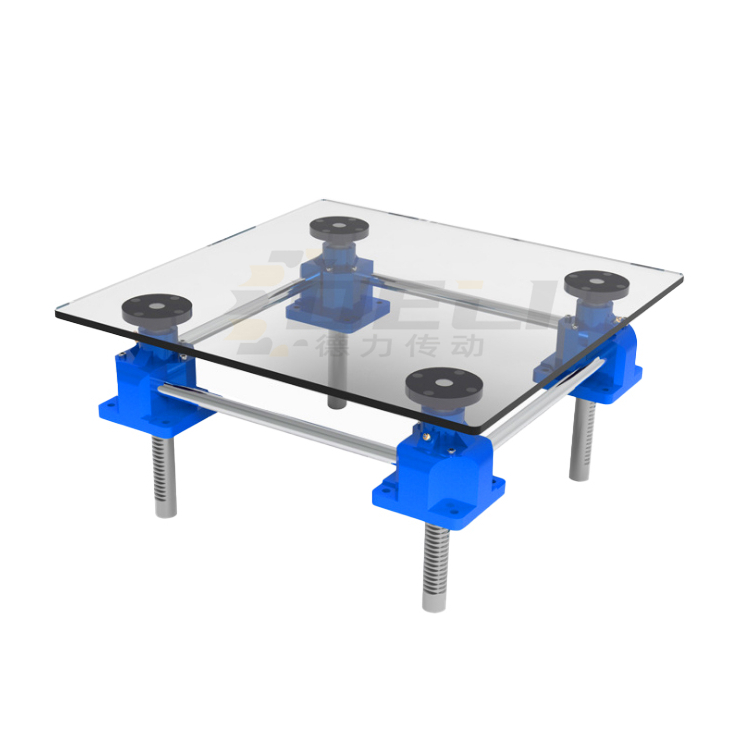

1. Operating Principle：Relying on the interlocking coordination between gears and racks, it ensures synchronized up and down movement of four or more support points, thereby achieving smooth elevation and descent of the work platform. The synchronization error of the four support points can reach0.5mm
2. Synchronous Elevator Structure and Performance：① The synchronous lifter is a structure composed of a gear box with gears and racks, connected to an axis, designed for synchronizing the upper and lower surfaces during lifting or lowering operations. ② The gear box contains several gears that mesh and operate almost silently. ③ The up/down movement operates normally even under less than 50% bias pressure. ④ Its guide rail is composed in a modular form, featuring standardized components. The lifter is a passive type, powered by a cylinder, which serves as a guide and synchronization unit.
3. Features of the synchronized lifters：① Genuine quality and simple design, compact parts, strong durability; can be assembled according to the designer's requirements, reducing design time. ② Model Selection: When choosing a model, select different types based on varying loads, strokes, and series. ③ Spindle Distance Selection: Note that when the spindle distance exceeds the corresponding length, intermediate support should be added. ④ Up/Down Action: Smooth, light rotation with minimal noise; the gear and rack structure ensures engagement, maintaining synchronization even in harsh environments.
4. Widely applicable：Suited for assembly lines on automated production or logistics systems Automated Warehouse Automated photovoltaic production line Waiting for general industrial machinery equipment.

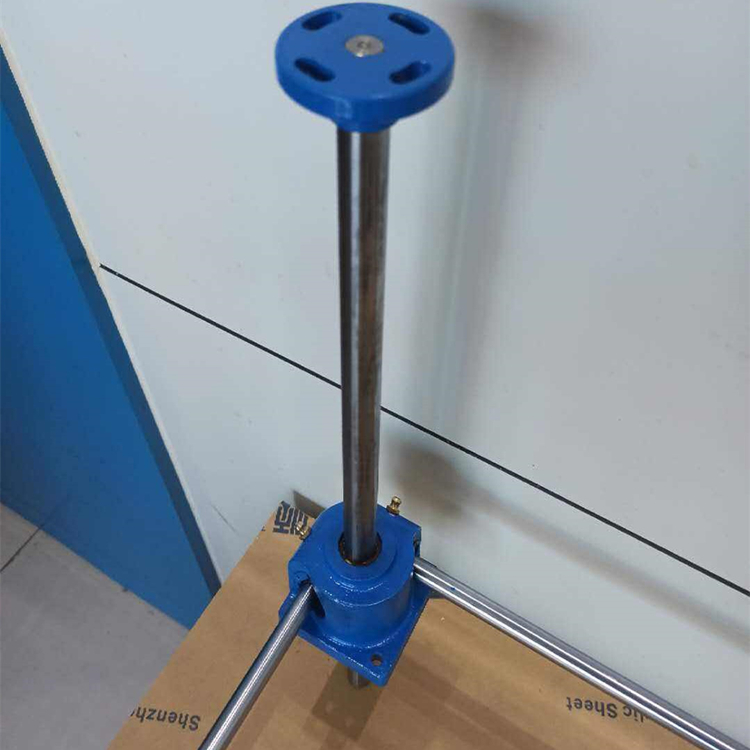

Lifter Power BaseThe SE and lift jack rely on the interlocking cooperation between gears and racks to ensure synchronized lifting of four or more support points, thereby achieving smooth lifting of the work platform. The synchronization error of the four support points can reach 0.5mm.
Power baThe SE lifter undergoes passive lifting and comes in three fundamental types: the IP series (standard), the IPC series (cleanroom), and the IPL series (linear guide rail).
Rack jack elevator is Power baThe types of SE lifts extend, powered by an electric motor, they self-drive by rotating the central drive shaft, causing the rack to move in a straight line, thereby achieving synchronized and smooth lifting or lowering.
Lifter Power baSE and rack jacks are widely used in industries with high platform lifting requirements, such as FPD conveying equipment, automatic storage conveying equipment, semiconductor conveying equipment, etc. After surface treatment, they can be applied in cleanrooms.
Power baThe SE elevator and rack jack elevator can be customized according to practical parameters.
