RNSeries J Rack and Pinion Elevator:1. It is the basic separable model; specifications include RNJ10-RNJ50, available in 3 specifications based on the direction of the output shaft. 2, powered by a cylinder, it does not have a reduction, and can achieve movement.
RJ-4S Series Rack and Pinion Lifts:1. It is the basic combination model; specifications include RNJ10-4S to RNJ50-4S, adjustable for size and stroke as required. 2, capable of handling heavy loads.
RJ-4SB series rack and pinion lift 1, equipped with a gearbox on the drive shaft of the RJ-4S series, can be directly connected to the motor. 2, suitable for cleanroom environments when not using gears or sprockets.
RJ4SH Series Gear Rack Lifters 1, equipped with a turbine reducer on the drive shaft of the RJ-4S series, can be directly connected to the motor. 2, the turbine reducer features a reduction ratio, allowing it to be compatible with general motors or servo motors.
1. Working Principle：Reliant on the coordinated interaction between gears and racks, it ensures the simultaneous up and down movement of four or more support points, thereby achieving smooth elevation of the work platform. The synchronous error of the four support points can reach0.5mm
2. Structure and performance of synchronous lifters：① The synchronous lifter is a structure composed of a gear box with gears and racks, connected to an axis, used for synchronizing the upper and lower surfaces during up/down operations. ② The gears inside the gear box mesh and rotate, resulting in almost no noise. ③ The up/down movement can still operate normally even when receiving less than 50% of bias pressure. ④ Its guide rail is composed in a unit form, with standardized components. The lifter is a passive type, powered by a cylinder, which serves as a guide and synchronization unit.
3. Features of the synchronous lifter：① Genuine quality and simplified design, compact components, high durability, customizable to meet the designer's specifications, reducing design time. ② Selection of Model: When choosing a model, consider different loads, strokes, and series for the appropriate option. ③ Selection of shaft spacing: Be mindful that when the shaft spacing exceeds the corresponding length, intermediate support should be added. ④ Up/down action: smooth and quiet rotation, gear and rack structure ensures engagement, maintaining synchronization even in harsh environments.
4. Wide Application Range：Suited for assembly on automated production lines or logistics systems Automated Warehouse Automated photovoltaic production line Waiting for general industrial machinery equipment

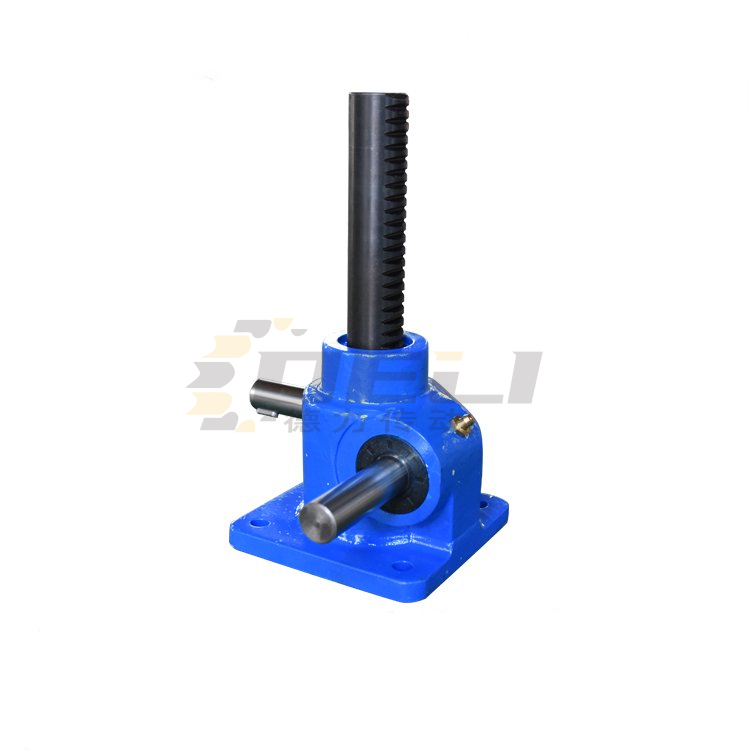

RJ Series Rack and Pinion Elevator
1. It is a basic split-type model, available in specifications from RJ10 to RJ50. Depending on the direction of the output shaft, there are 3 different types.
2. Driven by cylinders, it has no built-in deceleration and can achieve movement.
RJ-4S Series Rack and Pinion Lifts
1. This is a basic combination model, with specifications ranging from RJ10-4S to RJ50-4S, and can be customized for size and stroke as required.
2. Can withstand heavy loads
RJ-4SB Series Rack and Pinion Lifts
Gearboxes can be mounted on the drive shafts of the RJ-4S series for direct connection to the motor.
2. Suitable for cleanroom environments without the use of gears or sprockets.
RJ4SH Series Gear Rack Elevator
The turbo reducer can be directly connected to the motor on the drive shaft of the RJ-4S series.
2. Turbine reducers have a reduction ratio, thus they can accommodate general motors or servo motors.
