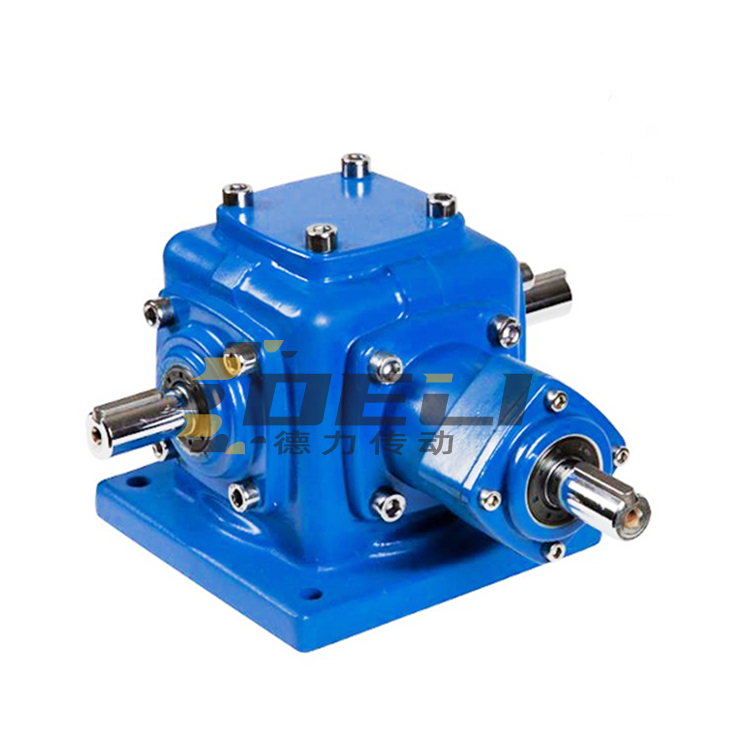

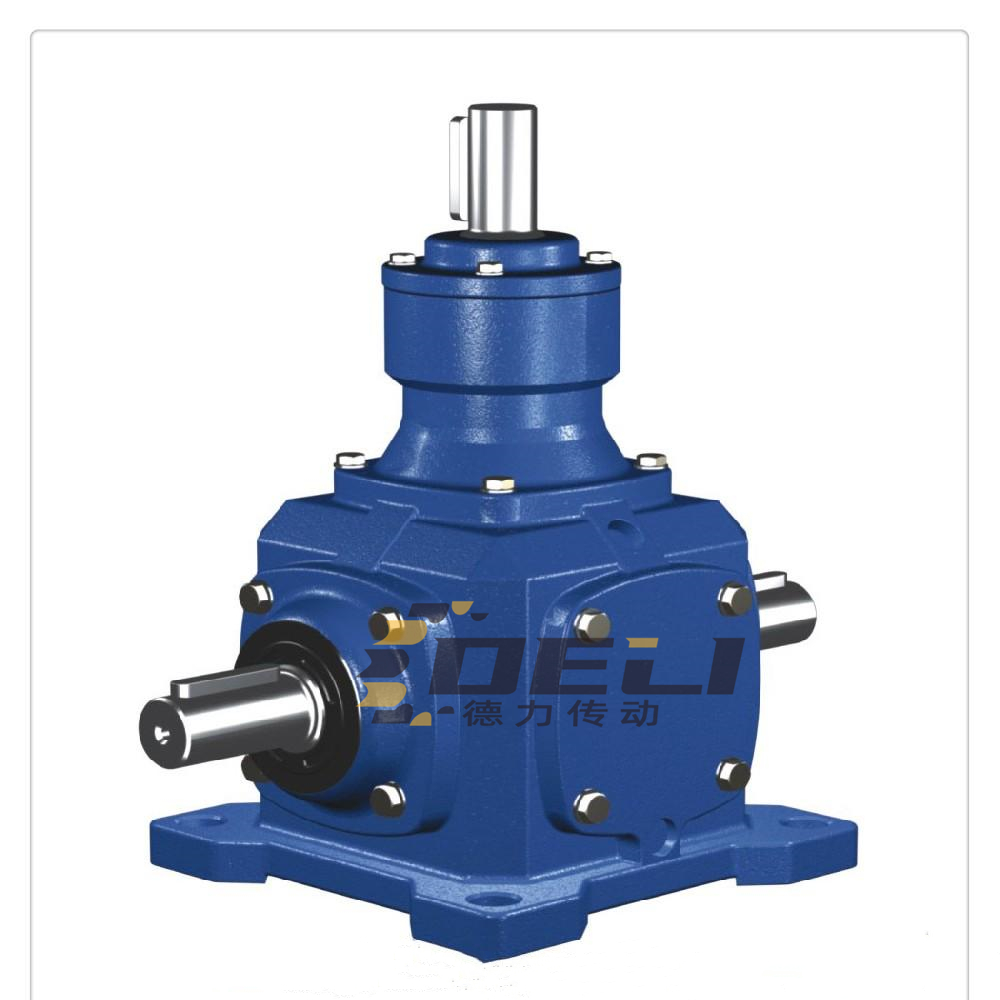

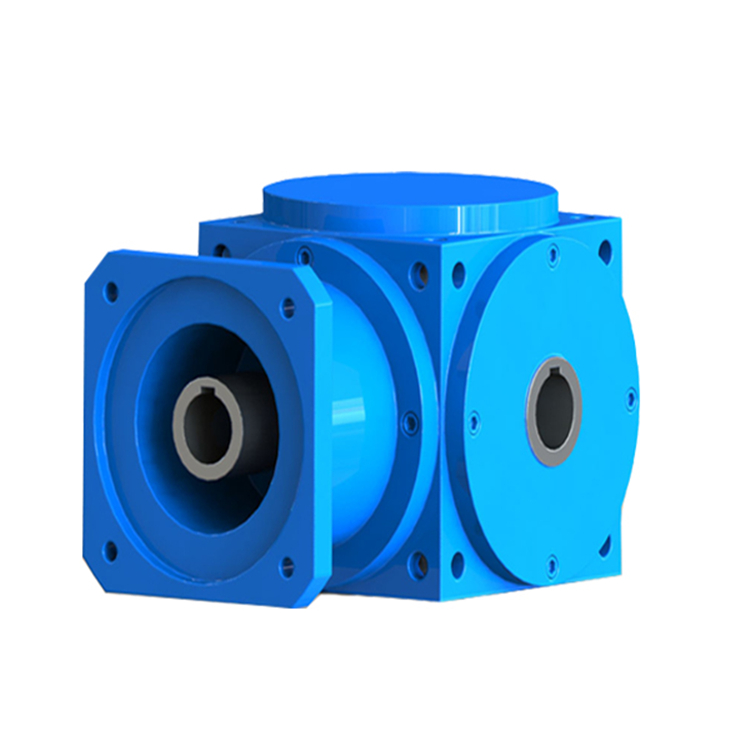

Gearbox, also known as a reverser or directional drive, is a power transmission device, a series within减速机减速机, widely used in the industrial sector. Gearboxes have now been standardized and offer a variety of specifications. They come in single-axis, dual transverse-axis, single longitudinal-axis, and dual longitudinal-axis options. Gear ratio1:1, 1.5:1, 2:1, 2.5:1, 3:1, 4:1, 5:1 are all actual drive ratios. The steering box can run in both directions smoothly at low or high speeds. When the gear ratio is not 1:1, the transverse axis input and longitudinal axis output are for deceleration, while the longitudinal axis input and transverse axis output are for acceleration.
1. TPre-installation inspection of series steering gears:a. The installation shaft should be cleaned prior to use. Inspect for any dents or dirt on the installation shaft; if present, all should be addressed._Clean.bThe temperature range for the use of the reversing switch is:0～40 ℃。 cCheck if the mating dimensions of the holes connected to the switch meet the requirements; the tolerance of the holes should beH7。 d．Prior to use, it should be_Replace the clogged location with an exhaust plug._The reverser exhausts internal gases during operation.
Product Structure:
1. Chassis: Made of high-strength FC-25 cast iron.
Gear: Made from high-purity alloy steel 50CrMnT, heat treated and ground after carburizing and quenching process.
3. Spindle: Made of high-purity alloy steel 40Cr, heat treated for high suspended load capacity.
4. Bearings: Equipped with heavy-duty cone bearings.
5. Oil Seals: Utilize imported double lip oil seals with dust and oil leakage prevention capabilities.
Performance Features:
T Series Helical Bevel Gearbox Reversing BoxStandardized, diverse variety, all gear ratios are actual transmission ratios, average efficiency reaches98% 。
2. Helical bevel gear boxAvailable in single-axis, dual transverse-axis, single longitudinal-axis, and dual longitudinal-axis options.
3. The gear box can operate in both directions, providing smooth transmission at low or high speeds, with low noise, minimal vibration, and high load-bearing capacity.
4. When the speed ratio is not 1:1, the horizontal axis input and vertical axis output result in deceleration, while the vertical axis input and horizontal axis output lead to acceleration.
Technical Specifications
Ratio Range:1:1 1.5:1 2:1 2.5:1 3:1 4:1 5:1
Torque Range:11.2 — 5713 Nm
Power Range:0.014 — 335 kW
