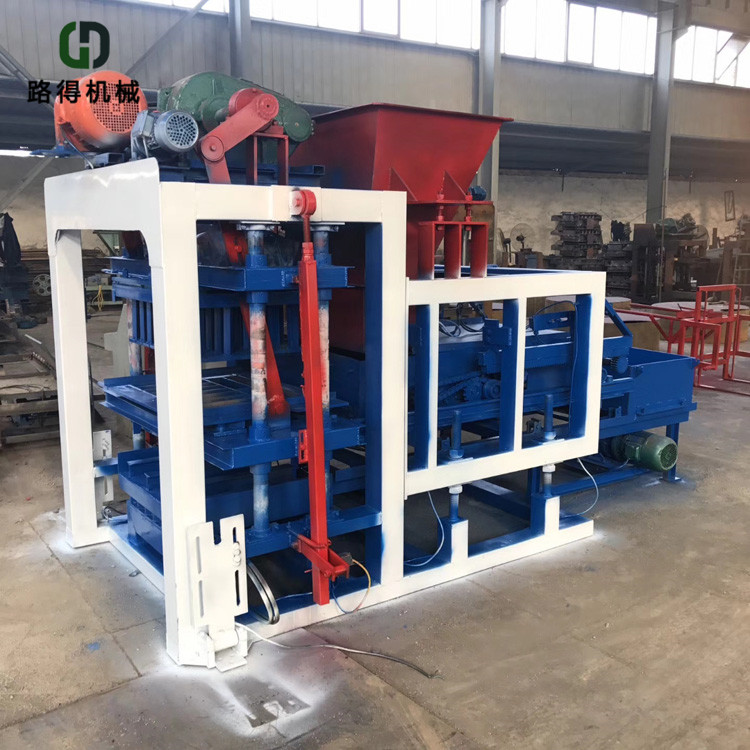

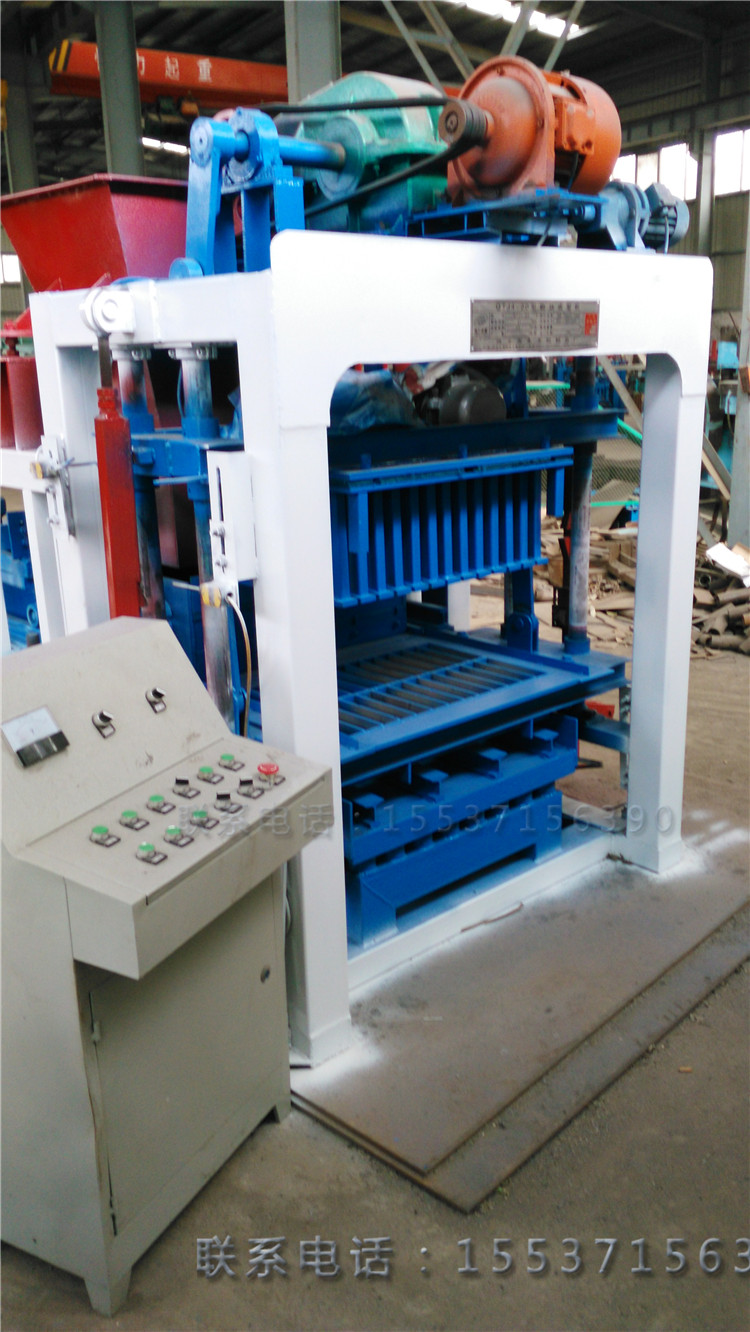

4-15 cement unburned brick machine Performance characteristics:
4-15
The new semi enclosed feeding hopper is equipped with linear reciprocating blades inside, which quickly and evenly add materials to the brick machine mold. By utilizing effective vibration, the vibration force is evenly transmitted to all parts of the mold box, greatly improving product density and mold box service life.
Using imported hydraulic components and seals, and employing high dynamic performance proportional valves, the oil volume and pressure can be adjusted according to different working requirements to accurately control the movement of key components.
The Bosch pneumatic damping system from Germany significantly reduces the noise and adverse effects of vibration on equipment, making the equipment more stable and reliable.
Made with high-precision, high-strength castings and special welding techniques and materials, it has good rigidity and long vibration resistance life;
4-15 The cement brick machine adopts a four-bar guide system to ensure precise movement of the pressing head and mold.
This machine adopts tabletop vibration pressure forming and reciprocating guiding feeding device, with short forming cycle, high production efficiency, dense and strong block quality, and precise size.
By adopting the technology of integrating machinery, electricity, and hydraulics, every cycle of equipment operation is consistent, resulting in high stability and low scrap rate of formed products.
One machine with multiple uses can produce different specifications of porous bricks, hollow blocks, curbstones, pavement bricks, as well as cement products such as grass planting bricks, slope protection bricks, etc. by replacing the brick machine mold.
YXQ4-15 cement brick machineTechnical specifications
Molding area | 800x500(mm) |
Forming height | 32-200(mm) |
Molding cycle | 11-15(s) |
Tray size | 850x550x30(mm) |
Host weight | 8.5(t) |
Host power | 26.5kw |
YXQ4-15Cement Brick Machine Production Quantity Table:
Specification | Product | block/board | block/day | block/year | Remarks |
Standard brick | 240x115x53mm | 26 | 49,920 | 29,952,000 | 8Hrs/day 2 shift |
Hollow block | 390x190x190mm | 4 | 7680 | 4608,000 | |
Road tiles | 200x100x60mm | 14 | 23,040 | 13,824,000 |
tags: 4-15 brick machine, 4-15 unburned brick machine, 4-15 cement brick machine, 4-15 fully automatic brick machine

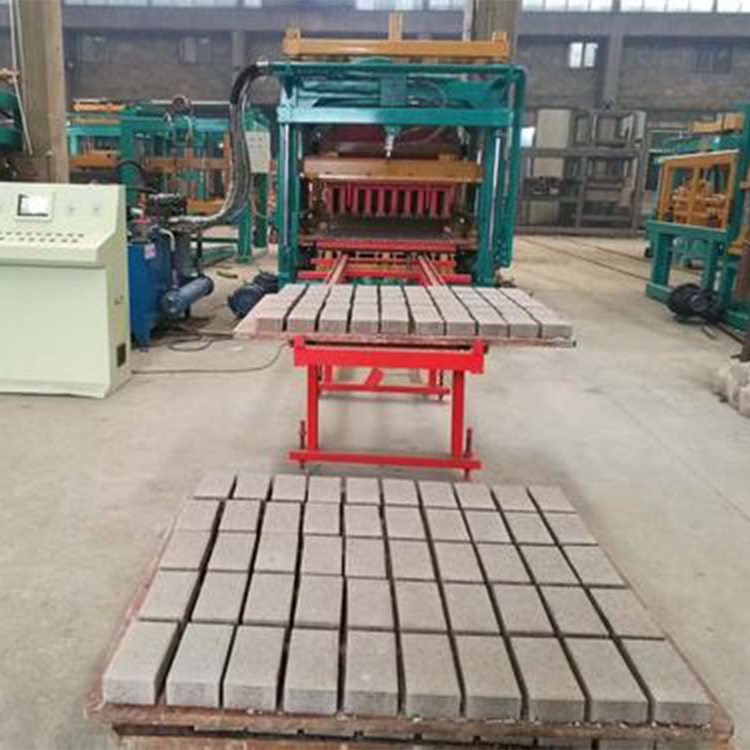

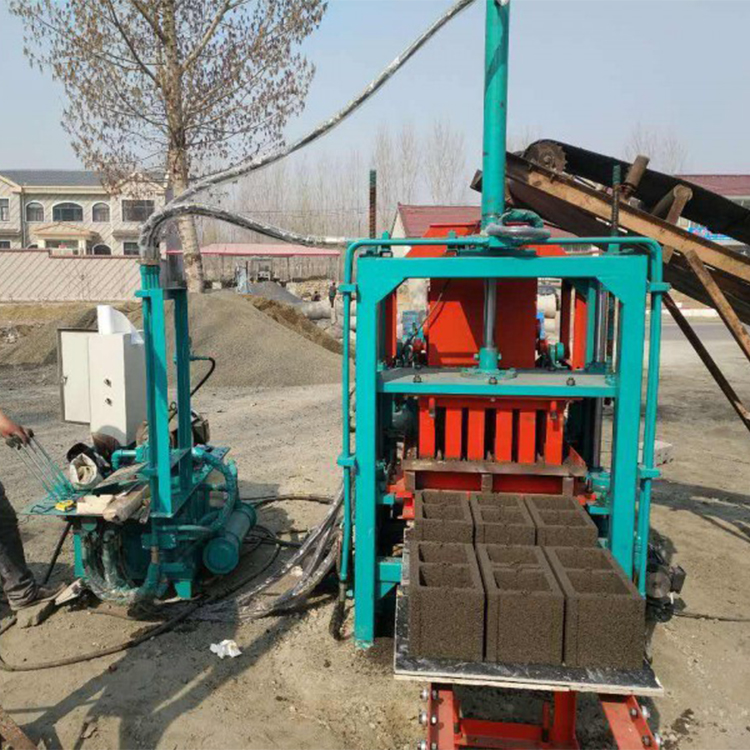

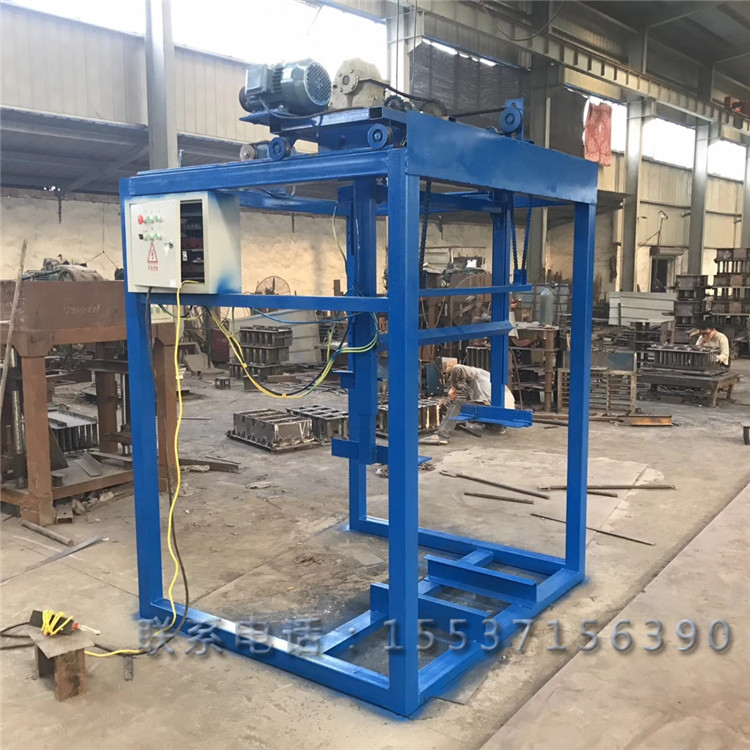

Realistic picture of production in the workshop of the source manufacturer
