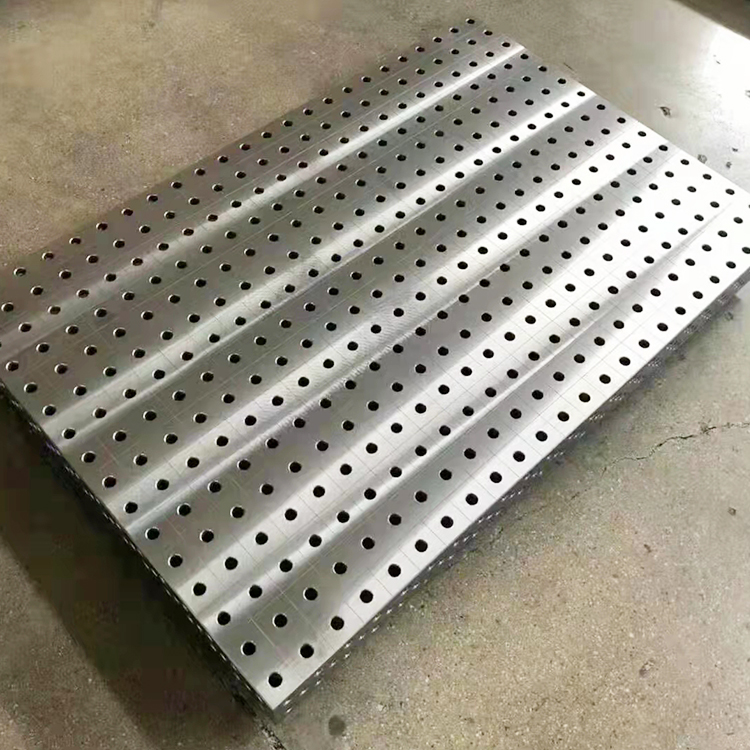

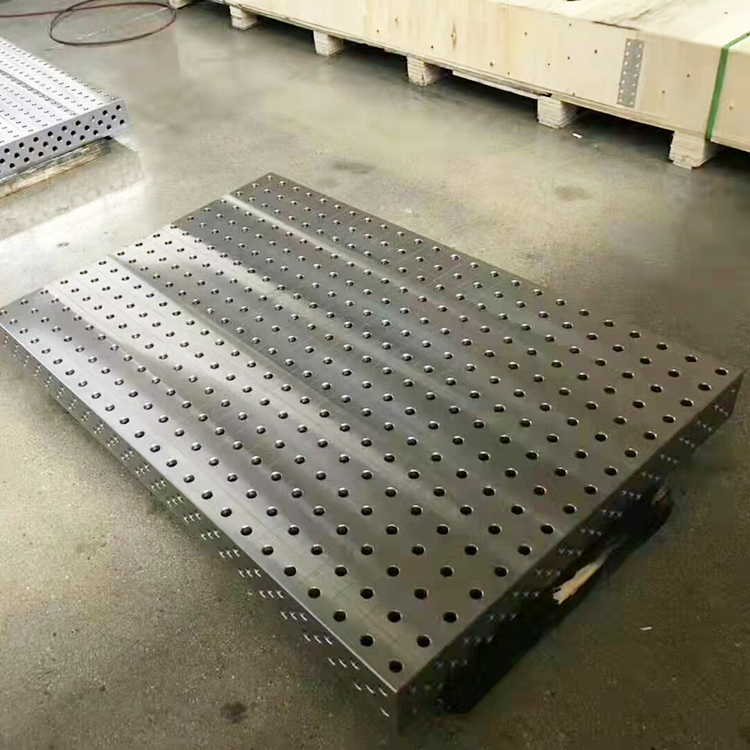

3D Flexible Welding Platform

The flexible welding platform boasts excellent load-bearing capacity and rigidity stability. Its five surfaces are all machined with regular holes and marked with cable lines. The flexible welding platform can be conveniently extended and expanded, allowing for easy combination. The extended standard surface can be modularly positioned and clamped for direct connection. The installation, adjustment, and positioning of workpieces effectively showcase the universal functions of the flexible 3D combined welding fixture system, especially in applications involving large workpieces.

Five work surfaces of the workbench are 100100 mm (D28 series) or 5050mm (D16 series) holes with grid markings. They offer excellent flatness, parallelism, perpendicularity tolerances on all five faces, as well as hole-to-hole positioning accuracy. The alignment on the work surface and the combination with other modules meet sufficient precision requirements for use. The base work surface dimensions start from 10001000mm to 4000mm2000mm is available for selection, and sizes can be customized.
