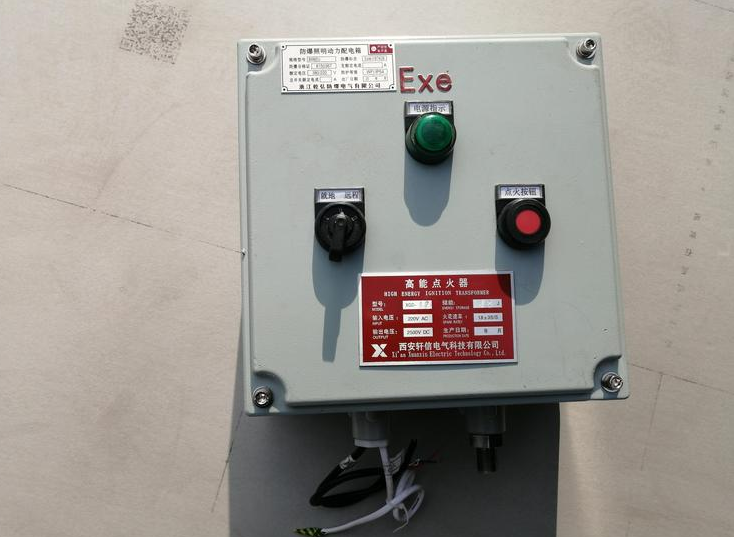

12J Ignition Control Box High-Energy Igniter

The company boasts a team of technical experts in the field of combustion equipment and combustion control technology, and collaborates with multiple universities and research institutions to develop and produce combustion equipment products and explosion-proof electrical appliances. Professional manufacturingHigh-Performance Igniter、Explosion-Proof High-Energy Ignition Device，Portable High-Energy IgniterRemoteRemote Electronic Ignition Device，Plasma Igniters；Flame Detector、Ultraviolet Flame DetectorExplosion-Proof Flame DetectorIon Flame DetectorOur company offers a comprehensive range of products including UV probes and ion detection electrodes; remote/local automatic ignition cabinets, ignition detection and combustion control cabinets; various ignition transformers, ignition systems, fuel systems, pneumatic/electric actuators, and custom control systems. We also provide a full suite of engineering services for combustion devices in industrial furnaces/boilers, including gas detection and alarm systems, torch ignition detection, and related combustion equipment technical services. Our products are widely used in the petrochemical, metallurgical, coking, power, coal chemical, and energy-saving environmental protection industries.

Our company adheres to the philosophy of "Quality as life, customer-centric, market-oriented, and development through credibility." We have established a sales system based on quality, secured by credibility, and focused on service. We have introduced professional technical talents, analyzed customer needs, formulated comprehensive technical solutions according to on-site conditions, and are committed to providing cost-effective technical services. Together with our clients, we strive for excellence and aim to create a bright future!

XGD－12High-Energy Ignition DeviceOur product is primarily used for automatic ignition in gas and oil industrial burners, featuring reliable ignition, long lifespan, and high-temperature resistance at the ignition end, anti-coking properties, and self-cleaning capabilities.

I. Technical Specifications:

Power Voltage: 220V ±10% 50/60Hz

2. Fuel Compatibility: Light Oil, Heavy Oil, Gasoline

3.Ignition RodThermal Resistance: 1300℃

Ignition Frequency: 10-14 times/s

Spark Energy: 12J

Two,Ignition DeviceBox Dimensions

Dimensions: 230mm x 150mm x 100mm

Ignition Rods and Ignition Cables

1. Ignition rod front-end material: 2520 high-temperature alloy; SEMND high-temperature materials. Ignition rod dimensions are available upon request.

2. The ignition cable is a specialized high-energy cable, capable of withstanding a voltage of 20kV/AC, with an operating temperature range of -60℃ to 200℃. The length is supplied according to customer requirements, but should not exceed 80 meters.

Four: Installation and Wiring

A Φ18.5 hole is drilled in the burner, simply twist the ignition rod in place. The ignition end of the rod is installed 30 to 50mm in front of the nozzle. This ignition rod features a new structure and does not require adjustment of the discharge distance.

2. This series of ignition devices consists of three main components: the housing, a specialized high-voltage cable, and the ignition rod. During installation, simply connect the ignition device housing and the ignition rod using the specialized high-voltage cable, and the power cord is 220V AC.

V. Usage

At ignition, the ignition device should be turned on first, followed by fuel injection (or gas) ignition. The ignition process should generally not exceed 8 seconds.

When lighting, reduce the auxiliary combustion air and wait for the fire to ignite before gradually increasing the auxiliary combustion air.

Fuel should be well atomized; poor atomization quality affects the success rate of ignition.

4. The ignition device should be operated for 6-8 seconds before taking a 30-second break to avoid continuous long-term use.
