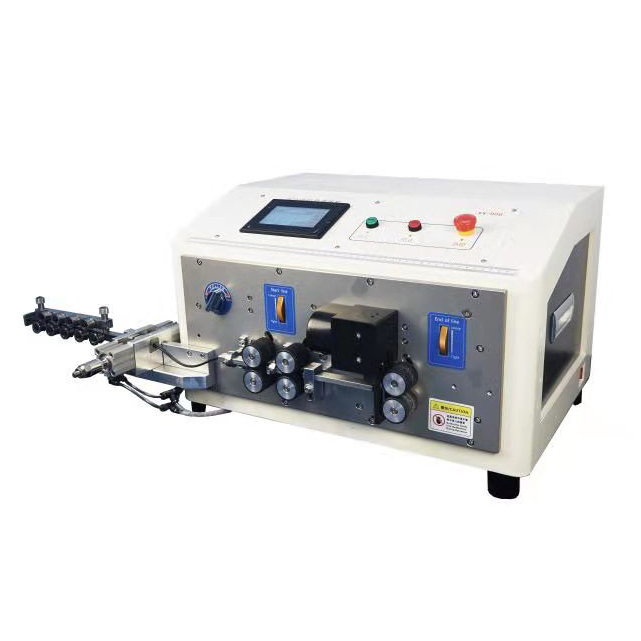

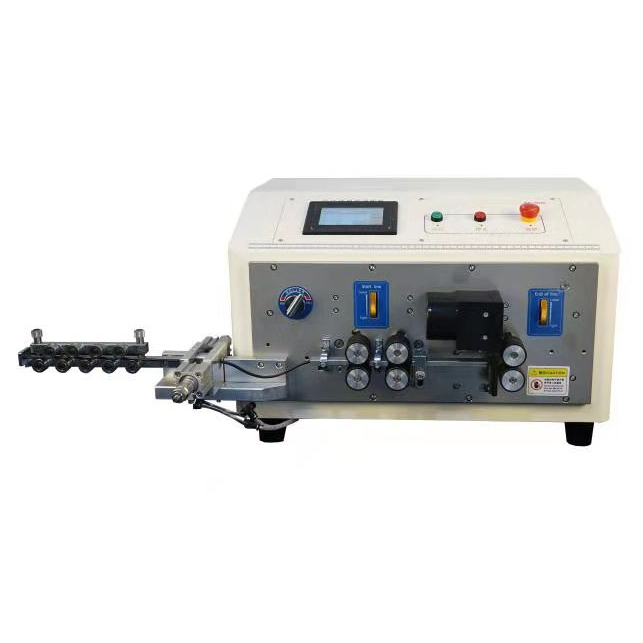

Features Description
Microcontroller-based self-developed motion control board
4.3-inch full touch LCD display
Low-noise hybrid segmented motor driver
One-touch correction for wire material length tolerance
Unique smooth design
One-step cutting for round sleeve wire, both ends peeled for inner and outer sheath
Parameter Description
Type Number | YT-906 | Outer Diameter of Cut Thread | Ø1-Ø10mm |
Electricity Source | AC220V50/60HZ | Cutting Line Core | 2-core/3-core/4-core/5-core/6-core/7-core/8-core |
Body Dimensions | 470mm*450mm*350mm | Cutting Line Length | 0.1-99999.9mm |
Airframe Weight | 36.5kg | ShellLength | 剥头 0.1-250mm、Tail剥除0.1-70mm |
Blade Material | Imported Tungsten Carbide/High-Speed Steel | Chinese剥段数 | Customizable |
剥线精度 - Stripping Precision | Silent Mixed-Type Stepper Motor 0.01mm | Note Function | Automatic In/Out Line、Timed activation、Pulse adjustment |
Rated Power | 700W | ||
Product Available | 100mm/500mm/1000mm（1300Thread/1100Thread/900LineEveryHour） | ||
Additional Equipment | Automatic Line Feeding Rack, Wire Retainer, Long Line Conveyor Belt | ||
