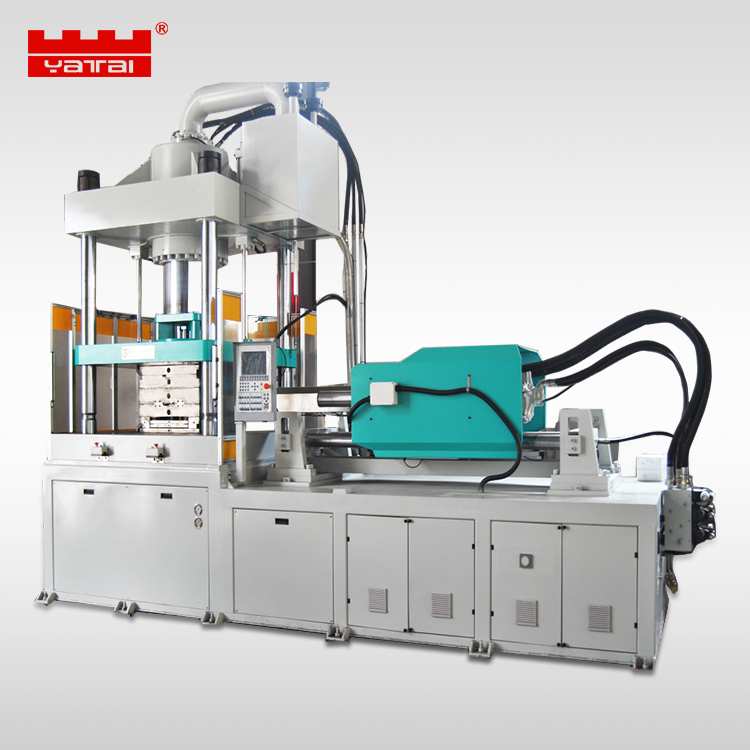

Features:
1. Vertical mold closing, side injection, suitable for insert molding.
2. Quick mold closing, low-pressure locking, automatic mold opening in case of abnormality, unique design.
3. Automatic fault display for easy and effortless maintenance.
4. Electric and hydraulic components, quiet and durable.
5. Multi-step temperature control, multi-step injection pressure, shot speed, and back pressure non-adjustable, suitable for plastic part molding.
6. Equipped with a finished hydraulic ejector unit.
7. Options for single slider S, double slider 2R, and round plate R models to increase production capacity.
Technical Specifications:
ModelModel | Unit | YT-220T-G | |||
Injection System | Bolt diameterScrew Diameter | mm | 45 | 50 | 55 |
Theoretical Injection VolumeTheorfical Shot Volume | cm³ | 382 | 471 | 570 | |
Molding volume(PS)Max.shot Weight(PS) | g/0z | 355/12.5 | 438/15.4 | 530/18.7 | |
Injection RateInjection Rate | cm²/see | 198 | 245 | 297 | |
Injection PressureInjection pressure | kgf/cm² | 2489 | 2016 | 1666 | |
Screw speedScrew Speed Max | rpm | 0~220 | |||
Mold Closing System | Locking forceClampieng Force | tf | 220 | ||
Mold Opening ProcessOprening Stroke | mm | 450 | |||
Small model, thickMin.Mold Height | mm | 350/400 | |||
Wide mold spacingMax.Mold Height | mm | 800/850 | |||
Template SizePlateu Size | mm | 1250*790 | |||
Turntable DiameterDiameter Of Rctary Tabel | mm | 1360 | |||
Mold column spacingDisitance Betqeen Tie Bare | mm | 910*450 | |||
Top Travel ItineraryEjector Strke | mn | 125 | |||
Ejection ForceEjector Stroke | tf | 5.8 | |||
Others | High hydraulic pressureMax.Hydaulic Pressure | Kgf/cm² | 175 | ||
Actuating Oil VolumeOil Resservoir Capacity | l | 580 | |||
Motor PowerPump Motor Power | kw | 30(40HP) | |||
Electrical heating capacityBorrl Heating Power | kw | 13 | |||
Machine dimensionsMachine Dimensions | mm | 400*1600*3400 | |||
Total Machine WeightMachine Weight | kg | 9700 | |||
