SX Underwater Cutting Series

High-performance, cost-effective underwater granulation system

The SX Underwater Cutting Series includes granulating machines, centrifugal dewatering units, and water treatment systems, widely applicable to various polymers and thermoplastic resins. The system is highly efficient and stable, with flexible structure and minimal footprint. Utilizing German technology and craftsmanship, we serve high-quality clients globally. With nearly a thousand times of underwater granulating trial experience, we are capable of ensuring high investment returns for our users.

Advantages

◆Suitable for processing various types of plastics

Maximum production capacity up to 6000 kg/h; fully enclosed system, environmentally friendly with no pollution. Takes up minimal space, easy to operate.

◆Quick product switching – related cleaning, installation, and startup work is more convenient

◆ Granulating cutting blades are reliable and particle quality is exceptional.

◆Long blade life

Global Service Team, Standardized Professional Services

Application Scope

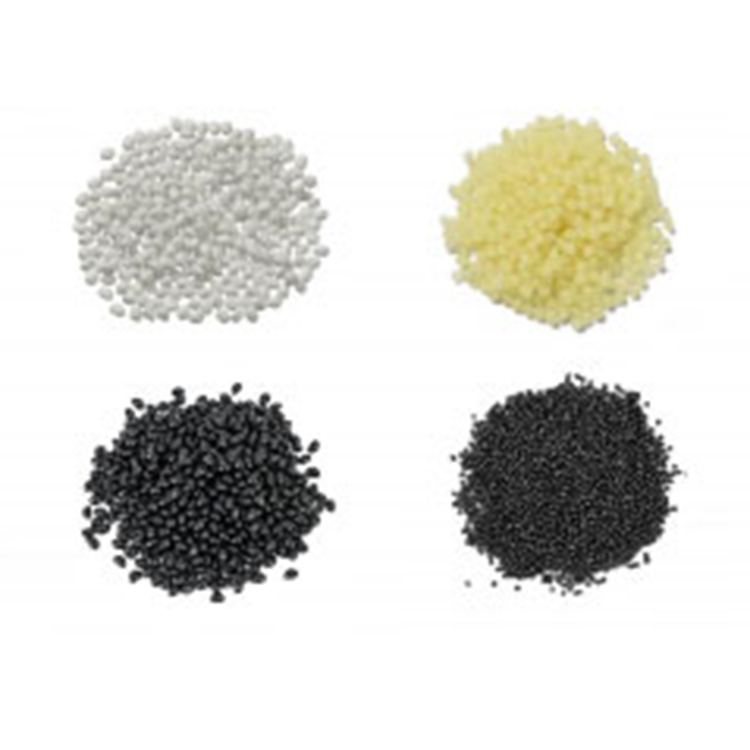

The SX series granulation system is suitable for processing modified materials, blends, color masterbatches, and recycled materials based on the following raw materials.

◆Polyolefins, such as LDPE, HDPE, PP

◆Polyethylene, such as PS, SAN, ABS; Acrylic resins, such as PMMA, PAN

Polymer, such as POM

Polycarbonate, such as PC

◆ Polyester, such as PET, PBT, PEN

◆ Polyamide, such as PA6, PA6.6, PA11, PA12; thermoplastic elastomers, such as TPE-S, TPE-E

◆ Polyurethane, such as TPU

Hot Melt Adhesive

Rubber

Natural and Synthetic Resins

◆Biopolymers, such as PLA, PHA, Bio-PA/PET/PP

Wood polymer

◆ Other Special Plastics

SX series is also suitable for micron particles.

System Structure Design Features

Ground Guide Rail Design

Electrically heated nozzle

Dehydration Machine Internal Pneumatic Interlock Structure

Self-contained pre-dewatering chamber

Self-contained water filter

Technical Specifications

System Components/Granulation System

Model

Pelletizer Power (kw)

Water System Brand

Dehydrator

Start-up Valve

Capacity (KG/H)

Particle specification (mm)

SX-100-SX-6000

1.5-18.5

KEFEI

LX-5X300~LX-5X8000

Standard Configuration

20-6000

Standard Particle Size: 2.5-5

Particle Size: 0.5-1 Micron

Pneumatic Feed Cutting Granulator

The cutting knife features pneumatic adjustment and feeding, simple and practical, easy to operate, and efficient sealing. The main body of the knife holder is made of stainless steel, and the connection is a multi-directional structure. The cutting knife uses a new type of compensation structure, with the blade equipped with an integral hard alloy for functional purposes.

Blade Length Measurement

2. Knife Pressure Display

3. Knife Pressure Adjustment
