Electronic moisture-proof cabinet

Key Product Technical Features:

Humidity Sensor: Utilizes a Honeywell high-precision humidity sensor with error less than ±2%RH, featuring module design for high accuracy and stability.

Humidity and Temperature Display: High-precision LED digital full-screen display, temperature range: -9℃～99℃, accuracy ±1℃. Humidity range: 0%～99%RH, accuracy ±3%RH. Stable display, long service life.

Humidity Controller: Equipped with a touch screen for setting, the concealed module design avoids contact danger, ensuring safety and reliability. The humidity setting features memory function, so no re-setting is needed after power failure. Microcomputer operates automatically, requiring no manual supervision.

Dehumidification Main Unit: Utilizing a technology collaboration with Japan, it employs high polymer moisture absorption material from overseas. The shell is made by pressing high-temperature-resistant plastic particles from abroad. Durable and non-deformable.

The main unit is equipped with a quick dehumidification module, capable of reaching the predetermined humidity range in a short time.

Power System: Utilizes a UL CE certified Switching Power supply system

Cabinet structure:

1. Cabinet Material: 1.0mm steel plate; manufactured with a numerical control punch press and CNC sheet metal equipment for high precision and excellent sealing. The cabinet surface is coated with imported resin using an automatic powder coating line, ensuring good appearance quality. Equipped with 360˚ rotating casters with brakes on the bottom for easy movement and stabilization.

2. Cabinet Door Window: Door frame window features a 5.0mm thick high-strength tempered glass. The door handle utilizes a flat-pressure, high-strength integrated handle lock with anti-theft function.

3. Load-bearing Deck Sheets: The deck sheets feature reinforced structural design for high strength and heavy load capacity, capable of supporting an even load of about 50kg. The deck height gap can be adjusted freely according to the height of the items placed, making storage more convenient and maximizing space utilization.

Dehumidifier Main Unit Operation Principle:The dehumidifying main unit of the electronic moisture-proof box uses high polymer environmental-friendly desiccant materials and employs a shape-memory alloy system for dehumidification. It features an intelligent microcomputer programmable control system. Once the desired humidity control level is set, the device operates automatically. The main unit housing is made of high-temperature flame-retardant materials to prevent safety hazards. With an automatic moisture absorption design during power outages, the chemical desiccant replacement function can still be used for dehumidification, ensuring humidity does not rise more than 10% within 24 hours. It does not sweat, overheat, or drip. Energy-efficient and with a long service life.

Product Working Principle:The dehumidifier's inner door is open while the outer door is closed. The high polymer environmental-friendly moisture absorbent material absorbs moisture from the electronic moisture-proof box. The inner door is then closed, and the outer door is opened. The heater warms the absorbent material, causing the moisture to evaporate outside the moisture-proof box. Shape-memory alloy and springs are responsible for the door's opening and closing. These steps are cyclically performed under the control of an intelligent microcomputer control system, gradually reducing the humidity inside the moisture-proof box.

Product Application Range:Ideal for moisture-proof storage of various electronic components, optical lenses, general laboratory instruments, microscopes, musical instruments, camera equipment, etc.

Selection Configuration:

1. Boxed LED Lighting

2. Over-temperature and over-humidity alarm

3. Smart Storage and Retrieval Product Features

4. Fast Dehumidification and Nitrogen Filling Function

5.485 Computer Network Monitoring

6. Optional stainless steel material for the cabinet and shelves

7. Accepts Size Customization

Electronic Desiccant Box Specifications:

NargonNaguanAnti-Static Electronic Moisture-Proof Cabinet Specifications Sheet:

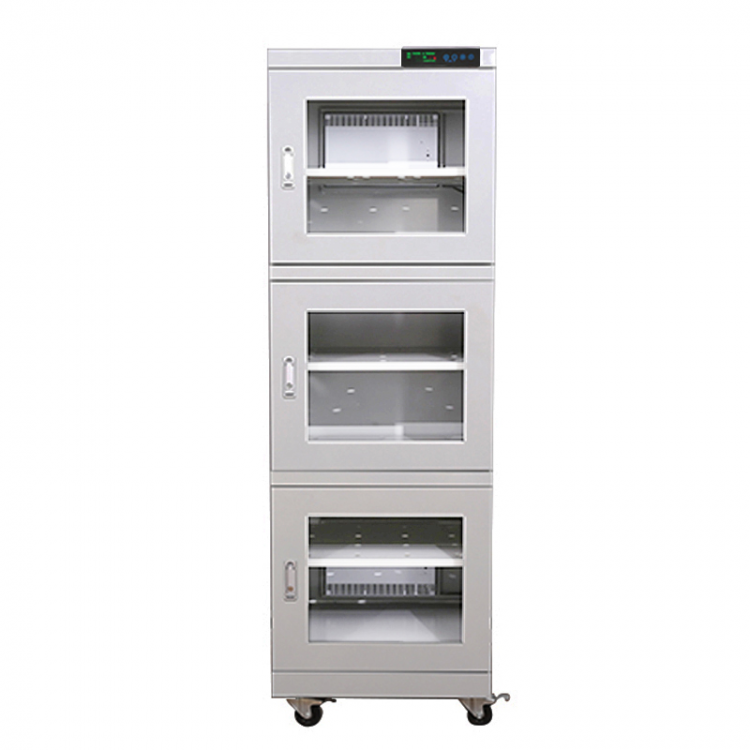

NMC733ProductPhysical ProductImage
