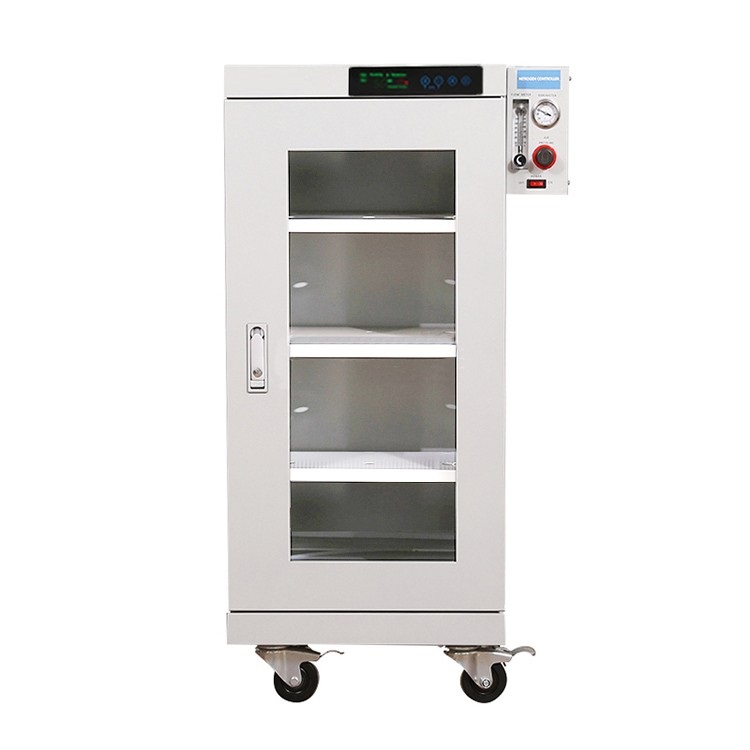

NC161 Nitrogen Cabinet_SupplyPro Co., Ltd._Suzhou Naguan Electronic Equipment Co., Ltd.

Please provide the Chinese content that needs to be translated into American English. Numbers	Product Name	Fully Automatic Regulator Nitrogen Cabinet
	Model	NC161
	Content Volume	160L
	External Dimensions WDHmm	W450D450H1010
	Internal Dimensions WDHmm	W405D420H840
	Dehumidification Range	1% to 50% RH (tested under no-load condition)）
	Control Panel	LED digital control, genuine U.S. brand Honeywell sensor
	Cabinet Material	1.0mm cold-rolled steel sheet, cabinet made with laser cutting, automatic punch press and CNC sheet metal equipment for production, high manufacturing precision, good cabinet airtightness. Cabinet surface treated with resin, electrostatic-proof powder coating. Fully automatic powder coating line for spraying
	Door	A single door. HarvestPlease provide the Chinese content that needs to be translated into American English.5mm explosion-proof toughened glass
	Shelf panel	Standard steel adjustable shelf panels, 3 pieces (shelves can be adjusted in position, quantity can be increased). Each panel can support a load of 50kg.
	Overall Antistatic	Static Dissipation Factor: 10⁶-10^8.Grounding chain
	Power Supply	220V/AC/50Hz, Average Power: 15W
	Product Safety and Maintainability	The entire product is designed with modular construction and error-proofing features, making it easy to troubleshoot. Customers can easily resolve issues over the phone without affecting the normal operation of the equipment.
	Technical Features	Variable flow throttle technology application，Adjustable nitrogen pressure and flow controller for container loading. Truly achieves the dual effects of rapid moisture removal and nitrogen conservation.Compared to traditional nitrogen cabinets, it saves more nitrogen.Energy-efficient and environmentally friendly. Also enhances safety in use while significantly reducing operational costs. Vertical jetting inside the box ensures more uniform distribution of nitrogen. Enhances the anti-oxidation properties of items.

Fully Automatic Nitrogen Cabinet Model Specifications and Dimensions Table:

Volume L	Model	Dimensions (mm) WDH (Width x Depth x Height)	Internal Dimensions (mm) WDH (Width x Depth x Height)	Number of shelves Piece	Door structure
160L	NC161	W450D450H1010	W405D420H840	3	A single door
240L	NC242	W600D450H1250	W555D420H1080	3	Two-panel up-and-down sliding doors
320L	NC322	W900D450H1010	W855D420H840	3	Two swinging doors, left and right opening
450L	NC452	W900D600H1010	W855D570H840	3	Two-panel swinging doors facing left and right
540L	NC542	W600D700H1485	W555D650H1315	3	Two-panel up-and-down swinging doors
730L	NC732	W600D700H1830	W555D650H1660	5	Two-panel swing doors
730L	NC733	W600D700H1830	W555D650H1660	5	Three top-hung and bottom-hinged swing doors
880L	NC884	W900D600H1860	W855D550H1680	5	Four swing doors opening in all directions (up, down, left, right)
1430L	NC1434	W1200D700H1830	W1155D650H1660	5	Four double doors that open up and down, as well as left and right
1430L	NC1436	W1200D700H1830	W1155D650H1660	5	6 swinging doors that open in all directions (up, down, left, right)

Selection Configuration:

1. LED lighting inside the box

2. Over-temperature and humidity alarm

3. Intelligent Storage and Retrieval Product Features

4. Main unit dehumidification feature

5.485 Computer Network Monitoring

6. Optional stainless steel for the cabinet and shelves.

7. Accept Custom Size Orders
