  • Product Description:

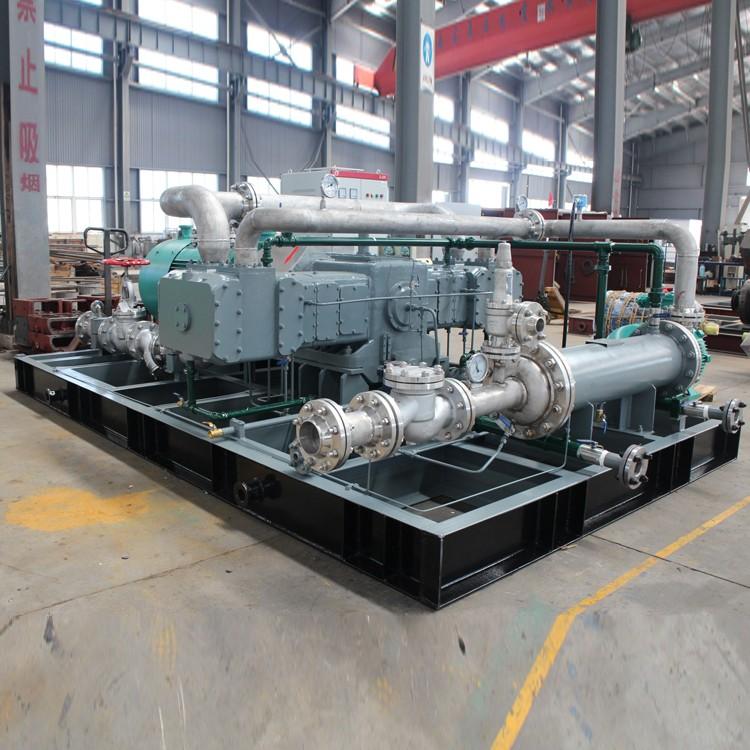

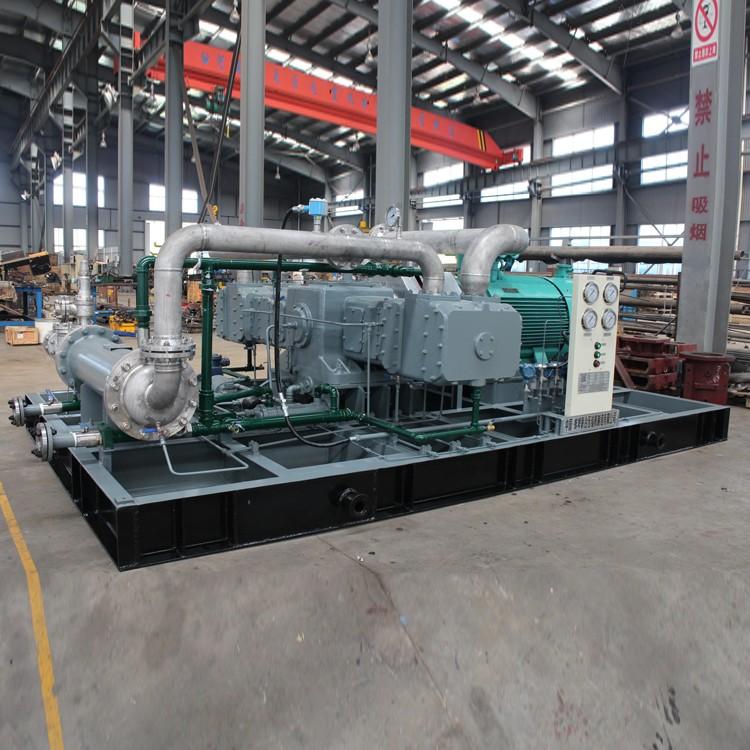

    Model: DW-6.8/(1.5-2.5)-33 Hydrogen Compressor


  • Equipment Specifications:

    Compressed Gas: Hydrogen

    Flow Rate: 6.8 m³/min

    Inlet Pressure: 0.15-0.25 MPa

    Exhaust Pressure: 3.3 MPa


  • Application Fields:

    Widely used in hydrogen production systems, benzene hydrogenation, tar hydrogenation, carbon 9 hydrogenation, catalytic cracking, and other processes.


Product Application: Widely used in hydrogen production systems, benzene hydrogenation, tar hydrogenation, and carbon hydrogenation.Hydrogenation and catalytic cracking processes.

Product Features:1. Our product features low noise, minimal vibration, compact structure, smooth operation, safety, reliability, and high automation levels. It can also be customized to include digital remote display and control systems as per customer requirements. 2. Equipped with low oil pressure, low water pressure, high temperature, low intake pressure, and high exhaust pressure alarm and shutdown functions, ensuring the compressor operates with enhanced reliability.

Structure Introduction: The unit consists of a compressor main unit, motor, coupling, flywheel, piping system, cooling system, electrical equipment, and auxiliary equipment.

Lubrication Method:1. Oil-Free 2. Oiled

Cooling Method:1. Water-Cooled 2. Air-Cooled (Select based on actual requirements)

Overall structural forms: Fixed, Mobile, Skid-mounted, Soundproof Cabin, etc.(Select according to actual requirements)
