  • Product Description:

    Primarily used for unloading, loading, tank transfer, waste gas recovery, and residual liquid recovery processes of process gases. Widely applicable for pressure boosting, pressure stabilization, and gas recovery in process flows.


  • Equipment Specifications:

    Compressed Gas: Carbon Monoxide

    Flow Rate: 2.5 m³/min

    Inlet Pressure: Atmospheric Pressure

    Exhaust Pressure: 12 MPa

Product Features:1. This series of compressors boasts features like low noise, minimal vibration, compact structure, stable operation, safety, reliability, and high automation. It can also be customized to include digital remote display and control systems as per customer requirements. 2. It comes with alarm and shutdown functions for low oil pressure, low water pressure, high temperature, low intake pressure, and high exhaust pressure, ensuring greater reliability in compressor operation.

Product Applications: Widely applicable for boost, pressure stabilization, power, and blow-off in process flows. Also, it can provide a stable power source for power plants, food industry, pharmaceuticals, and research institutions.

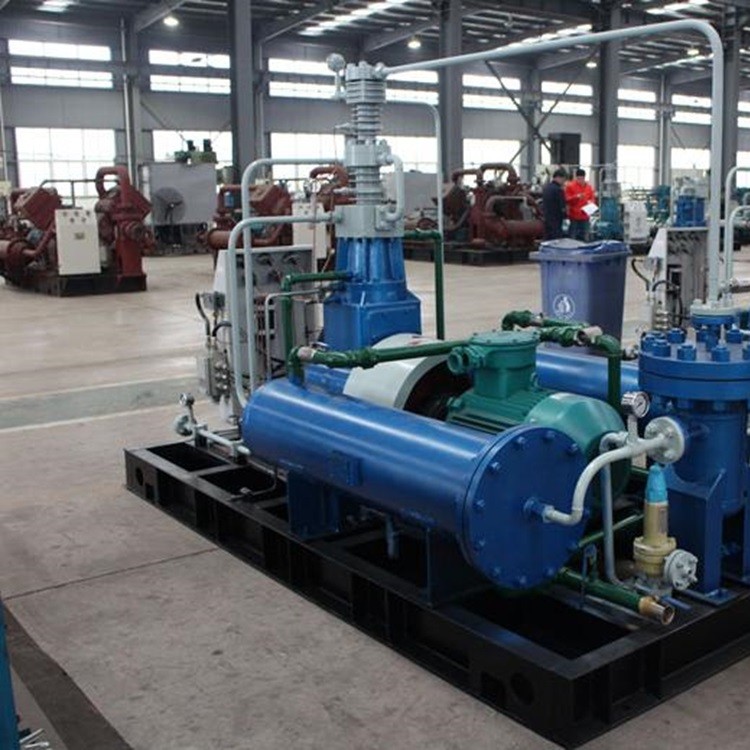

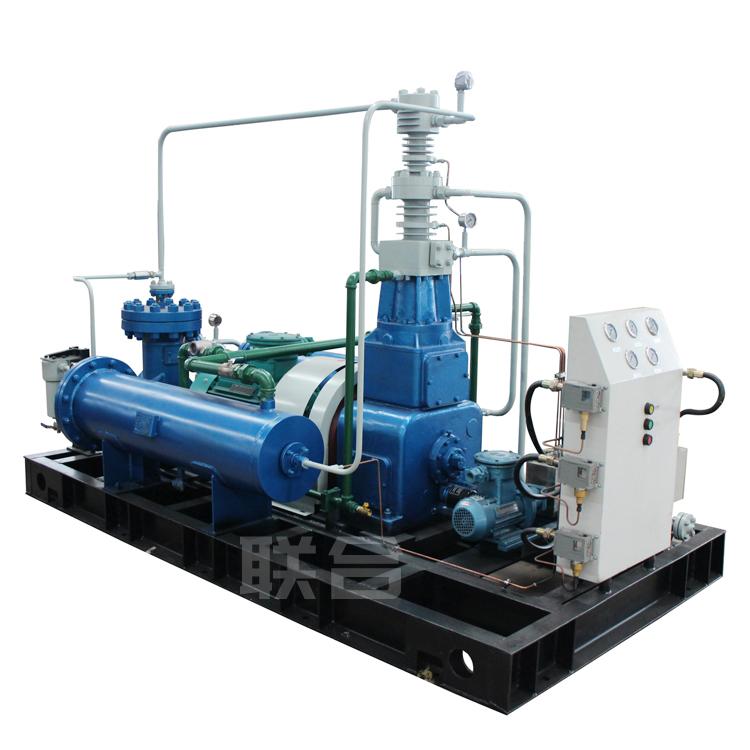

Structure Introduction: The unit consists of a compressor main engine, motor, coupling, flywheel, piping system, cooling system, electrical equipment, and auxiliary equipment.

Lubrication Method:1. Oil-Free 2. Oiled

Cooling Method:1. Water Cooling 2. Air Cooling 3. Mixed Cooling (Choose according to actual requirements)

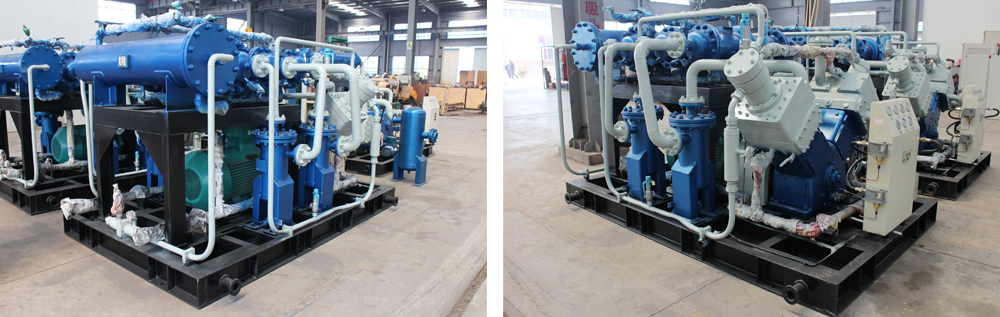

Overall structural types: Fixed, Mobile, Skid-Mounted, Soundproof Cabin, etc.(Select according to actual requirements)
