  • Product Description:

    Compressor Model: VF-0.32/(30-200)-250 Type CNG Compressor. Our company's substation compressors offer a wide range of discharge volumes: average flow rate of 300 to 1500 Nm3/h, with a complete structure including Z-type, V-type, and D-type compressors.


  • Equipment Specifications:

    Compressed Gas: Natural Gas

    Flow Rate: 0.32 m³/min

    Inlet Pressure: 3~20 MPa

    Exhaust Pressure: 25 MPa


Standard Station Compressor Parameters and Features: Import Range: 3.0~20.0 MPa (select according to actual requirements); Processing Capacity: 400 Nm3/h~2200 Nm3/h (select according to actual requirements); Basic components manufactured under the German DEMAG V series production license; Adopted segmented intake design technology; neatly skid-mounted, with noise-insulating housing, noise75@bd(A)Fully automatic and intelligent control, capable of unattended operation

Subsite compressor application: Natural gas input via pipelineA refueling station for CNG vehicles, where compressed natural gas is directly loaded or stored in a fixed gas bottle array (well) after in-station pressurization.

Compressor Performance Description: Utilizes our company's Austrian technologyLMF Company, Mannesmann Demag Germany technology - high product reliability. Advanced reciprocating compressor units. Vulnerable parts like gas valves and piston rings are made by the Austrian company, Holzbach, with a lifespan exceeding 8,000 hours. Soft start allows for frequent startups and shutdowns. Wide range of intake, suitable for various applications. Complete skid-mounted structure, low noise, easy urban installation, cost-effective. Siemens PLC control system, high degree of automation.

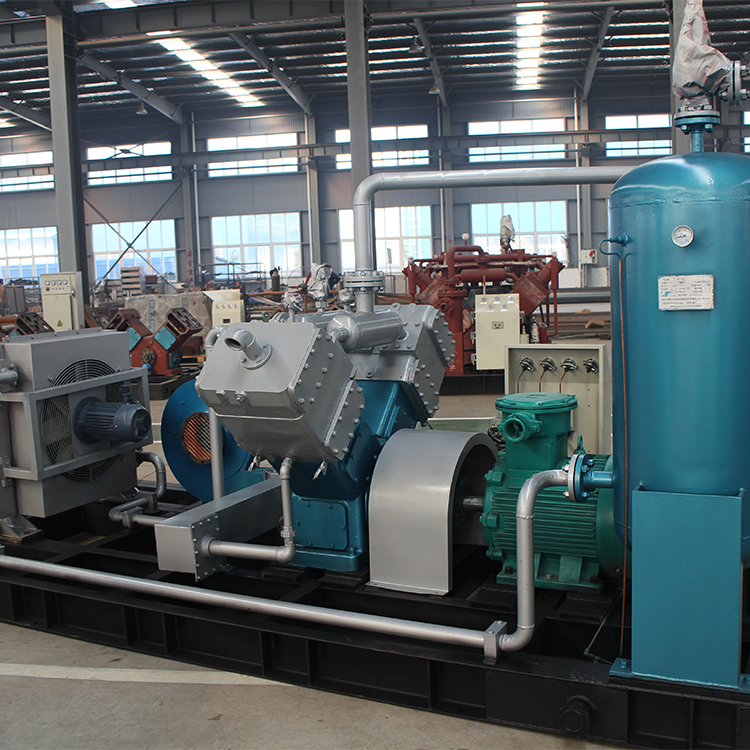

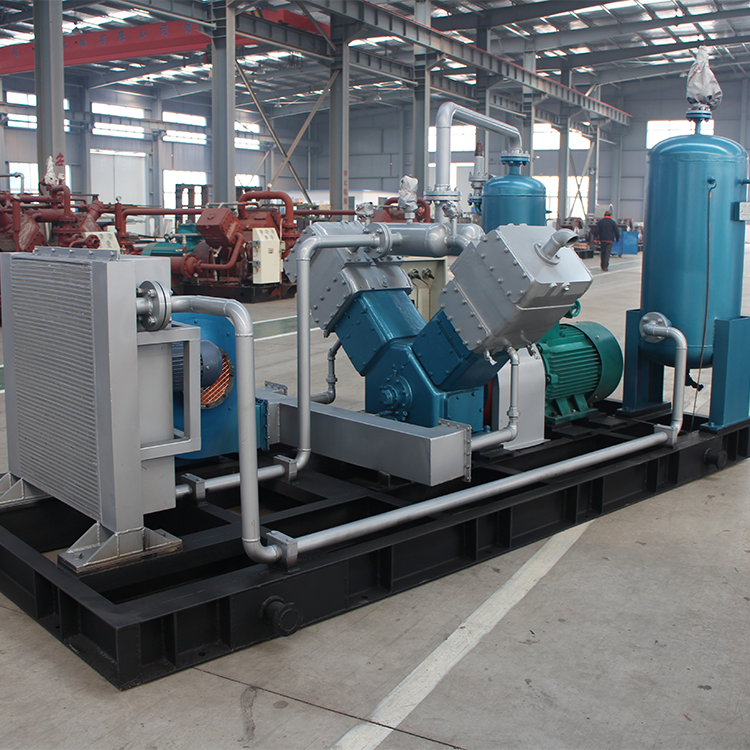

Structure Introduction: The compressor is a reciprocating compressor. It can be divided into two types: with base and without base. The entire machine is mainly composed of fixed and moving parts. The fixed parts include the body, middle body, gasoline cover, cylinder, cylinder base, and other components. The moving parts consist of the crankshaft, connecting rod, crosshead, piston, and air valve, and are equipped with pipelines and instrument control systems.

Cooling Method:1. Water-Cooled 2. Air-Cooled 3. Mixed Cooling (Choose according to actual needs)

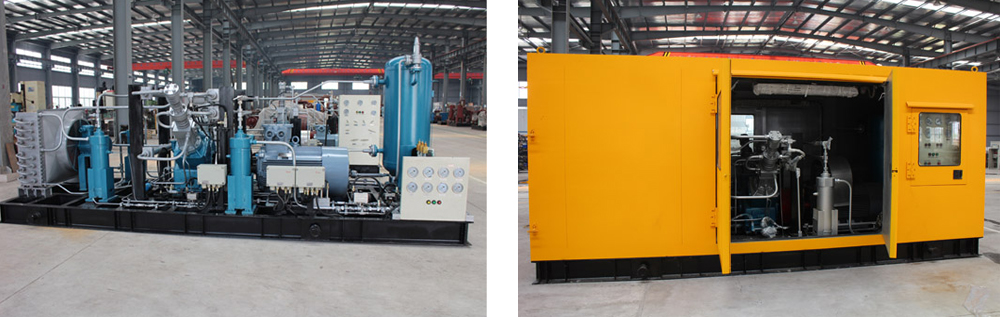

Overall structural forms: Fixed, Mobile, Skid-mounted, Soundproof Cabin(Select as per actual requirements)
