The LHSF vibratory solid-liquid separator developed by Lanhuan Company for the aquaculture industry is a continuous solid-liquid separator suitable for separating animal and poultry waste slurry, fruit juice extraction, and continuous dehydration equipment for screw pressing. Lanhuan has updated and replaced the product multiple times based on customer usage, and can be customized according to customer needs.

Working Principle:

The Vibrating Solid-Liquid Separator is designed based on the physical separation principle, utilizing a combination of vibration system, feeding extrusion system, and automatic flushing system to process wastewater and sludge from aquaculture. It is an effective method for treating and separating solid-liquid from the fecal effluent of livestock and poultry farms. The separated sludge can be directly packaged for transportation, and the subsequent treatment cost of the separated liquid is reduced.

Key Features:

The complete unit features compact design, low energy consumption, stable operation, high degree of braking, and good solid-liquid separation. After using this separator, the removal rate of solid suspended matter in wastewater can reach over 90%, the moisture content of the dried manure is less than 60%, and there will be no secondary pollution. The dried manure can be directly packaged and transported for further use in fertilizer production, or as fish feed, etc. It is suitable for use in harsh environments with high humidity and strong corrosiveness and is a粪便 solid-liquid separation equipment.

Technical Performance Specifications:

The first and second generation solid-liquid extrusion separators are still in production with a batch of orders, due to their wide range of applications: fruit juice extractors, waste pressers, spiral dewatering machines, sludge extruders, and equipment requiring extrusion for high-moisture materials. Processing capacity is customizable.

Standard:

The entire unit's waste fluid passages are well-sealed, with no dripping or leakage.

(2) The upper liquid storage box is connected with a reliable device and directly interfaces with the vibration screen.

(3) The vibrator is connected to the sieve frame with a reliable anti-loosening device.

(4) The sieve box and separation unit are equipped with vibration isolation devices.

(5) The spiral blades of the slag discharge screw propeller are cold-rolled from stainless steel in one process, offering stable and durable tensile properties compared to the industry standard. The gap between the blades and the housing is no more than 2mm, and no friction occurs. The two bearings of the screw propeller (self-aligning) are equipped with sealing devices on the inner side.

(6) The upper part of the propeller's drive chain is tight, and a tension wheel is set at the lower part.

(7) The entire machine's external transmission mechanism is equipped with a protective cover.

(8) The working temperature of the roller bearing does not exceed 70°C, and the temperature rise is no more than 30°C.

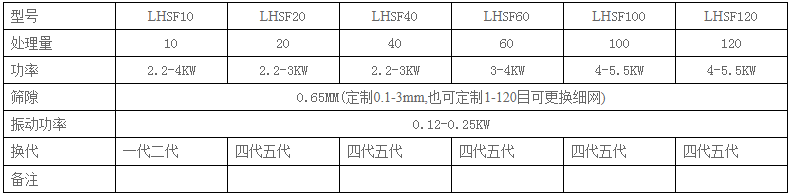

(9) Technical Performance Parameters:

The Vibrating Solid-Liquid Separator is equipped with comprehensive setting functions and strong specificity. The whole machine design integrates the slurry pump system, vibration system, slag conveying and compression system, and automatic flushing system organically, enhancing the wastewater treatment capacity and effectiveness, and facilitating the dewatering of fecal sludge for easy utilization. Features:

1. Designed for vibration separation, with fast solid-liquid separation and high processing capacity. The screen aperture can be selected based on the varying sludge content, water usage conditions, and specific requirements of each pig farm, as well as the different operational environments and user needs.

2. The design and material selection of the vibrating screen mesh and support columns feature unique aspects, making them suitable for use in harsh environments with strong corrosiveness and high humidity, while also ensuring minimal noise operation.

3. Utilizing a spiral slag extrusion system, the separated manure sludge undergoes secondary extrusion to reduce its water content. Before discharge, a slag effluent outlet is installed to ensure the sludge's moisture content is below 60%. The dry-wet adjustment is possible based on the customer's breeding and cleaning mode. This ensures no leakage during sludge packaging, transportation, and use, eliminating secondary environmental pollution with high performance. The sludge moisture content regulator at the sludge outlet can adjust the sludge's moisture content, achieving optimal fermentation humidity.

4. Designed an automatic cleaning system that resolves issues of faeces blocking the screen and internal residue after shutdown, ensuring the machine operates normally and continuously.

5. The overall shell is made of stainless steel plate, featuring a simple and aesthetic design, occupying minimal space, and ensuring a clean working environment.

Based on the latest technological reports, product inspection reports, user quality reports, and comparisons with similar products domestically and internationally, this product employs vibration separation, spiral slag conveyance extrusion dewatering technology. It integrates the vibration, slag conveying, dewatering, and automatic flushing systems organically, featuring a novel structure. It boasts improved production efficiency and separation effectiveness, stable operation, and ease of operation. The solid fecal sludge after separation has a moisture content of less than 60%, and the removal rate of suspended solids and organics in wastewater exceeds 90%.
