Product Introduction

Due to heavy sedimentation at the riverbed, a significant accumulation of algae on the water surface has blocked the natural exchange of air and water, resulting in severe hypoxia at the bottom, leading to fish mortality, the extinction of aquatic plants, and the loss of self-purification ability. Photovoltaic microporous aeration machines, powered by photovoltaic energy, drive fans to increase dissolved oxygen in the deep water layers, alleviate stratification, gradually mineralize the bottom sediment, and restore the water's self-purification capacity. They maintain the water's metabolism with solar energy over the long term.

Product is mainly used for river aeration, with better diffusion capability than impeller-type aeration machines. It employs a gas supply main pipe and a leading gas channel, along with a rubber membrane that allows for micro-porous aeration. It features a simple structure, high oxygen utilization rate, reliable performance, non-blocking air holes, no backflow of wastewater, uniform circumferential stress, long lifespan, easy installation and maintenance, and low system cost. It is currently a more economical and reasonable aeration machine among all aeration devices.

Product Structure:

·Solar Micro-porous Aeration MachinePrimarily composed of photovoltaic panel components, high-pressure blower aeration machines, microporous release devices, battery packs, and control systems. The microporous release devices utilize fixed microporous aeration disks or microporous aeration tubes to release tiny bubbles, extending the gas's residence time in water, which is beneficial for oxygen transfer and increases the oxygen saturation rate, thereby enhancing aeration efficiency.

● Utilizing a tubular structure, the tension on the membrane is significantly reduced compared to disk-type aeration.

● Employed leading-edge trench structure, aeration components have no buoyancy.

● The film uses natural rubber and anti-aging formula, ensuring long-lasting use.

● Utilizes stainless steel fasteners for secure connections, minimizing air leakage and easy disassembly.

Operating Principle:

Photovoltaic power drives the wind turbine to rotate at high speed, compressing air into a micron-sized release device, allowing the water to thoroughly mix with tiny bubbles, forming an air-water mixture. This creates an upward water current using the bubbles, controlling the accumulation of sediments and sludge, and maintaining a uniform dissolved oxygen level throughout the water body. By increasing oxygen levels, it promotes aerobic decomposition of pollutants in the water, effectively preventing anaerobic digestion, controlling the smell of decay, and establishing an ecological balance for self-purification of the water body in the later stage.

Features:

High oxygen utilization, even gas distribution, no clogging.

●Long service life, no condensation inside the air tube, stable and reliable performance;

●Simple installation structure, air tube without buoyancy, easy to use design

Solar-powered, no need for electricity connection, zero operational costs.

Application Range:

Reservoirs, rivers, lakes, streams, ponds, and dead lakes exhibit severe hypoxia in their deeper layers.Water with high nutrient sediment contentIncrease dissolved oxygen levels for calcification, reduce sediment.

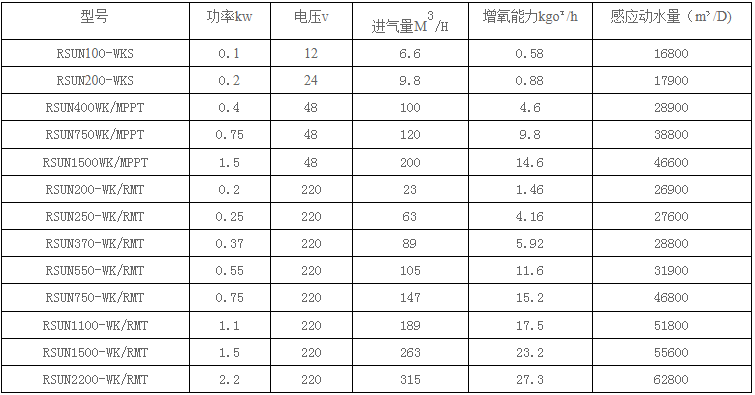

Specification and Main Performance Parameters:

Installation Method

1. Integrated Cable Fastening 2. Integrated Anchor Fastening 3. Integrated Piling Fastening 4. Integrated Cantilever Fastening 5. Disassembled Fastening
