Product Details

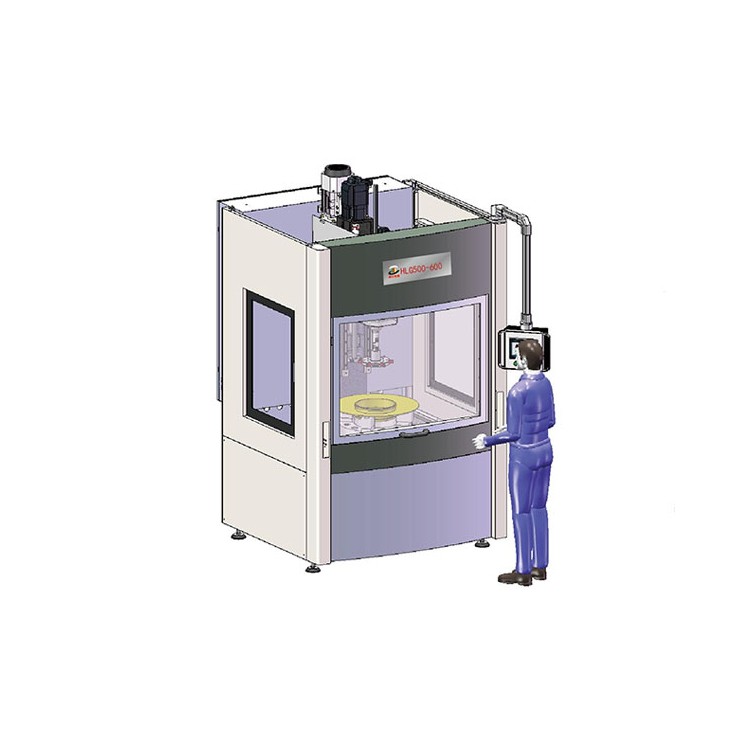

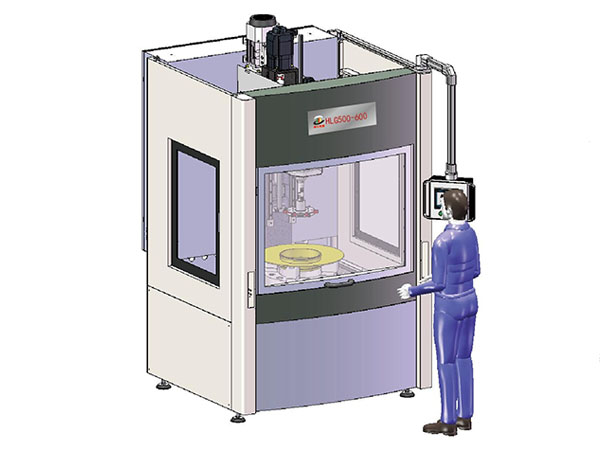

High-Precision Honing and Boring Equipment Manufacturer
产品Price Negotiable
最小起订Quantity： 供货总Quantity：
Serial Number Project Name Parameters 1 Structural form Number of shaft ends: 1 shaft Workstation: 1 station Worktop Size: 1590mm*1030mm Workbench Load: 700kg 2 Spindle Mechanism Control Method: Variable Frequency Motor + Synchronous Belt Spindle Motor: 5.5KW Machining hole diameter range: Φ100-Φ500mm (optional sizes outside this range available) Transmission range: 50-600 rpm (Variable speed) 3 Stroke mechanism Control Method: Servo Motor + Ball Screw Stroke Speed MAX: 28m/min Stroke Length MAX: 600mm 4 Feeding mechanism Control Method: Servo Motor + Ball Screw Feeding Type: Constant Feed Rate Feed Resolution: 0.1um 5 Other Equipment Weight: Approximately 5.5 tons Equipment Dimensions (Length x Width x Height): 1650x1600x2500 Noise Standard: Under standard factory conditions, the continuous load peak is less than 75 decibels. Power Supply: Three-phase AC: 380V 50Hz Environmental Conditions: Temperature -10~+45°C
Temperature < 72%
