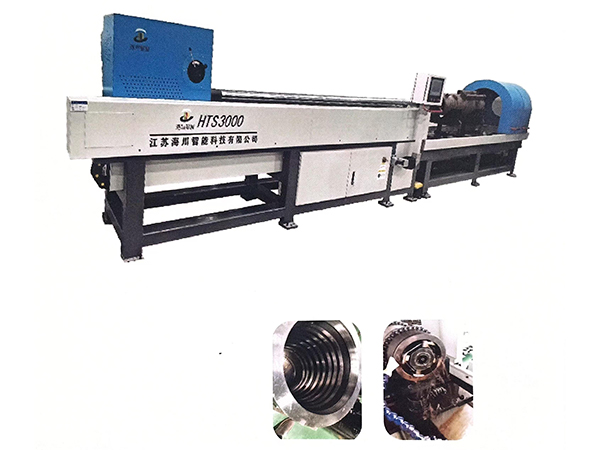

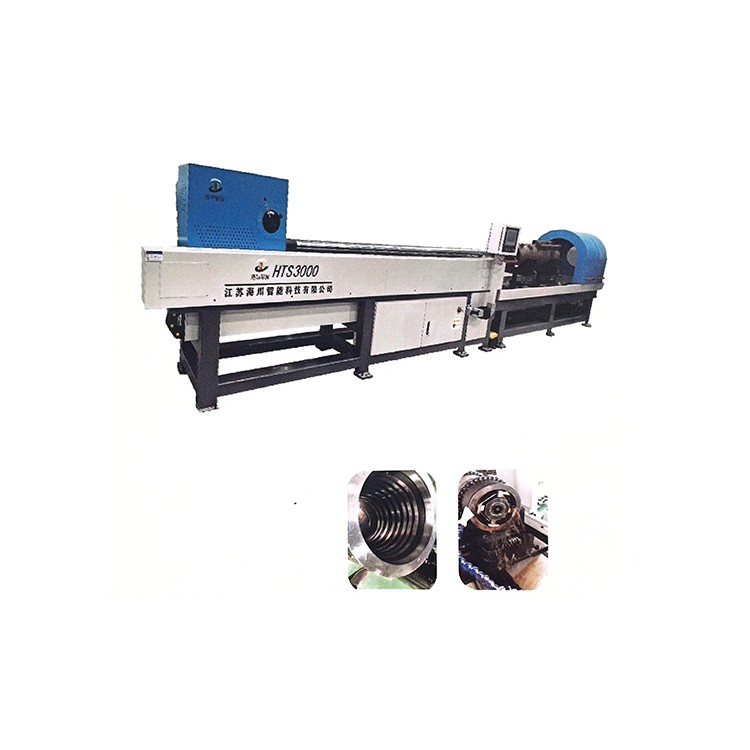

HTS3000 High-Speed Horizontal Deep Hole Honing Machine

I. Equipment Specifications

Section II: Key Description of Equipment

1. Equipped with a "Siemens" control system and featuring a touch screen, it allows for flexible adjustment of stroke positions, spindle speeds, and feed pressures, ensuring superior control over the inner hole precision.

2. The machine tool is equipped with a complete cooling and filtration system, mainly composed of a "magnetic separator + paper tape filter" with a filtration level of ≤30um.

3. The equipment features short stroke and dwell stroke functions, facilitating the correction of hole shapes.

4. The cutting head features an automatic expansion and contraction system, with adjustable expansion pressure.

5. Processing methods include switchable "fixed quantity" and "fixed pressure" options.

6. Equipped with a shift transmission, the device allows for easy adjustment of spindle torque and speed based on the hole diameter.

7. The equipment features an NC-controlled overload protection system.

8. The equipment features an automatic compensation system for abrasive stone wear.

HTS Series High-Precision Horizontal Deep Hole Honing Machines, high efficiency and precision, with wide applicability.

Five standard configurations available:

HTS2000: Processed Length 2000mm

HTS4000: Processed Length 4000mm

HTS5000: Processed Length 5000mm

HTS8000: Processed Length 8000mm

HTS10000: Processed Length 10,000mm
