Product Details

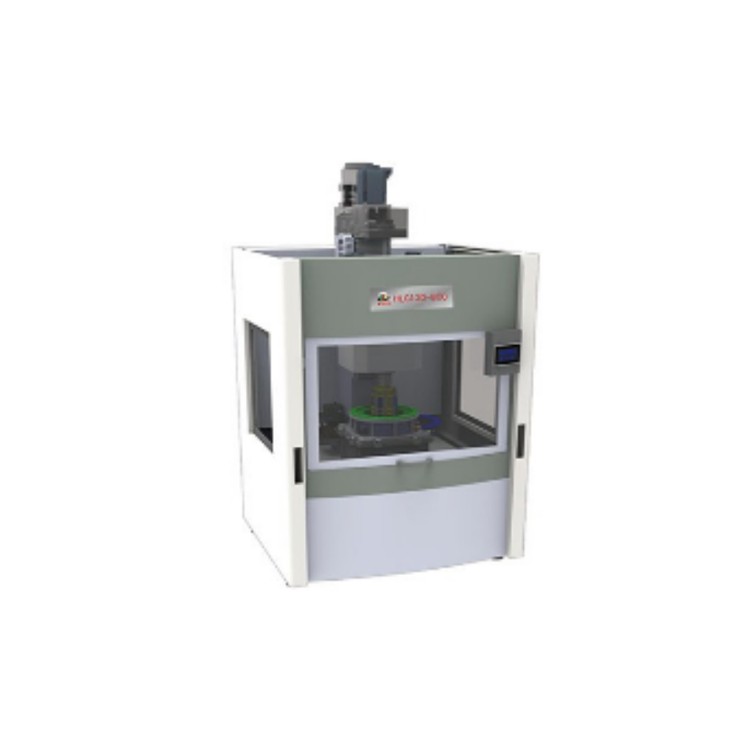

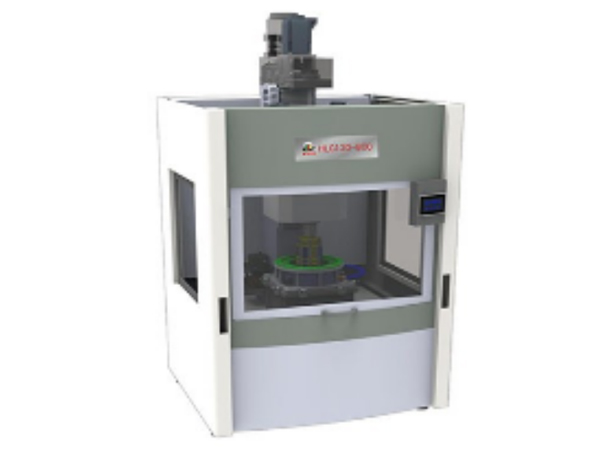

High-Precision Honing and Boring Equipment Manufacturer
产品Price Negotiable
最小起订Quantity： 供货总Quantity：
I. Equipment Specifications Section II: Equipment Processing Precision 1. Roundness: ≤10um/Φ200mm； 2. Cylindericity: ≤15um/300mm 3. Roughness: ≤Ra0.2μm. Section 3: Key Equipment Description All machine tool base components are made of high-quality cast iron with high strength and undergo overall stress relief treatment. 2. Advanced touch screen control panel, easy and convenient to adjust settings, allowing operators to handle machine tools more intuitively. 3. Utilizing the "Siemens" control system, precise control ensures excellent shape accuracy, pattern angle, surface roughness, and dimensional consistency. 4. The machine tool is equipped with a complete cooling and filtering system, mainly consisting of "magnetic separator + belt filter + oil cooler," with a filtration accuracy of ≤20um. 5. The machine tool is equipped with a centralized automatic lubrication system, providing a continuous supply of lubricant to all functional components.
Serial Number Project Name Parameters 1 Structural form Axle Heads: 1 shaft Workstation: 2 workstations Workbench Surface Size: 1250mm*900mm Workbench Load: 500kg 2 Spindle Mechanism Control Method: Variable Frequency Motor + Synchronous Belt Spindle Motor: 4KW Machining hole diameter range: Φ120-Φ300mm (options available outside this range) Transmission Range: 50-600 rpm (Variable Speed) 3 Stroke mechanism Control Method: Servo Motor + Ball Screw Stroke Speed MAX: 28m/min Stroke Length MAX: 800/1000mm 4 Feeding mechanism Control Method: Servo Motor + Ball Screw Feeding Type: Constant Feed Rate Feeding Resolution: 0.1um 5 Other Equipment Weight: Approximately 6.5 tons Equipment Dimensions (Length x Width x Height): 2060x1780x3230 Noise Standard: Under standard factory conditions, the continuous loading peak is less than 75 decibels. Power Supply: Three-phase AC: 380V 50Hz Environmental Conditions: Temperature -10~+45°C
Temperature < 72%
