Product Details
High-Precision Honing and Boring Equipment Manufacturer
产品Price Negotiable
最小起订Quantity： 供货总Quantity：

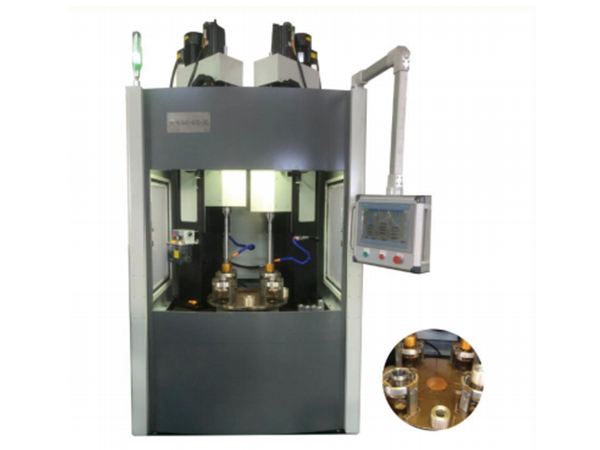

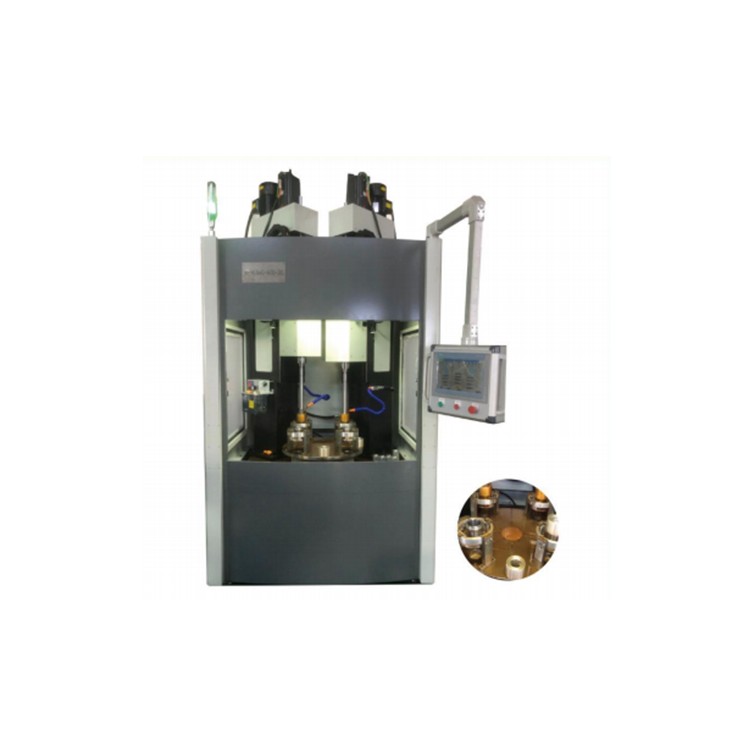

I. Equipment Specifications Section 2: Equipment Processing Accuracy Circularity: ≤1um 2. Cylindericity: ≤2um/100mm 3. Roughness: ≤Ra0.1μm. III. Key Equipment Description All machine tool basic components are made of high-quality cast iron with high strength and undergo overall stress relief treatment. 2. Advanced touch screen control panel, with simple and convenient settings adjustments, allowing operators to handle machine tools more intuitively. 3. Utilizing a "Siemens" control system, precise control ensures excellent shape accuracy, pattern angle, surface roughness, and dimensional consistency. 4. The machine tool is equipped with a complete cooling filtration system, primarily consisting of a "magnetic separator + belt filter + oil cooler," with a filtration accuracy of ≤20um. 5. The machine tool is equipped with a centralized automatic lubrication system, providing a continuous supply of lubricant to all functional components.
Serial Number Project Name Parameters 1 Structural form Number of shaft ends: 2-axle Workstation: 3-station Workbench Surface Size: 1790mm*1340mm Workbench Capacity: 1000kg 2 Spindle Mechanism Control Method: Variable Frequency Motor + Synchronous Belt Spindle Motor: 2.2KW Machining hole diameter range: Φ2-Φ60mm (optional in range beyond) Transmission Range: 50-3,000 rpm (variable speed) 3 Stroke mechanism Control Method: Servo Motor + Ball Screw Stroke Speed MAX: 40m/min Stroke Length MAX: 350mm 4 Feeding mechanism Control Method: Servo Motor + Ball Screw Feeding Type: Constant Feed Rate Feeding resolution: 0.1um 5 Other Equipment Weight: Approximately 4.5 tons Equipment dimensions (Length x Width x Height): 2060x1780x2530 Noise Standard: Under standard factory conditions, continuous load peak is less than 75 decibels. Power Supply: Three-phase AC: 380V 50Hz Environmental Conditions: Temperature: -10~+45°C
Temperature < 72%
