Product Details

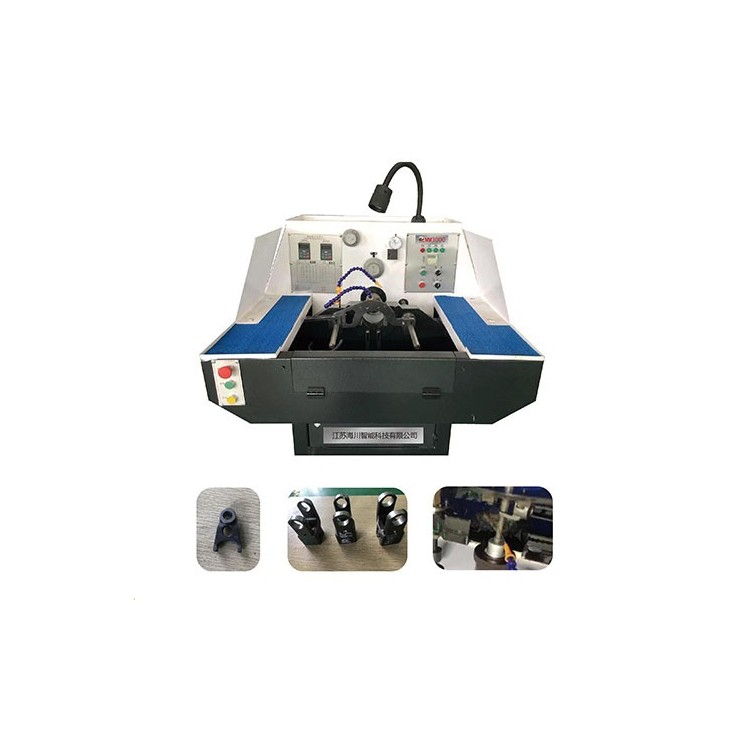

High-Precision Honing and Boring Equipment Manufacturer
产品Price Negotiable
最小起订Quantity： 供货总Quantity：
I. Equipment Specifications 1. Roundness: 0.004mm 2. Straightness: 0.006mm 3. Roughness: sRa 0.2 µm. Section 3: Key Equipment Description A machining range from Φ3 to Φ120mm. 2. NSK main bearings, guaranteed reliability and stability. 3. Dual-frequency variable-speed, freely adjust the spindle speed and stroke speed. 4. Features manual, zero, and time dimension control functions; zero-line honing utilizes electric induction technology, and includes manual unlocking and zero-point adjustment devices. 5. The equipment is capable of honing through-holes and blind holes.Machining Hole Size Range Φ3-Φ120mm Depth of Processing 0-280mm (optional 400mm) Spindle Speed 250-3000 RPM variable-speed adjustment Main Engine 1.5KW, 3-100Hz Variable Frequency Motor Stroke Length 0-170 Stroke speed 80-310 times/minute variable frequency stepless adjustment Stroke motor 0.75KW Main shaft and stroke braking Variable frequency inverter electronic braking Oil Pump Motor 0.12KW Fuel Tank Capacity 50L Machine Tool Weight 486KG Dimensions 1000*1390*1400mm Power Supply 380V, 50Hz, 3-phase 4-wire
Section II: Equipment Processing Precision
