The HC1009 (Protective Model) Frame-Type Concrete 3D Printer is an advanced intelligent construction equipment, designed for precise printing of controllable and reproducible building components, suitable for cement mortar, concrete, geopolymers, and other cement-based composite materials. This equipment integrates multidisciplinary technologies such as information technology, precision machinery, and materials science, consisting of the printer's main frame, control system, mixing and conveying system, LCD display, and control software. It is well-designed, finely crafted, feature-rich, and easy to operate.
Technical Features
Printable cementitious composite materials, including cement mortar, concrete, ground polymer, etc.
The equipment supports operations such as resuming from a breakpoint and pausing printing.
X, Y, Z axis limit alarm and brake lock function, to protect the equipment.
The aircraft frame is made from high-quality materials, ensuring strong stability and reliable printing throughout the process.
High stiffness linear motion module with low friction coefficient, high transmission efficiency, high load-bearing capacity, and excellent performance.
The servo motor utilizes high-torque synchronous belt drive, ensuring stable and accurate transmission.
Conveyor System: HC1009-SS, featuring stepless speed control.
The system control software features fast response, a simple interface, and easy operation.
Self-developed 3D model slicing and printing path planning software, supporting various area filling schemes (concentric circles, zigzag loops, straight lines, grids), etc.; supports DXF file polygon and line planning for printing paths; supports multi-model, layered grouping slicing for different printing scenarios; features optimized printing paths (thinning, thickening, even distribution), resulting in excellent print quality.
The mixing system features a dustproof cover, and the printing main unit is equipped with self-sealing protective panels on both sides, ensuring a safe and tidy printing process.
Application Fields
3D printed beams, columns, plates, walls, and other construction components.

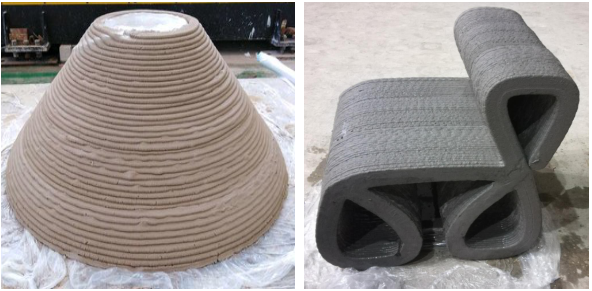

3D printed custom molds, architectural models, garden landscapes, etc.
Technical Specifications
Application Cases
