Key Features of This Machining Center:

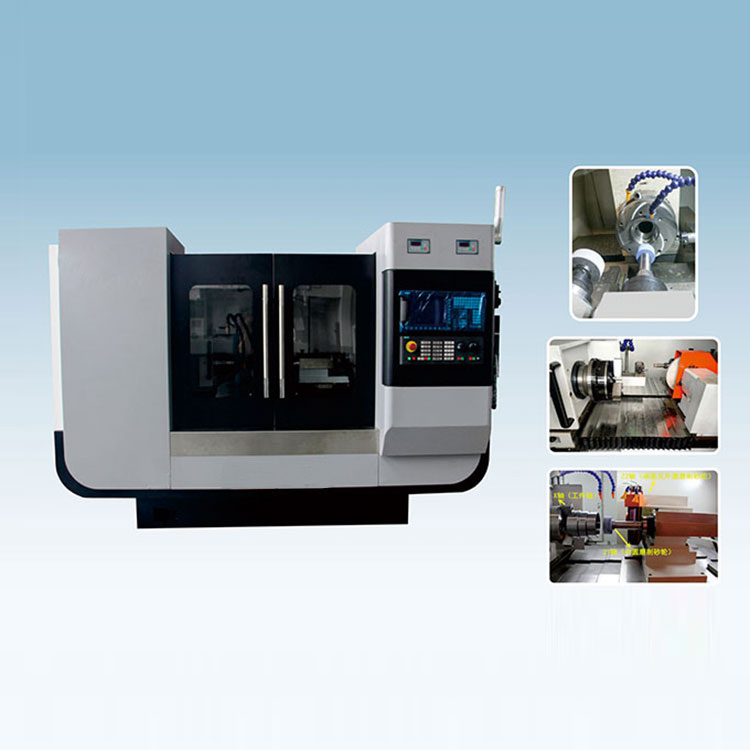

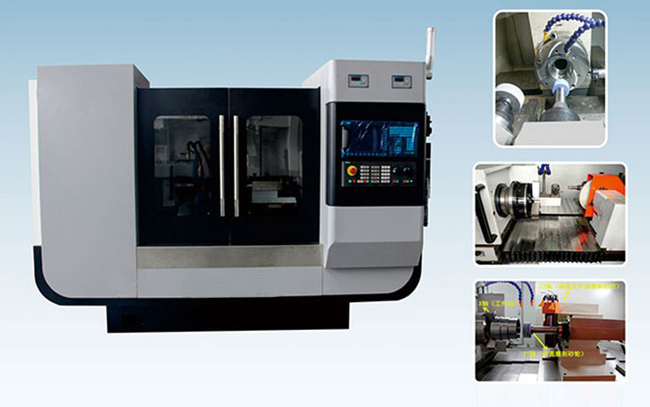

★ This machine tool is a two-axis CNC composite grinder (X feed, Z1 grinding wheel, Z2 grinding wheel shaft), primarily used for grinding internal cylindrical holes, internal tapered holes, step holes, internal ends, outer cylindrical surfaces, and outer ends. The grinding cycles are all automatically completed (features include automatic feed, retract, rough and fine grinding; automatic wheel correction, automatic compensation, etc.).

★ The machine tool employs a workpiece feeding structure with the worktable (grinding wheel bracket) moving left and right. Both the worktable and grinding wheel bracket have rolling linear guides, all driven by servo motors and ball screw movements. The rotating speeds of the workpiece and grinding wheel spindles are controlled by variable-frequency drives for stepless speed adjustment. The workpiece clamping is a hydraulic power chuck, and other matching fixtures can be configured according to the special characteristics of the customer's workpiece.

Machine tools are equipped with a fully enclosed protective cover and a front-mounted rotating cover.


Item Number Name MKF21201 Grinding Internal Diameter Range 20-200 mm 2 Grinding Internal Depth 200 mm 3 Grinding External Diameter Range 30-300 mm 4 Grinding External Length 200 mm 5 Workpiece Motor Power 2.2 kW 6 X-axis Servo Motor Power 11 Nm 7 Z1, Z2-axis Servo Motor Power 11 Nm 8 Grinding Wheel 1 Motor Power 4 kW 9 Grinding Wheel 2 Motor Power 7-22 kW 10 Grinding Wheel 1 Speed 2800 (r/min) Variable Speed 11 Grinding Wheel 2 Speed 1000-24000 (r/min) Variable Speed 12 Workpiece Speed 0-600 (r/min) Variable Speed 13 X, Z1, Z2-axis Positioning Accuracy 5 μm 14 X, Z1, Z2-axis Repeatability 2 μm 15 X-axis Travel 550 mm 16 Z1, Z2-axis Travel 450 mm 17 X-axis Speed 10 m/min 18 Z1, Z2-axis Speed 10 m/min 19 Machine Dimensions 3000×2800×2700 mm 20 Machine Weight 6800 kg 21 Rated Power (approx.) 28 kW Machining Accuracy 1 Internal Diameter, External Diameter Roundness 2 μm 2 Internal Diameter, External Diameter Cylinder 3 μm 3 Internal Diameter, External Diameter Concentricity 3 μm 4 Internal Diameter, External Diameter Surface Roughness Ra0.4 μm 5 Internal Diameter, External Diameter Perpendicularity to End Face 4 μm
