Key Features of This Machining Center

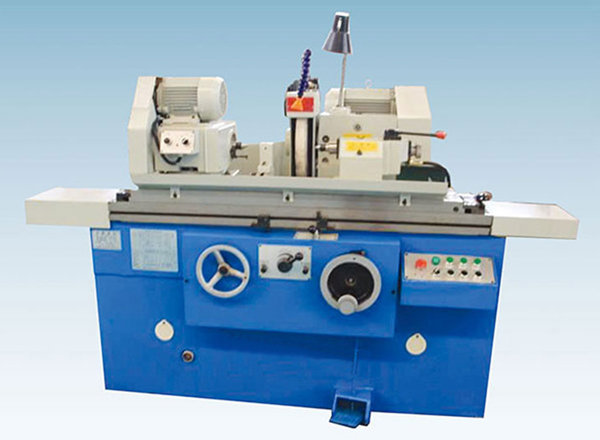

★ This machine tool is used for grinding the outer cylindrical and conical surfaces, as well as the axial end faces.

The abrasive wheel stand features horizontal feed movement with options for hydraulic quick movement, automatic cycle feeding, and manual feeding.

★ The grinding wheel bracket uses a flat-V type rolling sliding guide rail.


Name

Parameters

Grinding diameter range

6-200mm

Grinding Length

500mm

750mm

Top quality spacers

520mm

760mm

Center Height

125mm

Grinding workpiece weight

50kg

80kg

Machine Tool Dimensions (Length x Width x Height)

2000×1420×1600mm

2500×1420×1600mm

Machine tool weight

2400kg

3200kg

Workbench mobility

550mm

780mm

Table reciprocating speed

100-4000mm/min

Rotate to the upper workbench angle

-3 + 7°

Grinding Wheel Size

Φ400×40×Φ203mm

Grinding Wheel Line Speed

<35m/s

Grinding wheel shaft speed

1780r/min

Quick sanding table movement amount

20mm

Grinding wheel stand travel

150mm

One turn of the handwheel moves the sanding frame.

1mm

Fine-tune the movement of the grinding wheel holder on the micrometer caliper.

0.005mm

Spindle Speed

60.85.230.120.170.460 r/min

Headstock Rotation

-30~90°

Morse taper for the main spindle boring

Mohs hardness 3

Top-grade sleeve movement

25

Top-quality sleeve with Morse taper

Mohs hardness 3

Oil Pump Flow Rate

16 L/min

Hydraulic System Pressure

0.8-lMpa

Cooling pump flow rate

25 L/min

Grinding wheel stand motor power

4kw

Headstock motor power

0.25/0.37kw

Oil Pump Motor Power

0.75kw

Cooling pump motor power

0.9kw

Processing Accuracy

Circularity

0.0015mm

Cylindericity

0.002mm

Surface roughness

Ra0.32um
